Lower Instrument Panel: Reassembly

  1. INSTALL STEREO JACK ADAPTER ASSEMBLY
    1. Attach the 2 claws to install the stereo jack adapter.

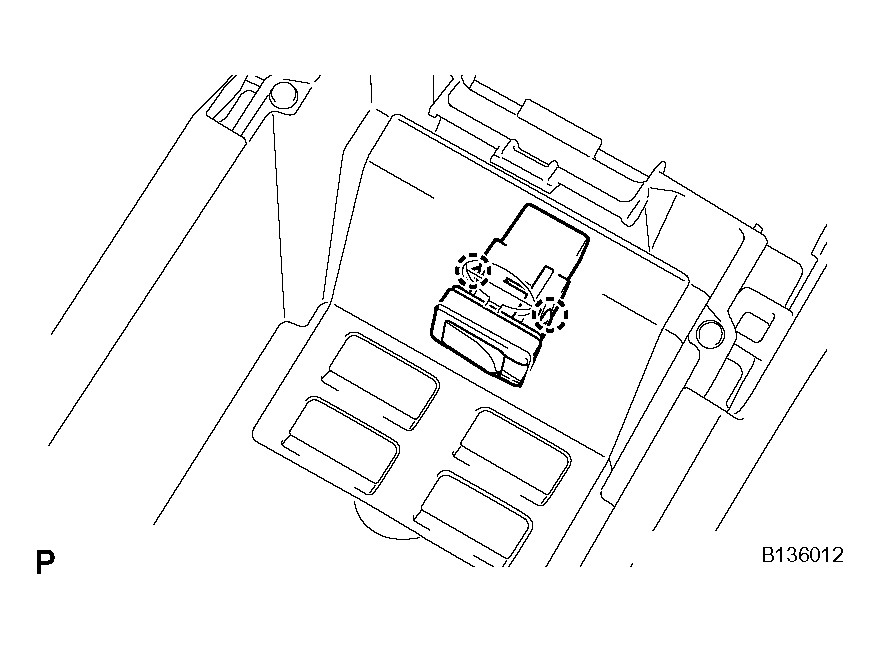

      Fig 1: Installing Stereo Jack Adapter Assembly
      G04491568Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY
