Power Outlet Socket: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE SWITCH BASE (See step 15 under  REMOVAL  )
  3. REMOVE POWER OUTLET SOCKET ASSEMBLY
    1. Rotate the socket to disengage the notch.
      Fig 1: Removing Power Outlet Socket Assembly
      G04491351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull out the socket halfway and rotate the socket until its protrusion is aligned with the groove of the cover.
    3. Remove the socket from the cover.

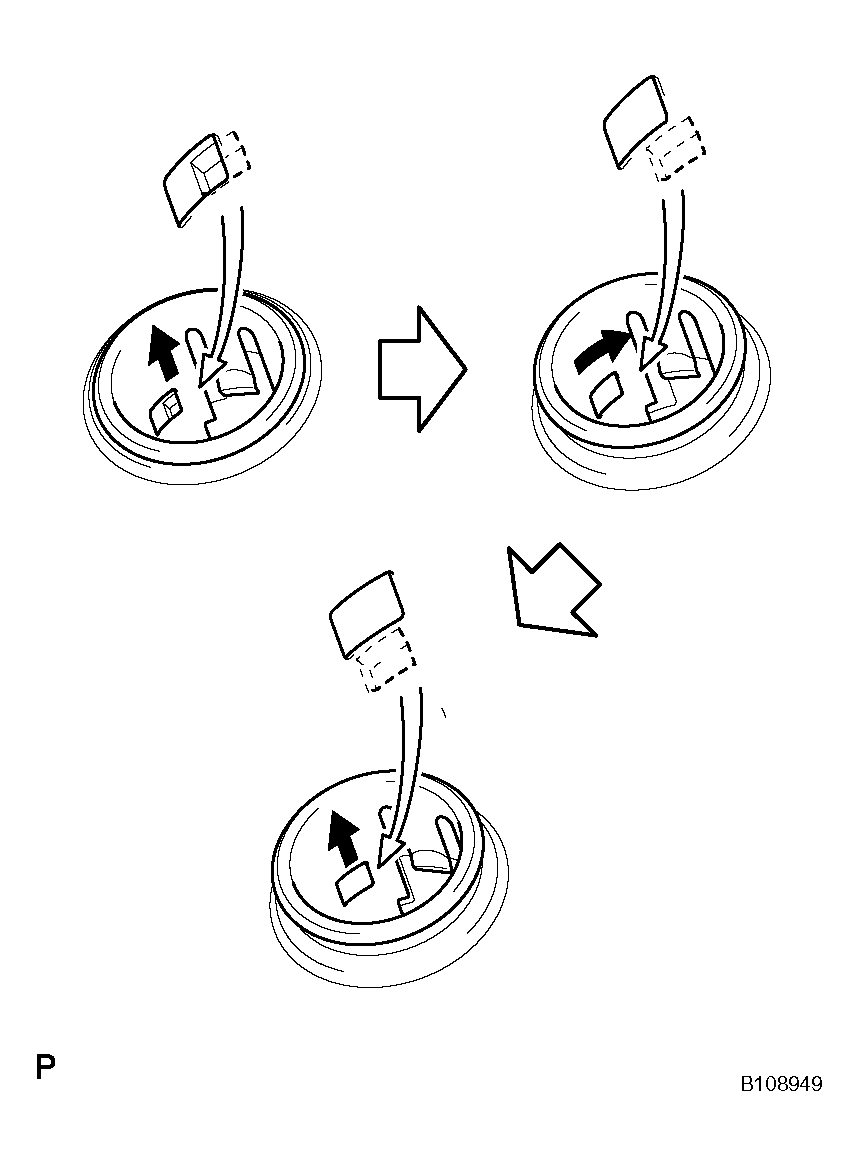

      Fig 2: Removing Socket From Cover
      G04491352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
