Rear Wiper and Washer System: Notes

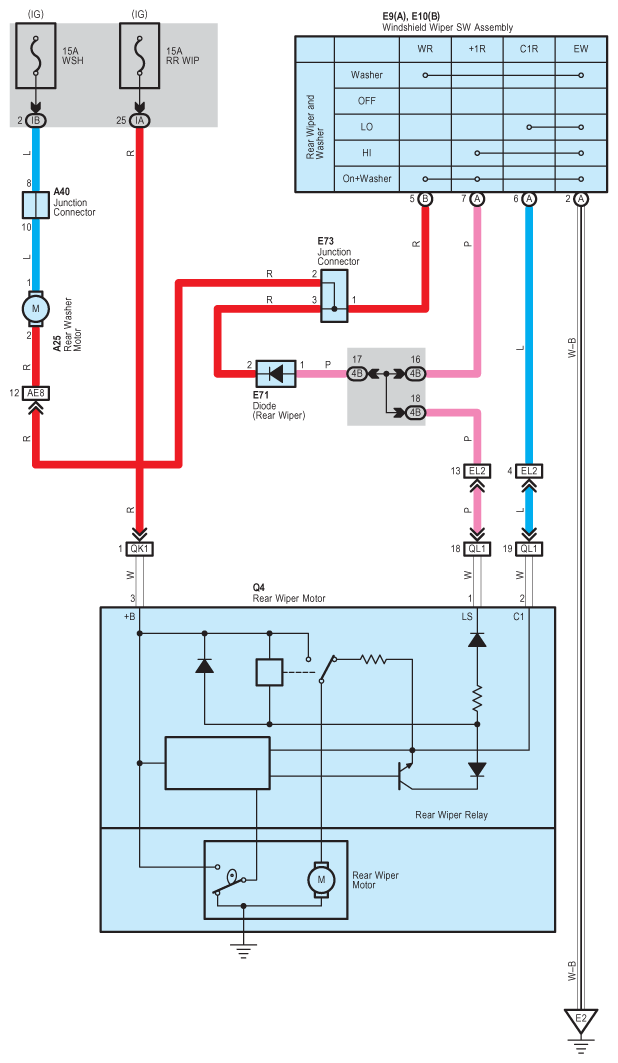

Fig 1: Rear Wiper And Washer - Circuit Diagram

G07577379

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
