Cooling Fan System for 2GR-FE: Notes

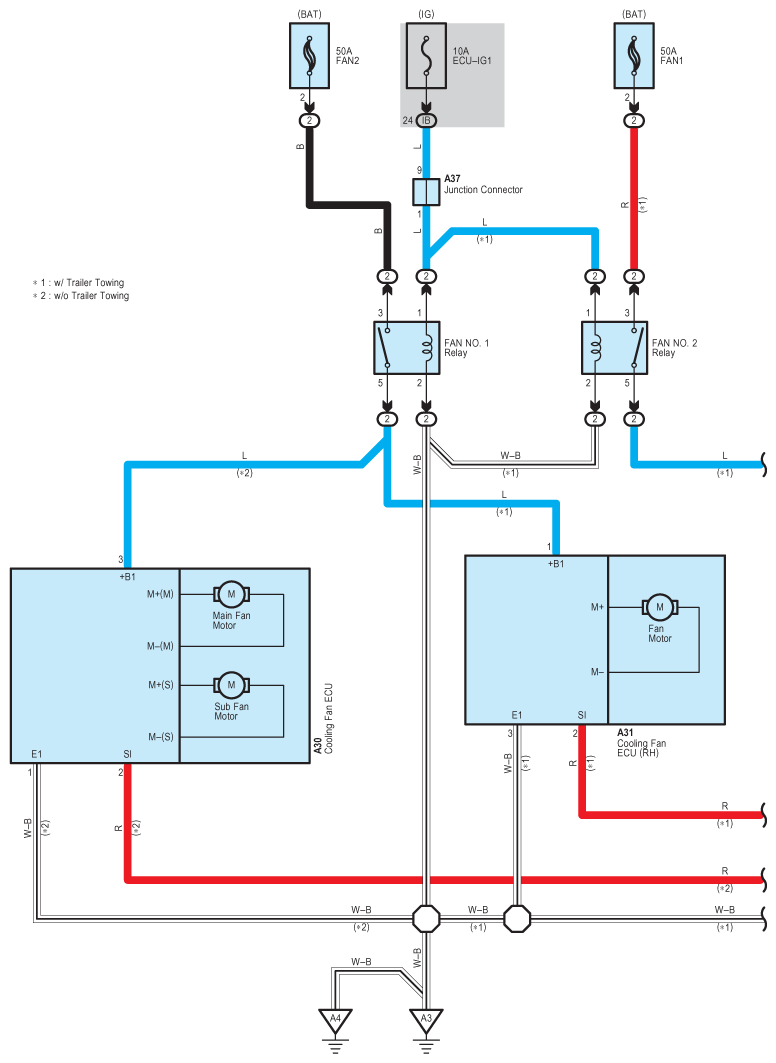

Fig 1: Cooling Fan For 2GR-FE - Circuit Diagram (1 Of 4)
G07577462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

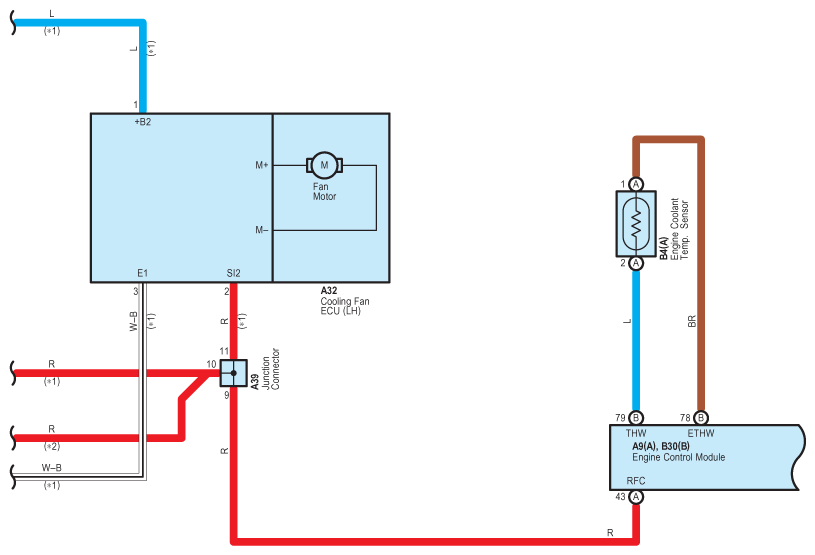

Fig 2: Cooling Fan For 2GR-FE - Circuit Diagram (2 Of 4)
G07577463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

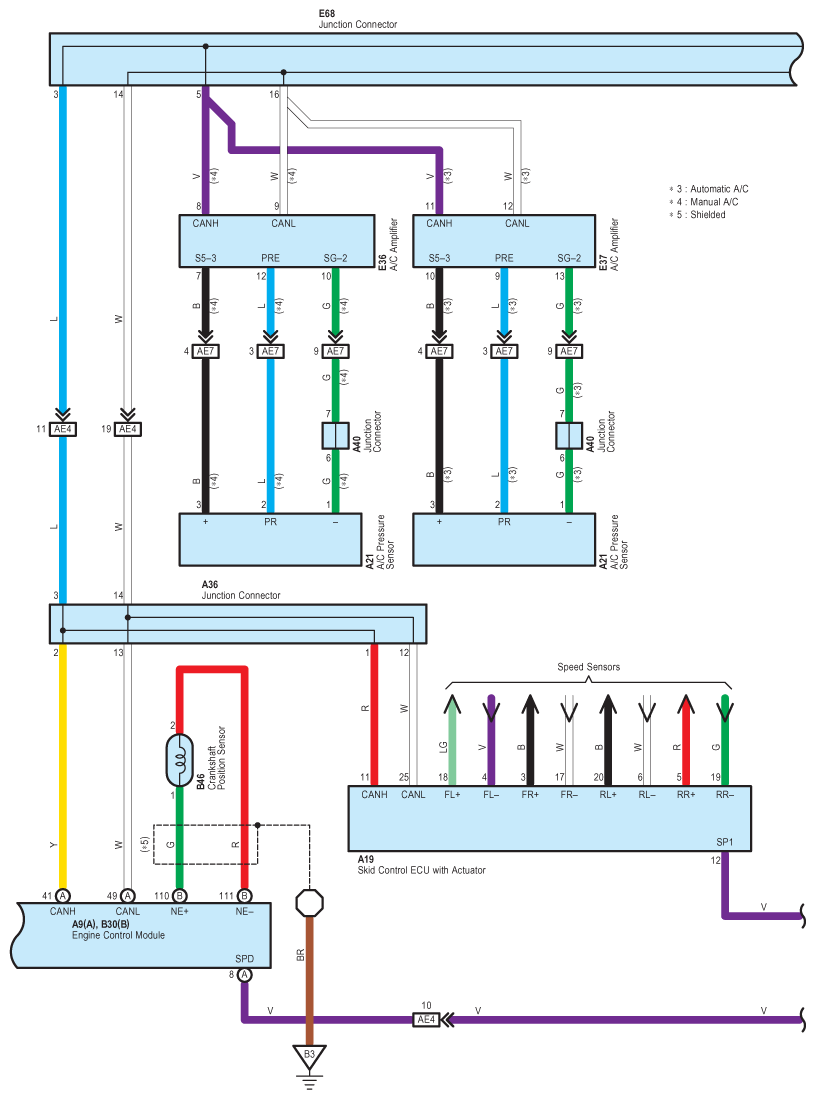

Fig 3: Cooling Fan For 2GR-FE - Circuit Diagram (3 Of 4)
G07577464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

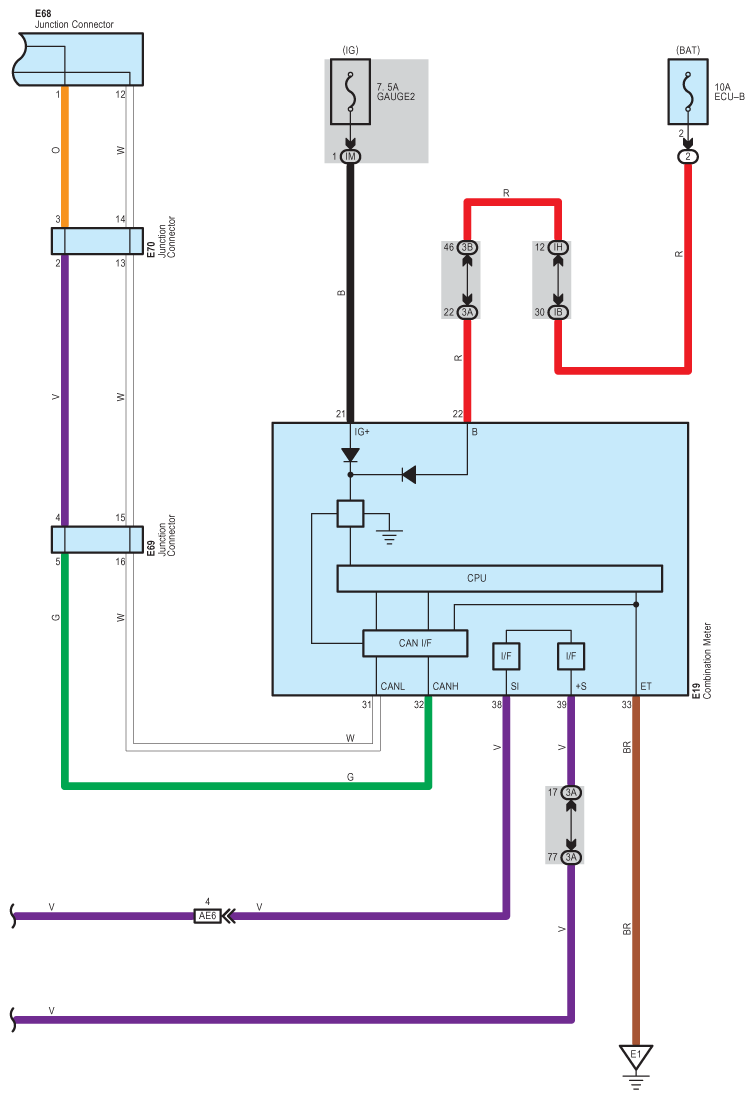

Fig 4: Cooling Fan For 2GR-FE - Circuit Diagram (4 Of 4)
G07577465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
