On-Vehicle Inspection

HINT:

• Do not remove the brake pedal load sensing switch from the brake pedal support.
• When there is a malfunction in the brake pedal load sensing switch, replace the brake pedal support.

1. Disconnect the brake pedal load sensing switch connector.

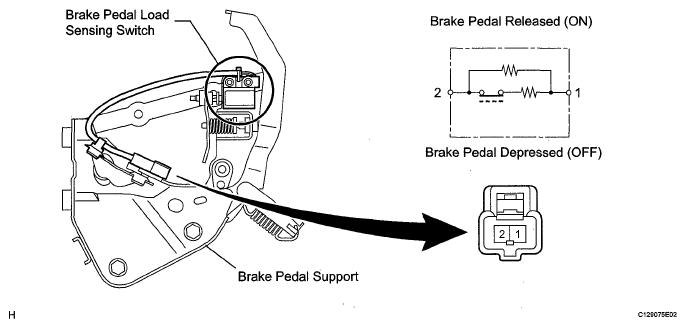

   Fig 1: Identifying Brake Pedal Load Sensing Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance of the switch.

   Standard resistance

   TESTER CONNECTION AND SPECIFIED CONDITION



   Tester Connection	Condition	Specified Condition
   1 - 2	Brake pedal depressed	Approx. 1 kΩ
   1 - 2	Brake pedal released	Approx. 213 Ω

   If the value is not as specified, replace the brake pedal support assembly (see DISASSEMBLY ).
