Rear Seat Outer Belt Assembly: Components

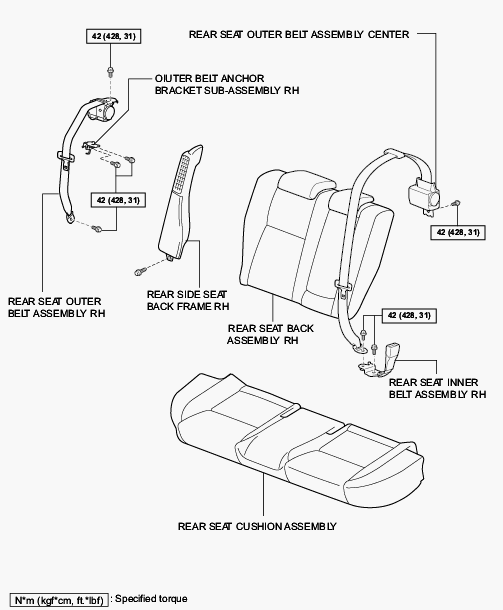

Fig 1: Rear Seat Outer Belt Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

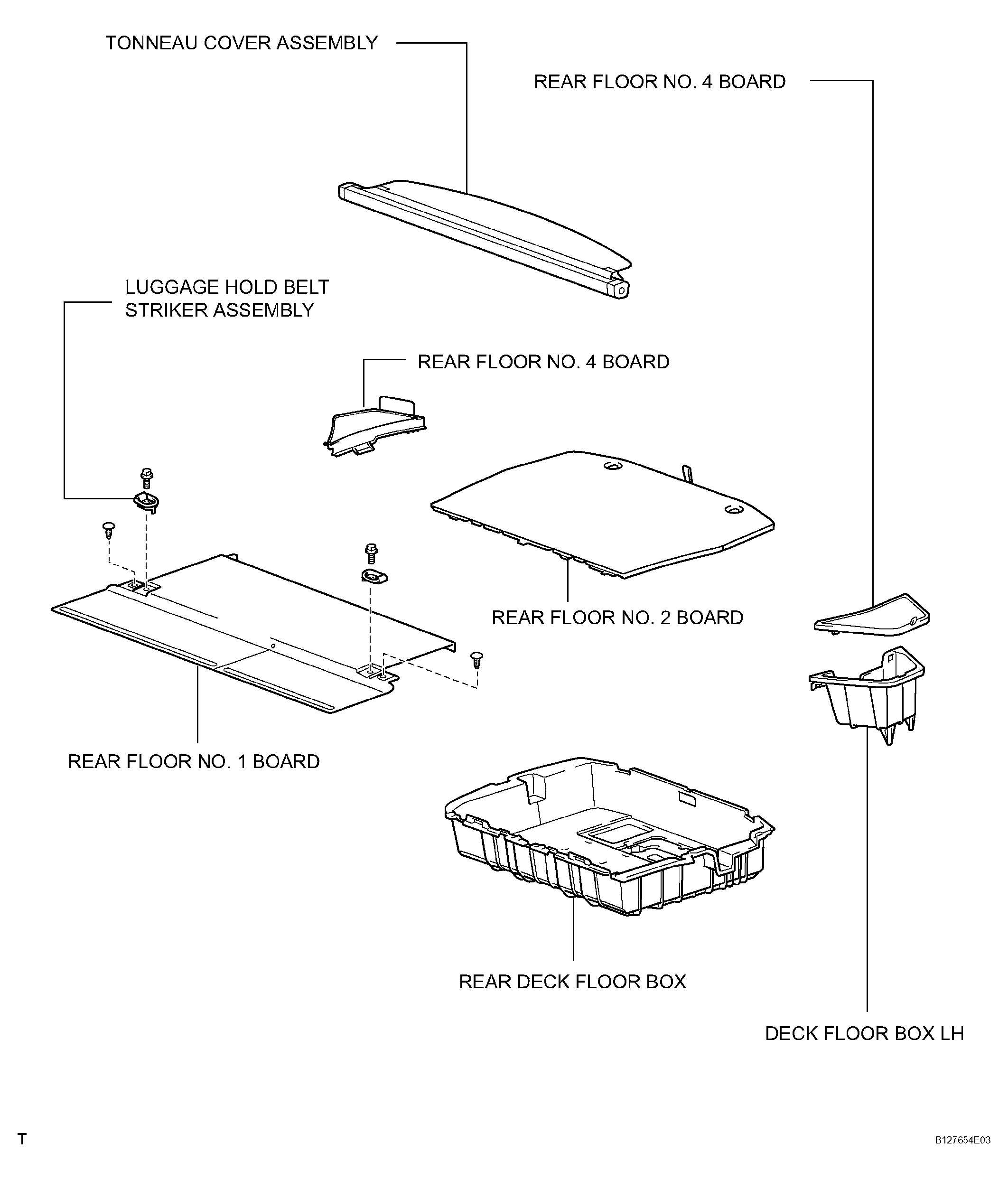

Fig 2: Identifying Rear Seat Outer Belt Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

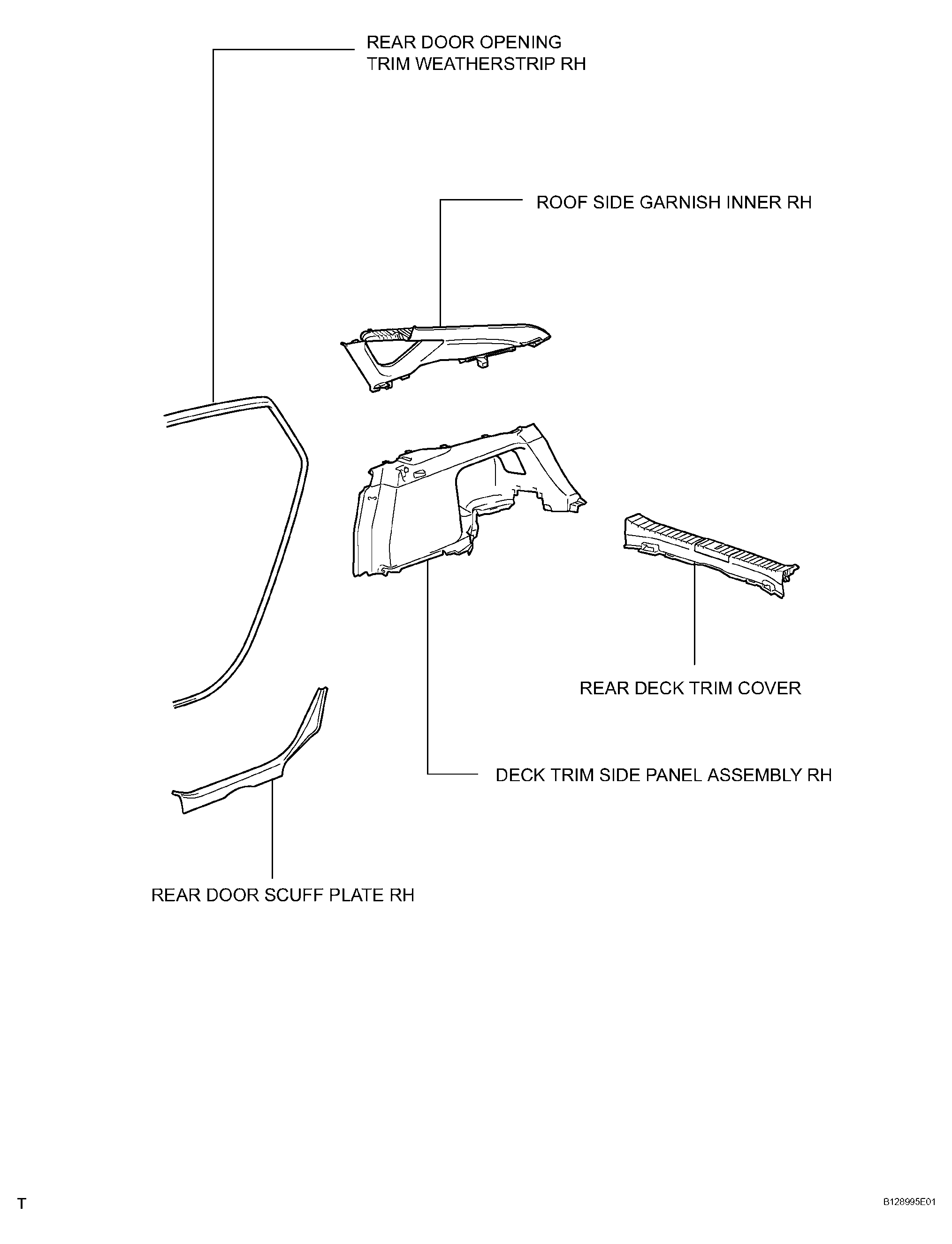

Fig 3: Identifying Rear Seat Outer Belt Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
