Home >> Toyota >> 2008 >> Prius Base >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt >> Rear Seat Inner Belt Assembly >> Components

Rear Seat Inner Belt Assembly: Components

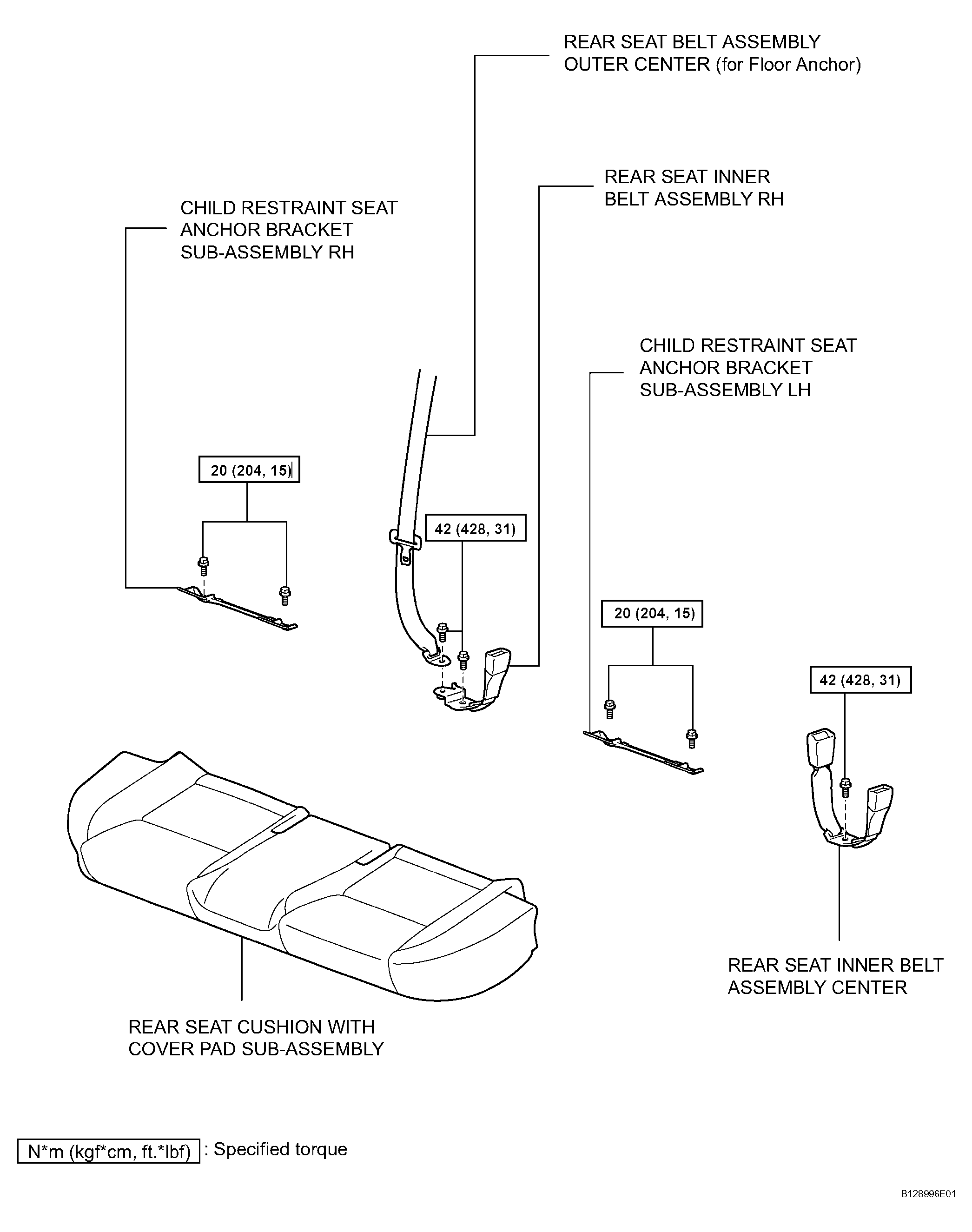

Fig 1: Rear Seat Inner Belt Replacement Components -- With Torque Specifications

G04475615

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
