Battery Ecu: Installation

INSTALL BATTERY ECU
CAUTION: Wear insulating gloves.
1. Install the battery ECU with the 2 screws.
  Torque: 3.3 N*m (34 kgf*cm, 29 in.*lbf)

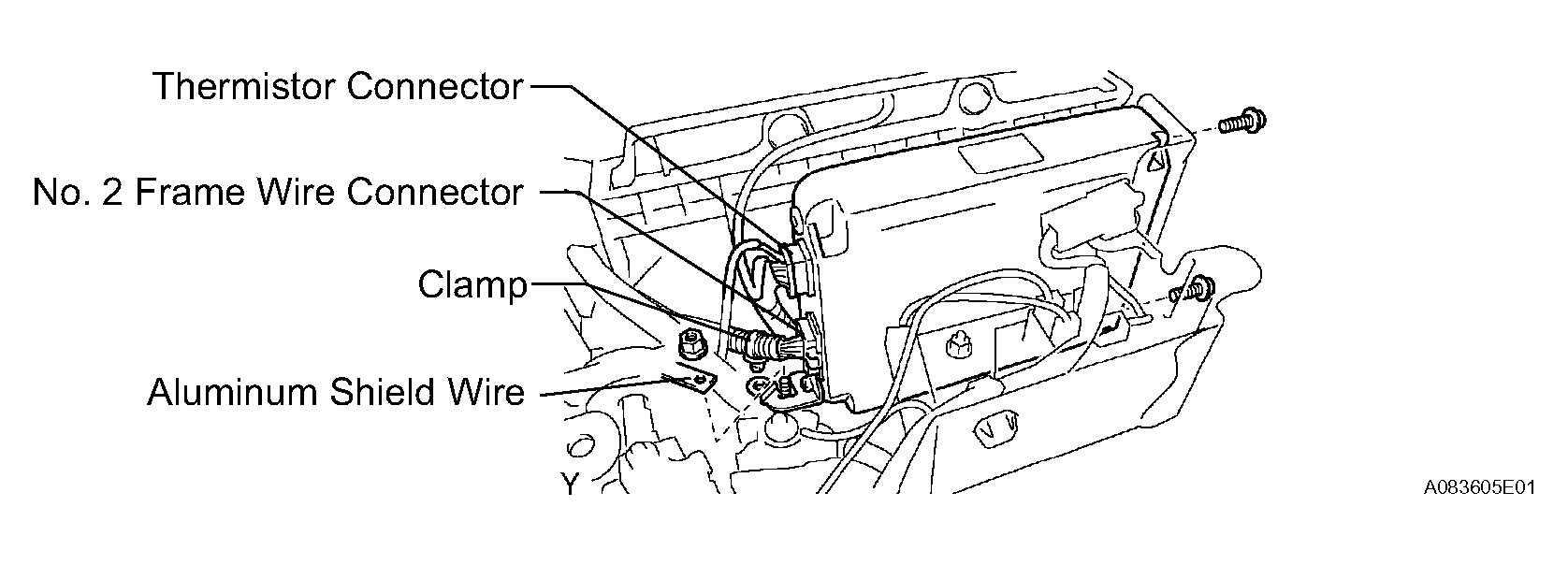

  Fig 1: Installing Aluminum Shield Wire Of Main Battery Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the aluminum shield wire of the main battery cable together with the battery ECU with a new nut.
  Torque: 3.3 N*m (34 kgf*cm, 29 in.*lbf)
3. Connect the clamp and No. 2 frame wire connector.
4. Connect the thermistor connector.
5. Connect the system main relay connector.
INSTALL JUNCTION TERMINAL (See INSTALLATION )
INSTALL NO. 6 BATTERY CARRIER PANEL (See INSTALLATION )
INSTALL BATTERY CARRIER BRACKET (See INSTALLATION )
INSTALL DECK TRIM SIDE PANEL LH (See INSTALLATION )
INSTALL DECK FLOOR BOX LH (See INSTALLATION )

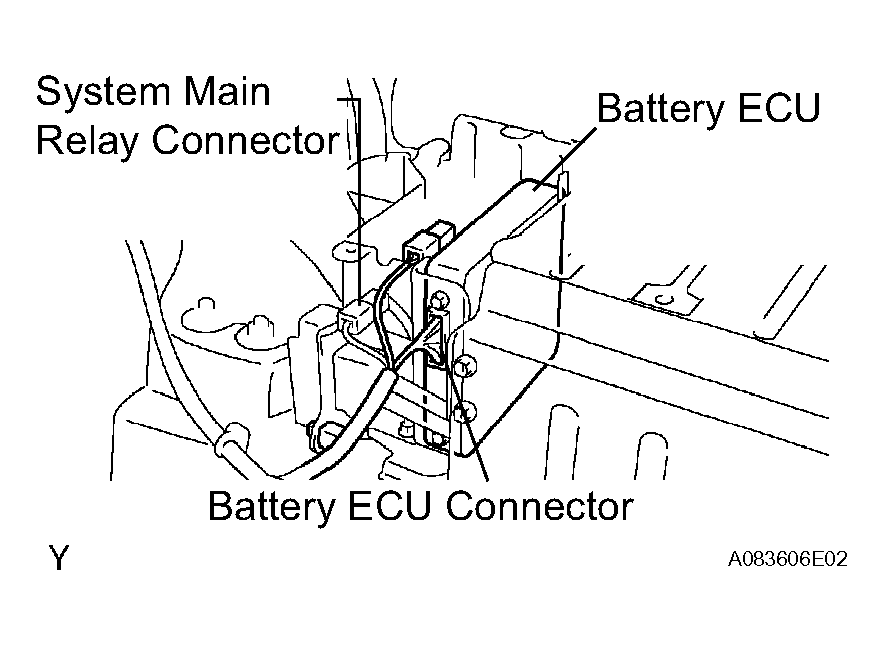

Fig 2: Installing Battery ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR NO. 4 FLOOR BOARD (See INSTALLATION )
INSTALL REAR SIDE SEAT BACK FRAME LH (See INSTALLATION )
INSTALL REAR NO. 1 FLOOR BOARD (See INSTALLATION )
INSTALL REAR SEAT CUSHION ASSEMBLY (See INSTALLATION )
INSTALL TONNEAU COVER (See INSTALLATION )
INSTALL REAR DECK TRIM COVER (See INSTALLATION )
INSTALL SERVICE PLUG GRIP (See REMOVAL )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (See INSTALLATION )
INSTALL REAR NO. 3 FLOOR BOARD (See INSTALLATION )
INSTALL REAR DECK FLOOR BOX (See INSTALLATION )
INSTALL REAR NO. 2 FLOOR BOARD (See INSTALLATION )
PERFORM INITIALIZATION
1. Perform initialization (see INITIALIZATION ).
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
