Battery Blower: Installation

  1. INSTALL BATTERY BLOWER
    1. Connect the connector to the battery blower.
    2. Install the clamp on the battery blower.
    3. Install the battery blower with the 3 nuts.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

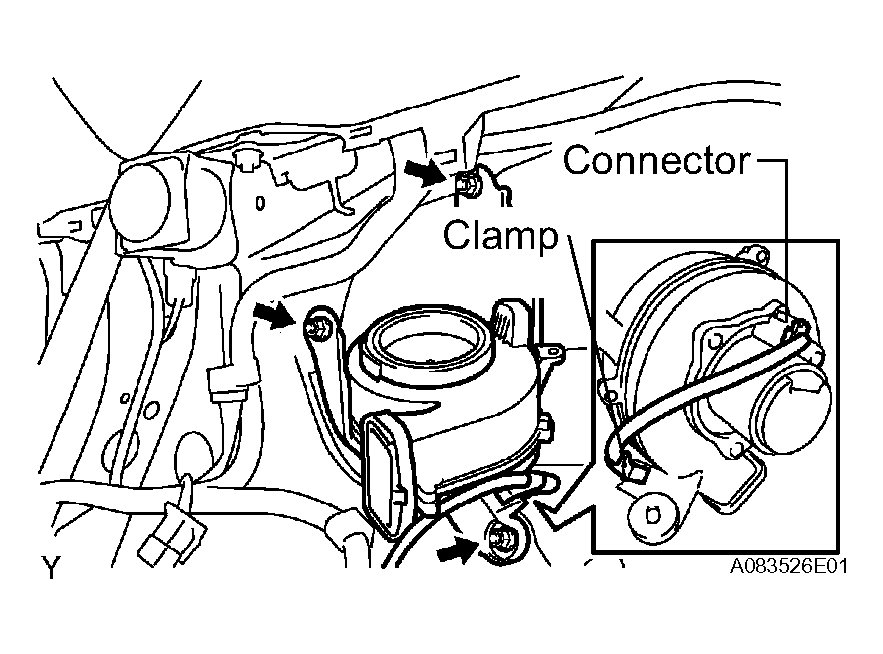

      Fig 1: Installing Battery Blower
      G04474030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL VENTILATOR DUCT INNER
    1. Install the ventilator duct inner with the 3 clips.
  3. INSTALL NO. 2 QUARTER VENT DUCT INNER (See  INSTALLATION   )
  4. INSTALL DECK TRIM SIDE PANEL RH (See  INSTALLATION   )
  5. INSTALL REAR SIDE SEAT BACK FRAME RH (See  INSTALLATION   )
  6. INSTALL REAR NO. 1 FLOOR BOARD (See  INSTALLATION   )

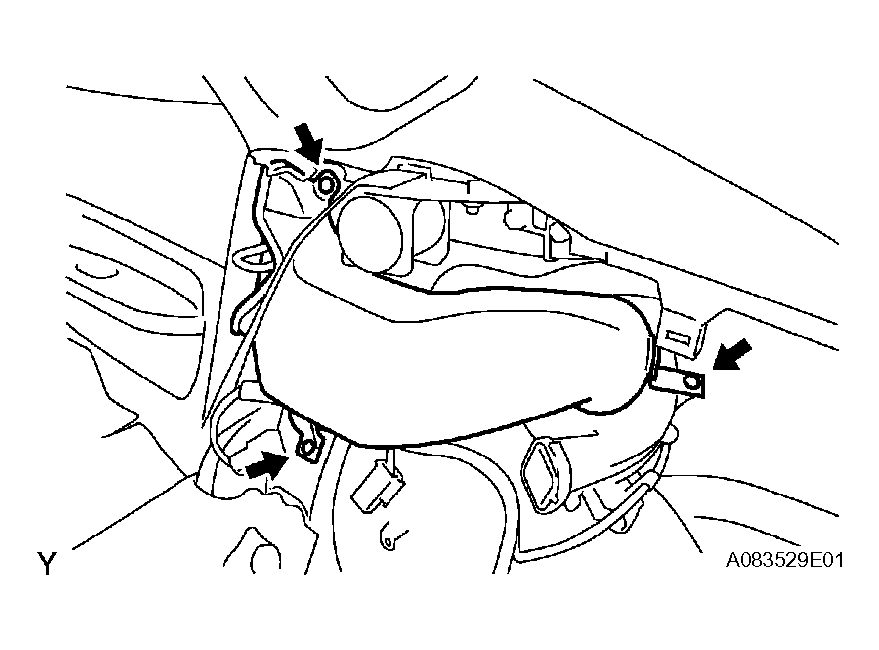

    Fig 2: Installing Ventilator Duct Inner
    G04474031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL REAR SEAT CUSHION ASSEMBLY (See  INSTALLATION   )
  8. INSTALL TONNEAU COVER (See  INSTALLATION   )
  9. INSTALL REAR DECK TRIM COVER (See  INSTALLATION   )
  10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (See  INSTALLATION  )
  11. INSTALL REAR NO. 3 FLOOR BOARD (See  INSTALLATION  )
  12. INSTALL REAR DECK FLOOR BOX (See  INSTALLATION  )
  13. INSTALL REAR NO. 2 FLOOR BOARD (See  INSTALLATION  )
  14. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
