How To Determine Bolt Strength

Bolt Type

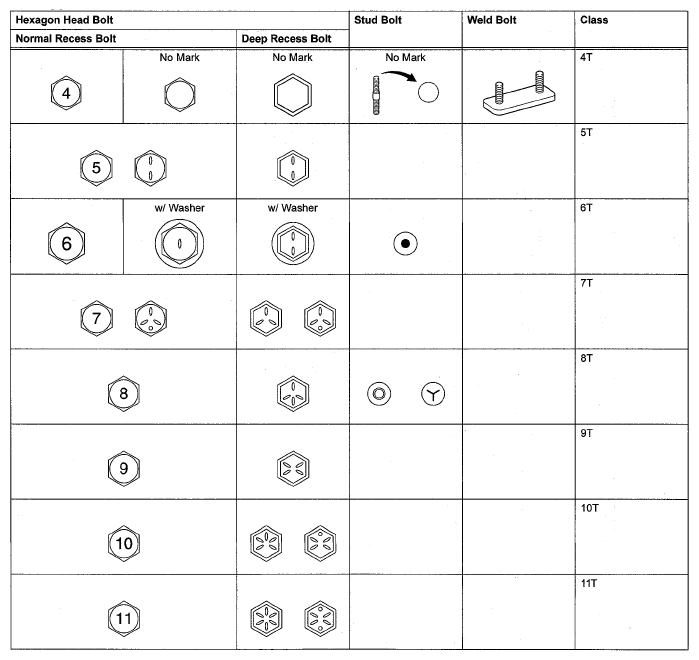

Fig 1: Standard Bolt Chart
G05673908Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
