Oil Pump: Replacement

REPLACE OIL PUMP OIL SEAL

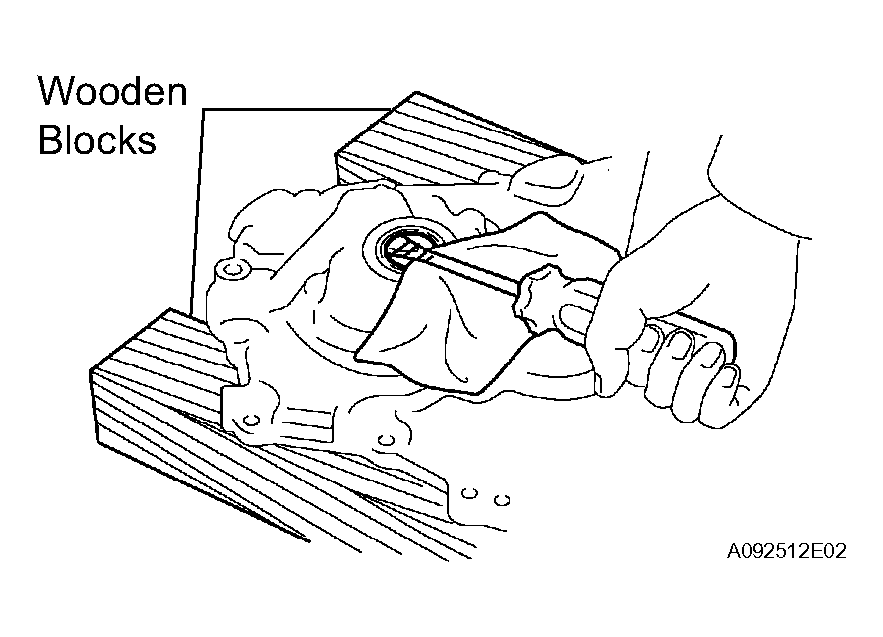

1. Using a screwdriver with its tip wrapped in tape, remove the oil seal.

  Fig 1: Removing Oil Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

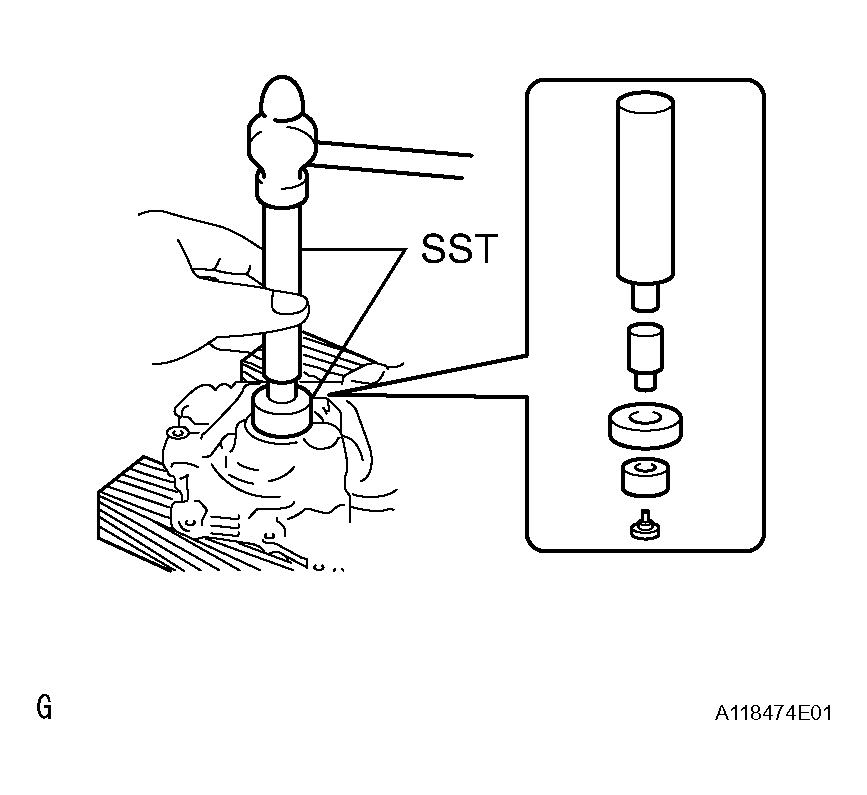

2. Using SST, uniformly tap in a new oil seal until its surface is flush with the oil pump edge.
  SST 09950-60010 (09951-00250, 09951-00380, 09952-06010), 09950-70010 (09951-07100)

  NOTE: Be careful not to tap the oil seal at an angle.
3. Apply a light coat of No. 2 multipurpose grease to the lip of the oil seal.
  NOTE: Keep the lip free of foreign objects.

  Fig 2: Tapping In Oil Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
