Oil Pump: Reassembly

INSTALL OIL PUMP RELIEF VALVE
1. Apply engine oil to the oil pump relief valve.
2. Install the oil pump relief valve and oil pump relief valve spring to the oil pump cover.
3. Install the oil pump relief valve plug.
  Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)

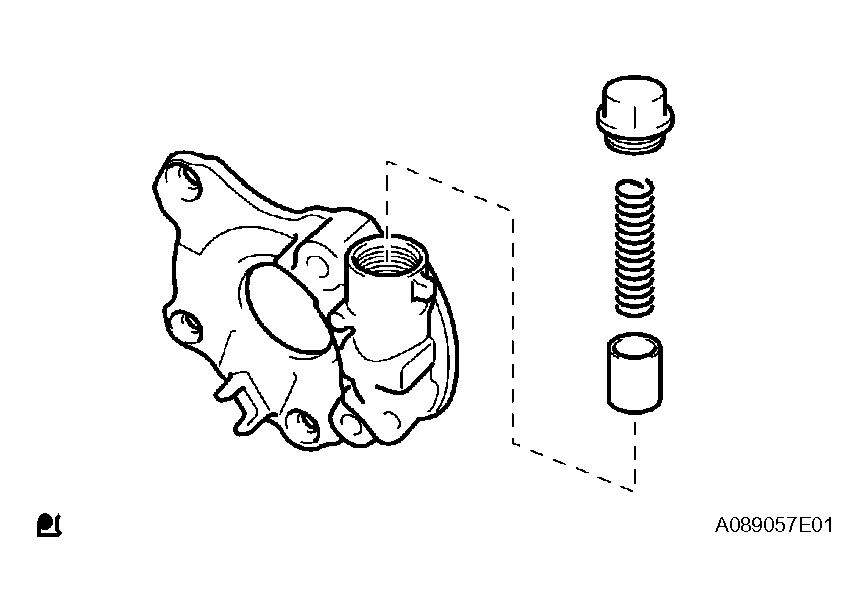

  Fig 1: Installing Oil Pump Relief Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OIL PUMP ROTOR SET
1. Apply engine oil to the drive and driven rotors.
2. Install the rotors to the oil pump body with the marks facing upward.

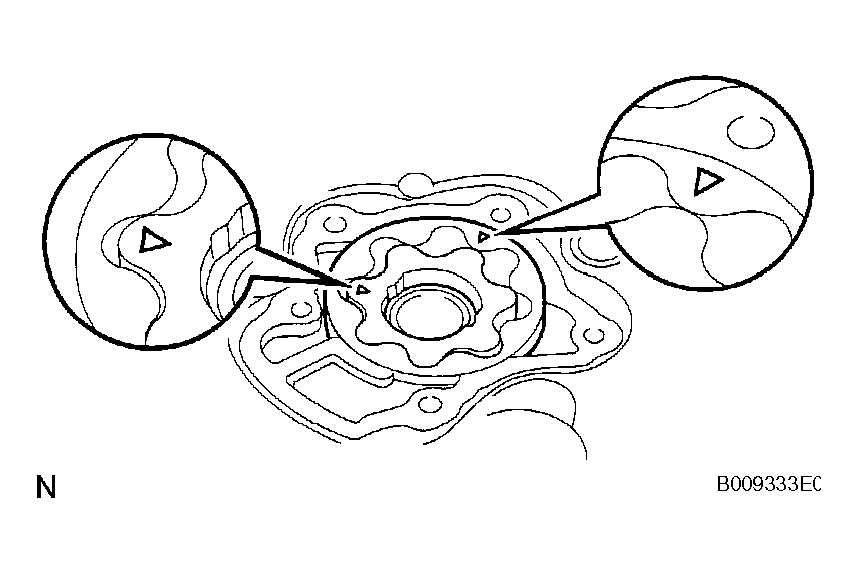

  Fig 2: Installing Oil Pump Rotor Set
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the oil pump cover with the 2 bolts and 3 screws.
  Torque: 8.8 N*m (90 kgf*cm, 78 in.*lbf) for bolt

  10 N*m (102 kgf*cm, 7 ft.*lbf) for screw

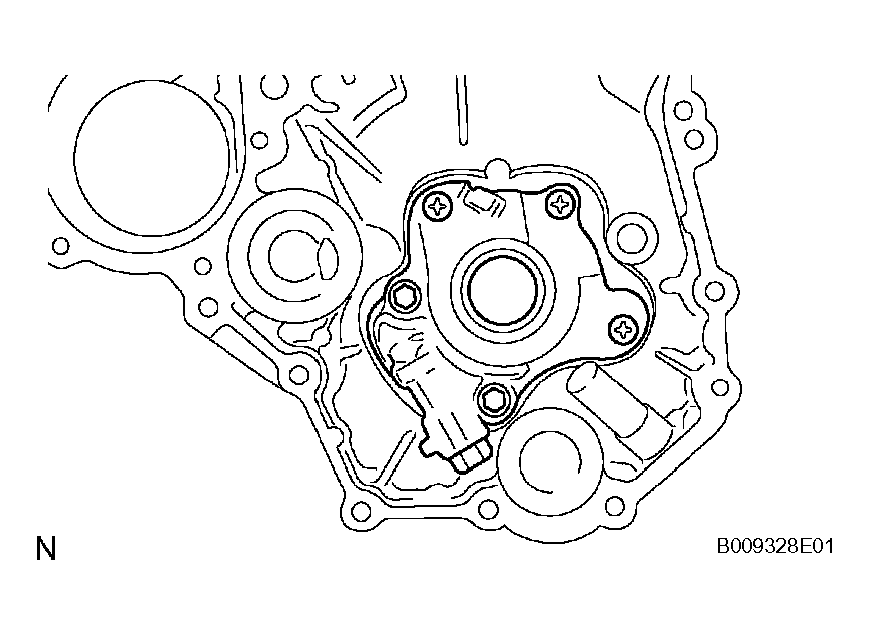

  Fig 3: Installing Oil Pump Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
