Oil Pump: Installation

  1. INSTALL OIL PUMP ASSEMBLY

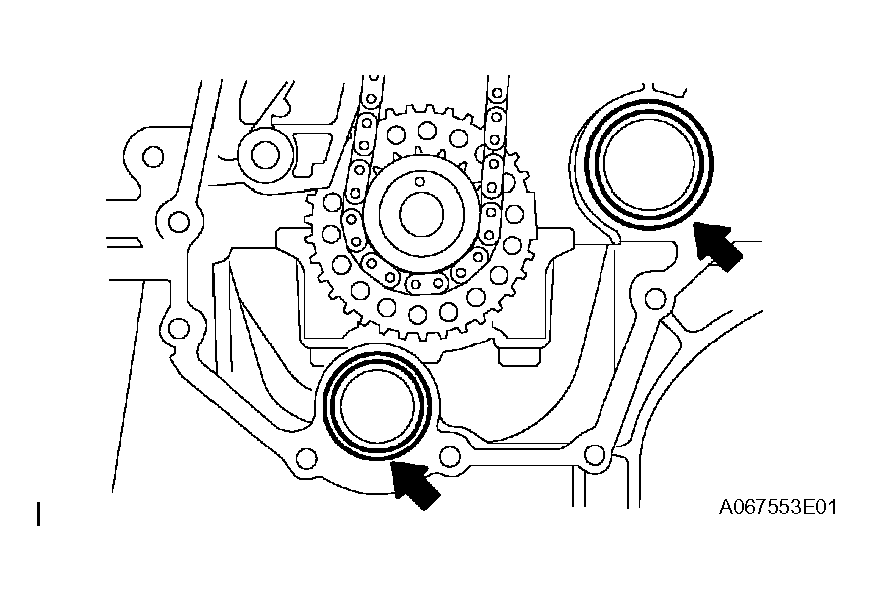

    1. Install 2 new O-rings to the 2 locations as shown in the illustration.
      Fig 1: Installing O-Rings
      G04473151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Apply seal packing to the engine body and oil pump as shown in the illustration below.

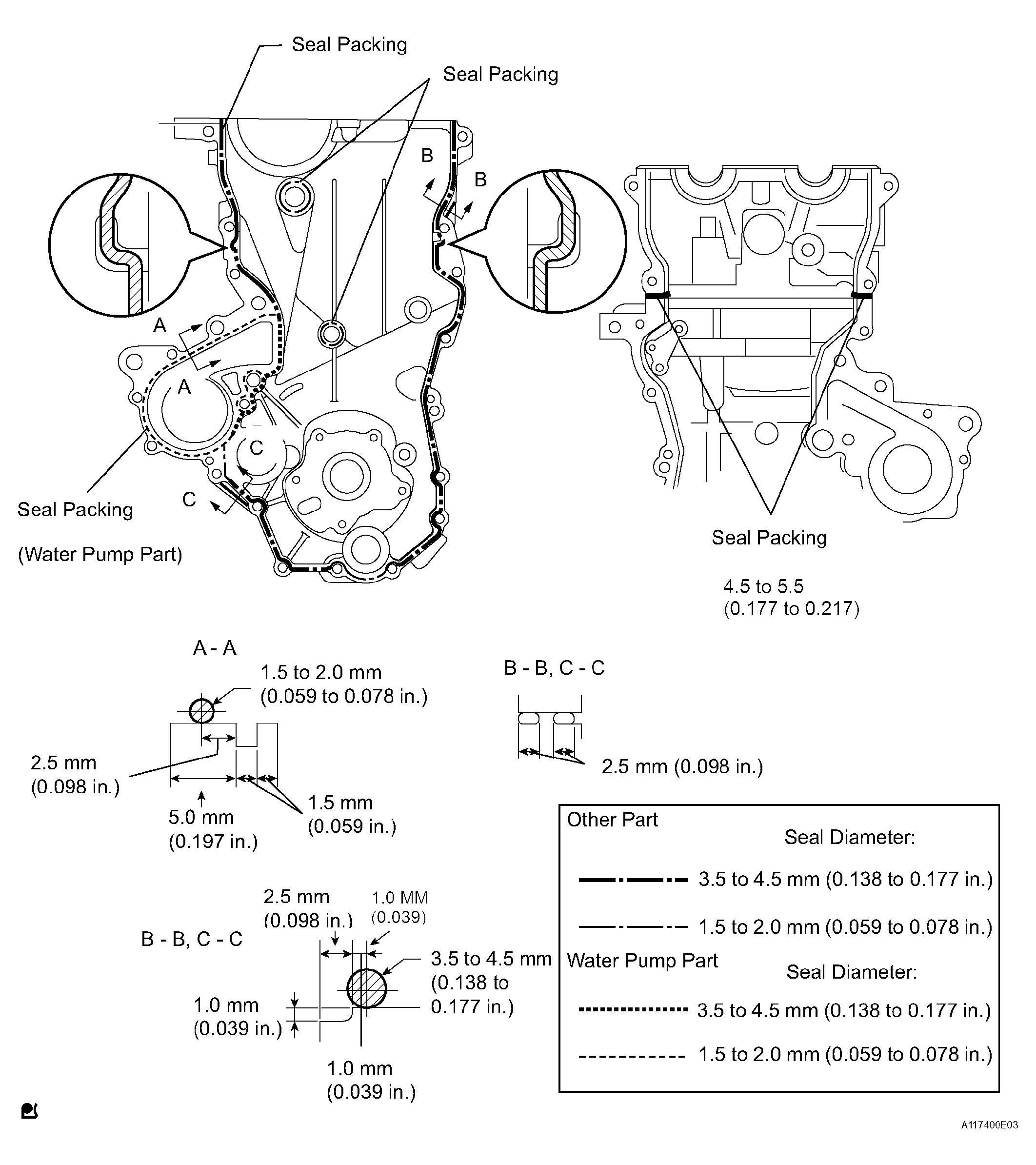

      Fig 2: Applying Seal Packing To Engine Body And Oil Pump
      G04473152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Seal packing: Water pump part: Toyota Genuine Seal Packing 1282B, Three Bond 1282B or Equivalent

      Other part: Toyota Genuine Seal Packing Black, Three Bond 1207B or Equivalent

      NOTE:
      • Remove pump any oil from the contact surface.
      • Install the oil pump within 3 minutes, and tighten the bolts within 15 minutes after applying seal packing.
      • Do not expose the seal packing to engine oil within 2 hours of installation.

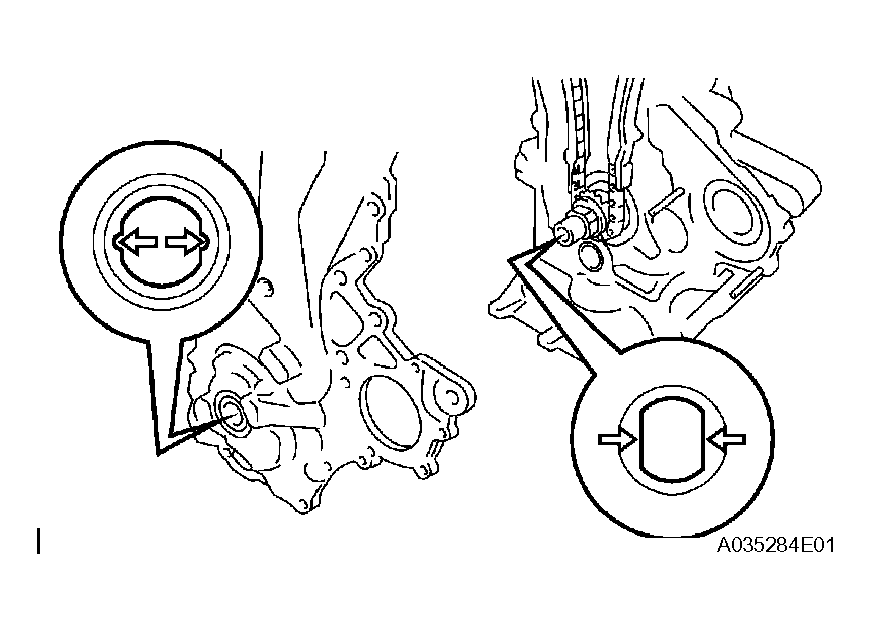

    3. Align the drive rotor spline of the oil pump with the rectangular portion of the crankshaft, then slide the oil pump into place.
      Fig 3: Aligning Drive Rotor Spline Of Oil Pump
      G04473153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

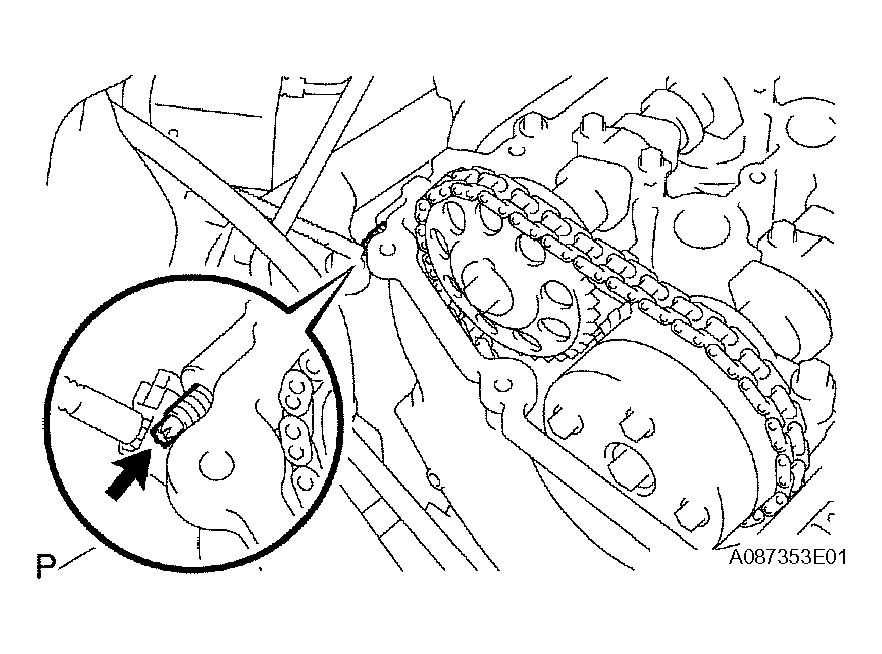

    4. Using an E8 "Torx" socket wrench, install the stud bolt.

      Torque: 10 N*m (102 kgf*cm, 7.4 ft.*lbf)

      Fig 4: Installing Stud Bolt
      G04473154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

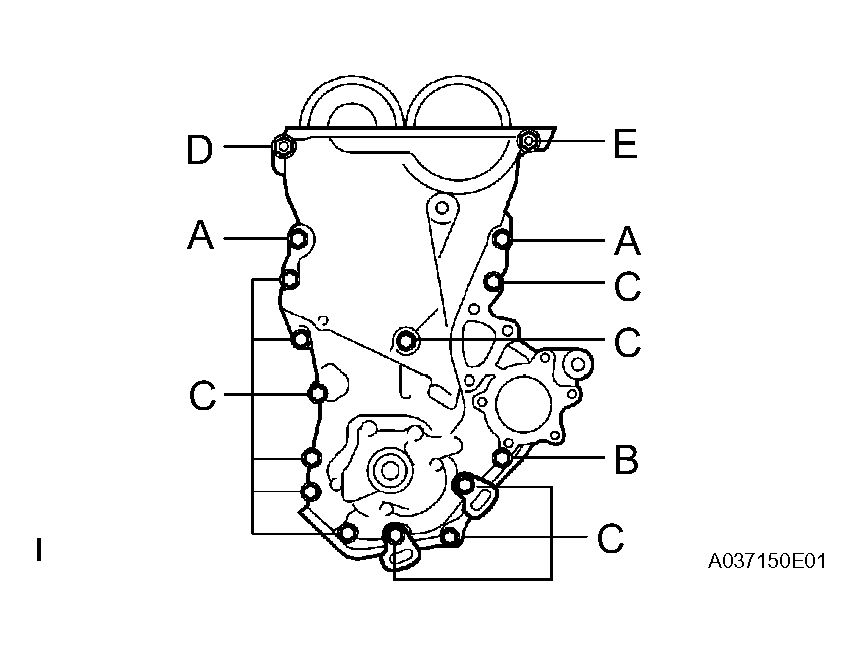

    5. Install the oil pump with the 15 bolts and nut as show in Fig 5.

      Torque: 32 N*m (326 kgf*cm, 24 ft.*lbf) for bolt A

      11 N*m (112 kgf*cm, 8 ft.*lbf) for bolt B

      11 N*m (112 kgf*cm, 8 ft.*lbf) for bolt C

      24 N*m (245 kgf*cm, 18 ft.*lbf) for bolt D

      24 N*m (245 kgf*cm, 18 ft.*lbf) for bolt E

      NOTE:
      • Be careful that the chain does not contact the seal packing when installing the oil pump.
      • Install the engine mounting bracket RH and water pump within 15 minutes after installing the oil pump.
        Fig 5: Installing Oil Pump Bolts And Nut
        G04473155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL CRANKSHAFT POSITION SENSOR (See  INSTALLATION  )
  3. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
    1. Apply a light coat of engine oil to the O-ring.
    2. Install the camshaft timing oil control valve with the bolt.

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

  4. INSTALL ENGINE MOUNTING BRACKET

    Torque: 55 N*m (561 kgf*cm, 41 ft.*lbf)

  5. INSTALL ENGINE MOUNTING SPACER

    Torque: 52 N*m (530 kgf*cm, 38 ft.*lbf)

  6. INSTALL ENGINE MOUNTING INSULATOR SUB-ASSEMBLY RH
    1. Install the engine mounting insulator with the 3 bolts and 4 nuts.

      Torque: 52 N*m (530 kgf*cm, 38 ft.*lbf)

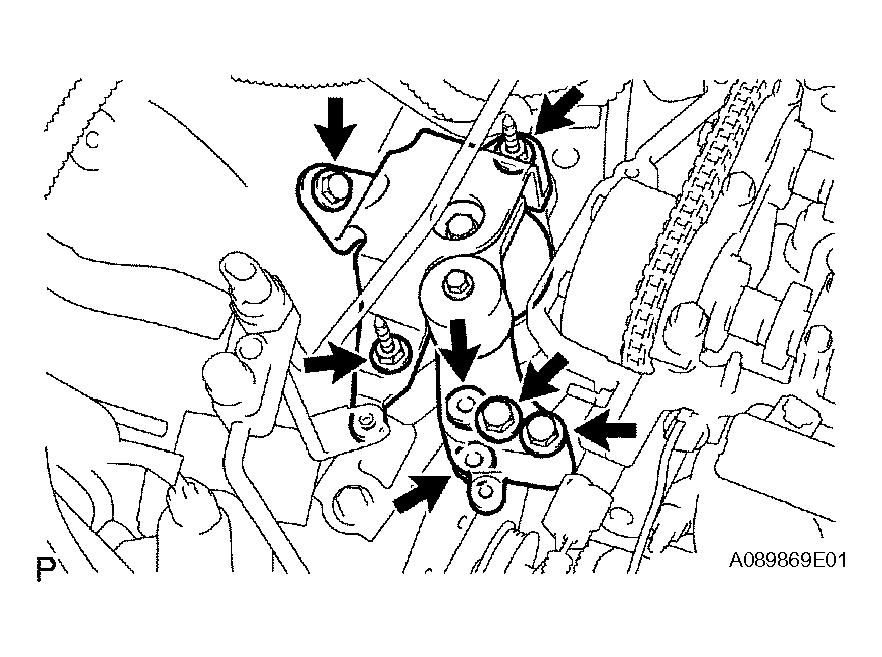

      Fig 6: Installing Engine Mounting Insulator Bolts And Nuts
      G04473156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL CRANKSHAFT PULLEY
    1. Align the hole of the crankshaft pulley with the straight pin, then install the crankshaft pulley.

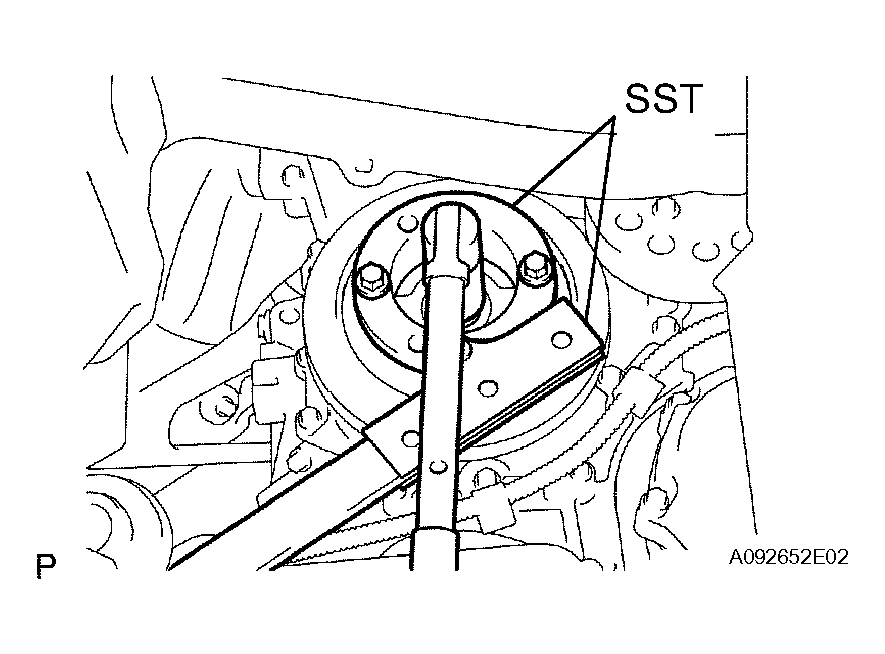

    2. Using SST, hold the crankshaft pulley and tighten the crankshaft bolt.

      SST 09213-58013 (91111-50845), 09330-00021

      Torque: 128 N*m (1305 kgf*cm, 95 ft.*lbf)

      NOTE: When installing SST, be careful that the bolt which holds SST does not interfere with the chain cover.
      Fig 7: Installing Crankshaft Bolt
      G04473157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL WATER PUMP ASSEMBLY (See  INSTALLATION  )
  9. INSTALL WATER PUMP PULLEY (See  INSTALLATION  )
  10. INSTALL DRIVE BELT (See  INSTALLATION  )
  11. INSTALL PURGE VSV (See  INSTALLATION  )
  12. INSTALL CYLINDER HEAD COVER SUB-ASSEMBLY

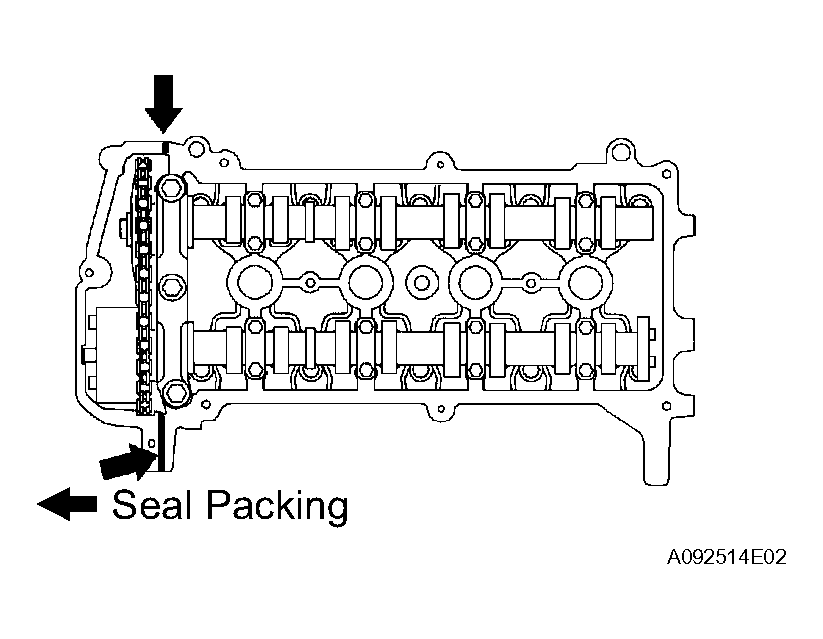

    1. Apply seal packing to the 2 locations shown in Fig 8, then install the cylinder head cover.

      Seal packing: Toyota Genuine Seal Packing Black, Three Bond 1207B or Equivalent

      NOTE:
      • Remove any oil from the contact surface.
      • Install the cylinder head cover within 3 minutes after applying seal packing.
      • Do not start the engine within 2 hours of installing.
        Fig 8: Identifying Seal Packing Application Locations
        G04473158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

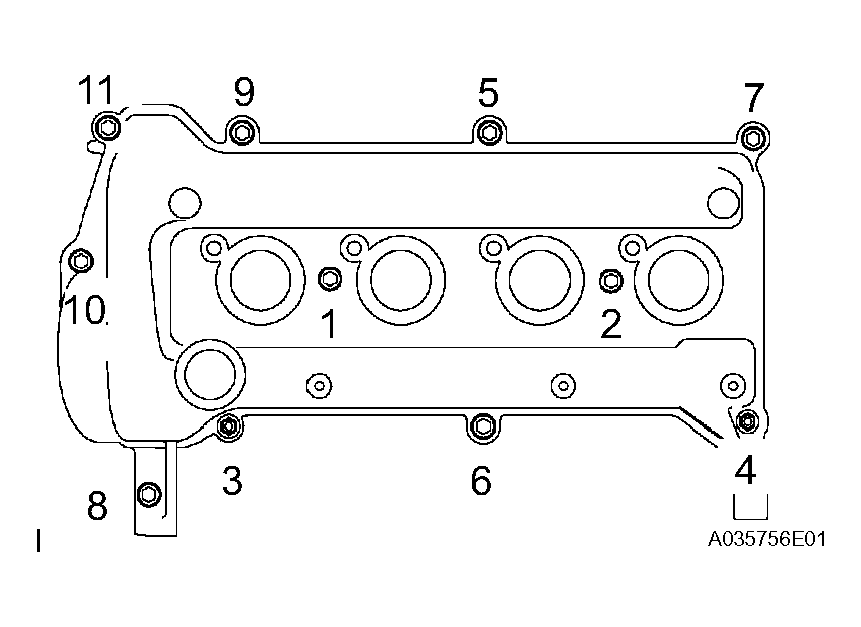

    2. Install the cylinder head cover with the 9 bolts and 2 nuts.
    3. Using several steps, tighten the bolts and nuts with the specified torque in the sequence shown in the illustration.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    4. Install the ignition coil with the bolt.

      Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

    5. Install the brake master cylinder reservoir cover to the cylinder head cover.
      Fig 9: Installing Cylinder Head Cover Bolts And Nuts
      G04473159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Install the wire harness and brake master cylinder reservoir cover with the 3 bolts.

      Torque: 9.0 N*m (92 kgf*cm, 80 in.*lbf)

    7. Connect the fuel injector connector and ignition coil connector.

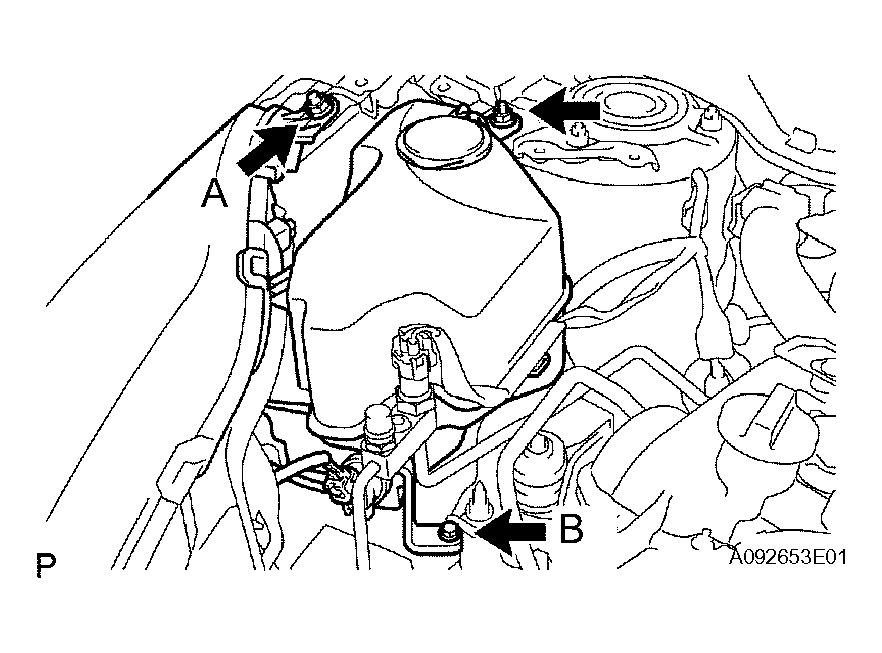

  13. INSTALL WINDSHIELD WASHER JAR ASSEMBLY

    Torque: 4.9 N*m (50 kgf*cm, 43 in.*lbf) for bolt A

    14 N*m (143 kgf*cm, 10 ft.*lbf) for bolt B

    5.5 N*m (56 kgf*cm, 49 in.*lbf) for nut

  14. INSTALL RESERVOIR BRACKET

    Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

  15. INSTALL BRAKE MASTER CYLINDER RESERVOIR SUB-ASSEMBLY

    Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

    Fig 10: Installing Windshield Washer Jar Assembly
    G04473160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL NO. 2 AIR CLEANER INLET
  17. INSTALL AIR CLEANER ASSEMBLY (See  VENTILATION VALVE  )
  18. INSTALL FRONT COWL TOP PANEL OUTER (See  INSTALLATION  )
  19. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
    1. Install the windshield wiper motor and wiper link assembly (see INSTALLATION ).
  20. ADD ENGINE OIL (See  REPLACEMENT  )
  21. INSTALL SERVICE PLUG GRIP (See  SERVICE PLUG GRIP  )
  22. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (See  INSTALLATION  )
  23. INSTALL REAR NO. 3 FLOOR BOARD (See  INSTALLATION  )
  24. INSTALL REAR DECK FLOOR BOX (See  INSTALLATION  )
  25. INSTALL REAR NO. 2 FLOOR BOARD (See  INSTALLATION  )
  26. ADD ENGINE COOLANT (See  ON-VEHICLE INSPECTION  )
  27. CHECK FOR ENGINE COOLANT LEAKS (See  ON-VEHICLE INSPECTION  )
  28. CHECK FOR ENGINE OIL LEAKS
  29. INSTALL RADIATOR SUPPORT OPENING COVER
  30. INSTALL ENGINE UNDER COVER RH
  31. INSTALL ENGINE UNDER COVER LH
  32. INSTALL FRONT WHEEL RH

    Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)

  33. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
