Oil Pump: Disassembly

REMOVE OIL PUMP ROTOR SET
1. Remove the 2 bolts and 3 screws, then remove the oil pump cover.

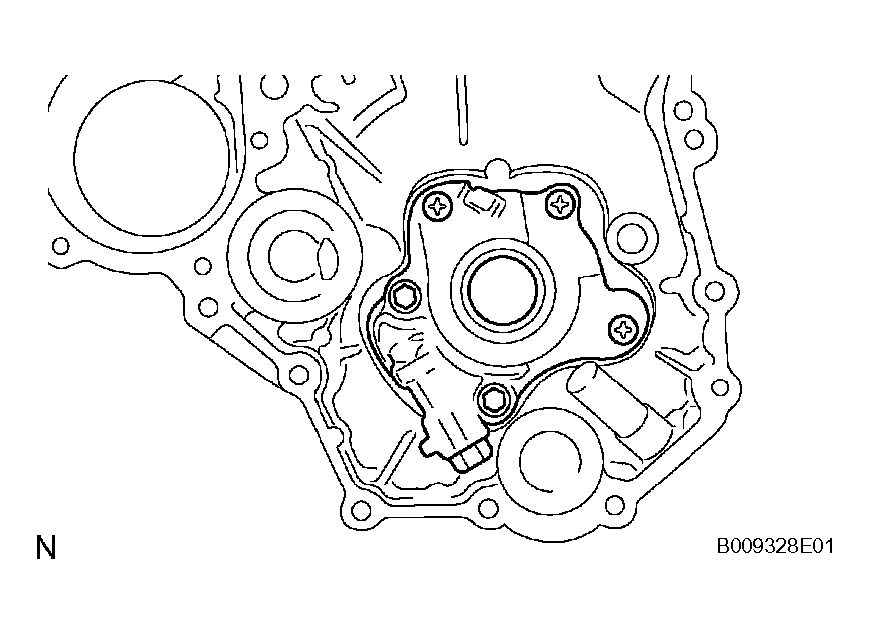

  Fig 1: Removing Oil Pump Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the oil pump rotor set from the oil pump body.
  NOTE: Keep the 2 removed rotors without changing the arrangement or turning them over.

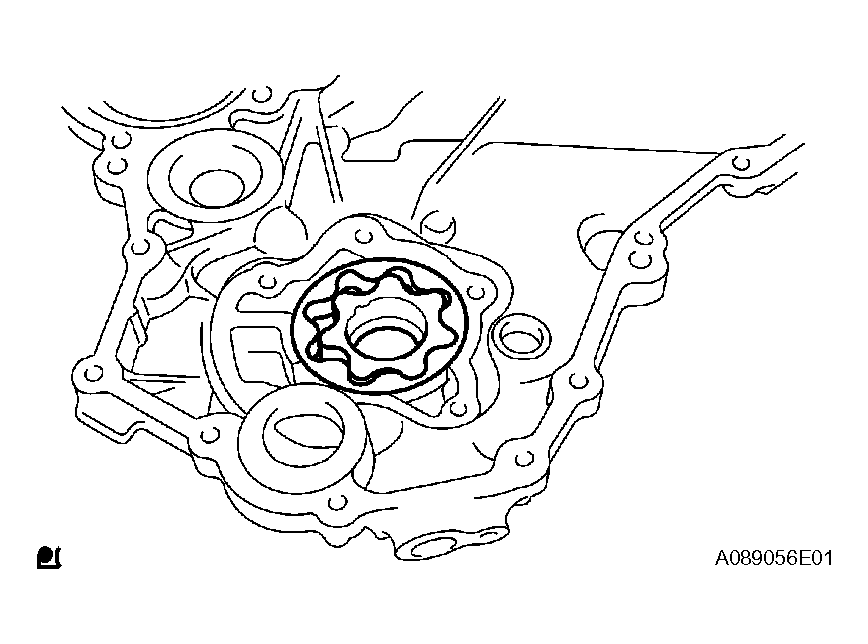

  Fig 2: Removing Oil Pump Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE OIL PUMP RELIEF VALVE
1. Remove the oil pump relief valve plug, then remove the oil pump relief valve spring and oil pump relief valve.

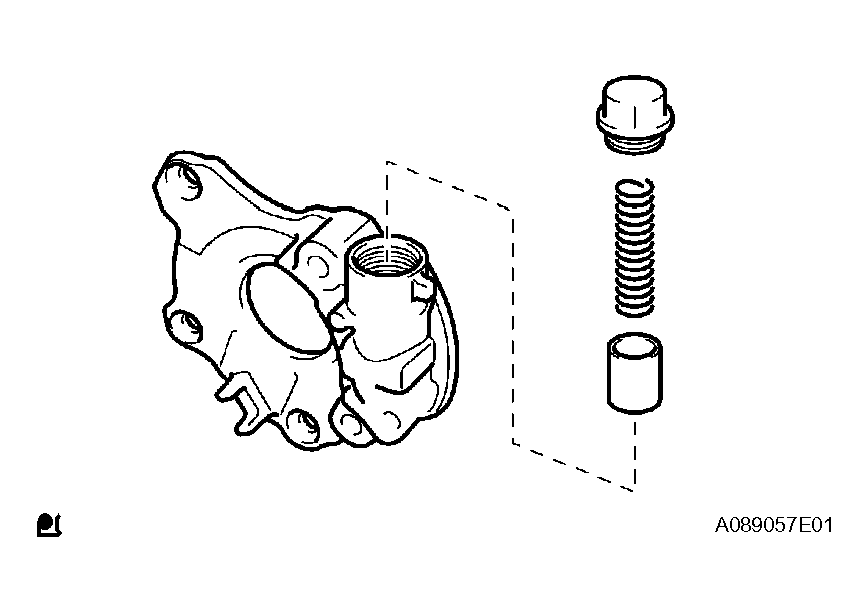

  Fig 3: Removing Oil Pump Relief Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
