Rear Seat Assembly: Installation: Installation

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL REAR SEATBACK ASSEMBLY RH
1. Engage the rear seatback frame sub-assembly RH with the end of the reclining adjuster arm sub-assembly RH.

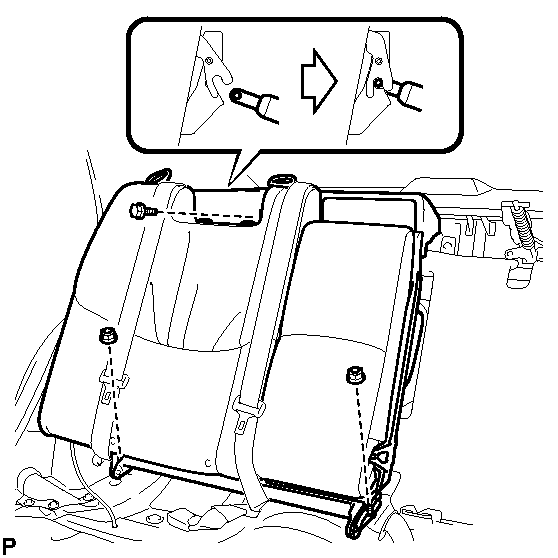

  Fig 1: Installing Rear Seatback Assembly RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the rear seatback assembly RH with the bolt and 2 nuts.
  Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

  HINT:

  Compress completely adjuster arm sub-assembly before engage rear seatback frame sub-assembly.
3. Install the rear seat belt to the rear seat shoulder belt guide center.

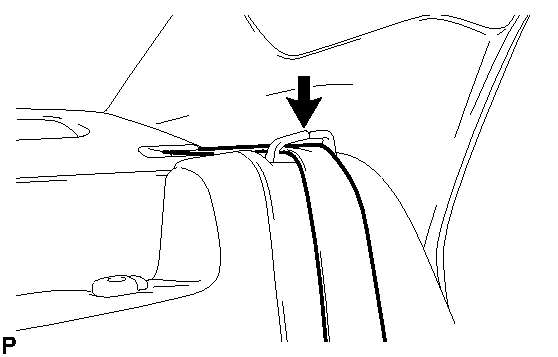

  Fig 2: Remove/Install Rear Seat Shoulder Belt Guide Center
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the rear seat belt to the rear seat shoulder belt guide RH.

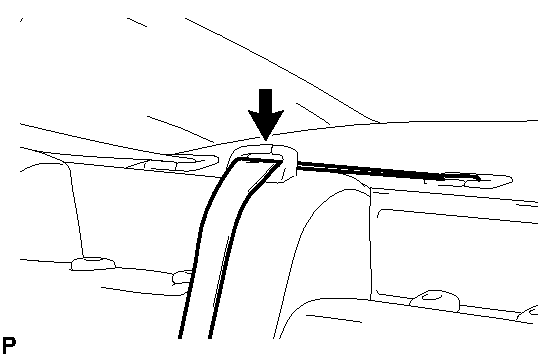

  Fig 3: Remove/Install Rear Seat Shoulder Belt Guide RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEATBACK ASSEMBLY LH
1. Engage the rear seatback frame sub-assembly LH with the end of the reclining adjuster arm sub-assembly LH.

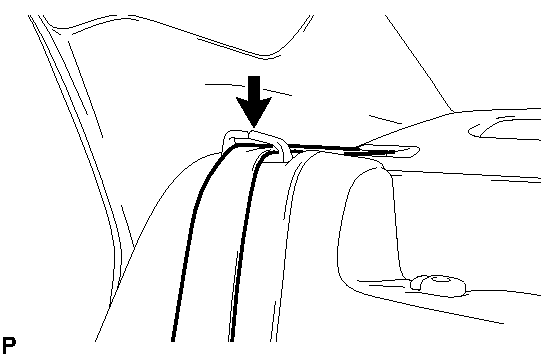

  Fig 4: Installing Rear Seatback Assembly LH Fasteners
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the rear seatback assembly LH with the bolt and 2 nuts.
  Torque: 18 N*m (184 kgf*cm, 13 ft.*lbf)

  HINT:

  Compress completely adjuster arm sub-assembly before engage rear seatback frame sub-assembly.
3. Install the rear seat belt to the rear seat shoulder belt guide LH.

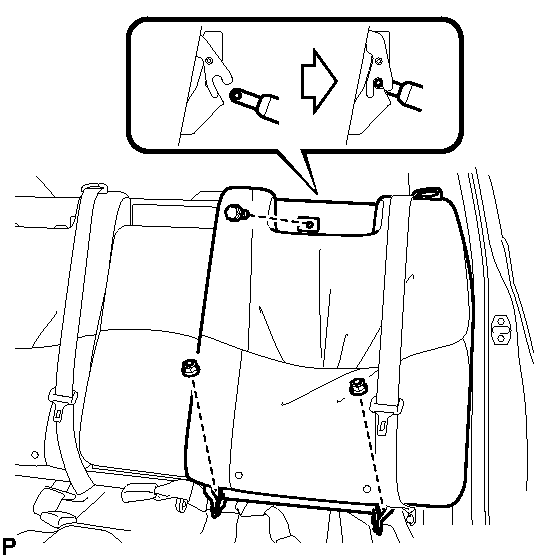

  Fig 5: Remove/Install Rear Seat Belt To Rear Seat Shoulder Belt Guide LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
