Brake Booster: Inspection: Inspection
WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

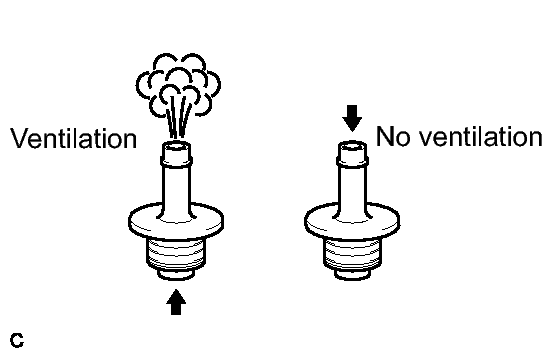

- INSPECT BRAKE VACUUM CHECK VALVE ASSEMBLY
- Check that there is ventilation from the booster to the engine, and no ventilation from the engine to the booster. If the results are not as specified, replace the brake booster assembly.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
