Brake Booster: Components: Illustration

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Brake Booster Replacement Components With Torque Specifications (1 Of 3)
GTY204595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

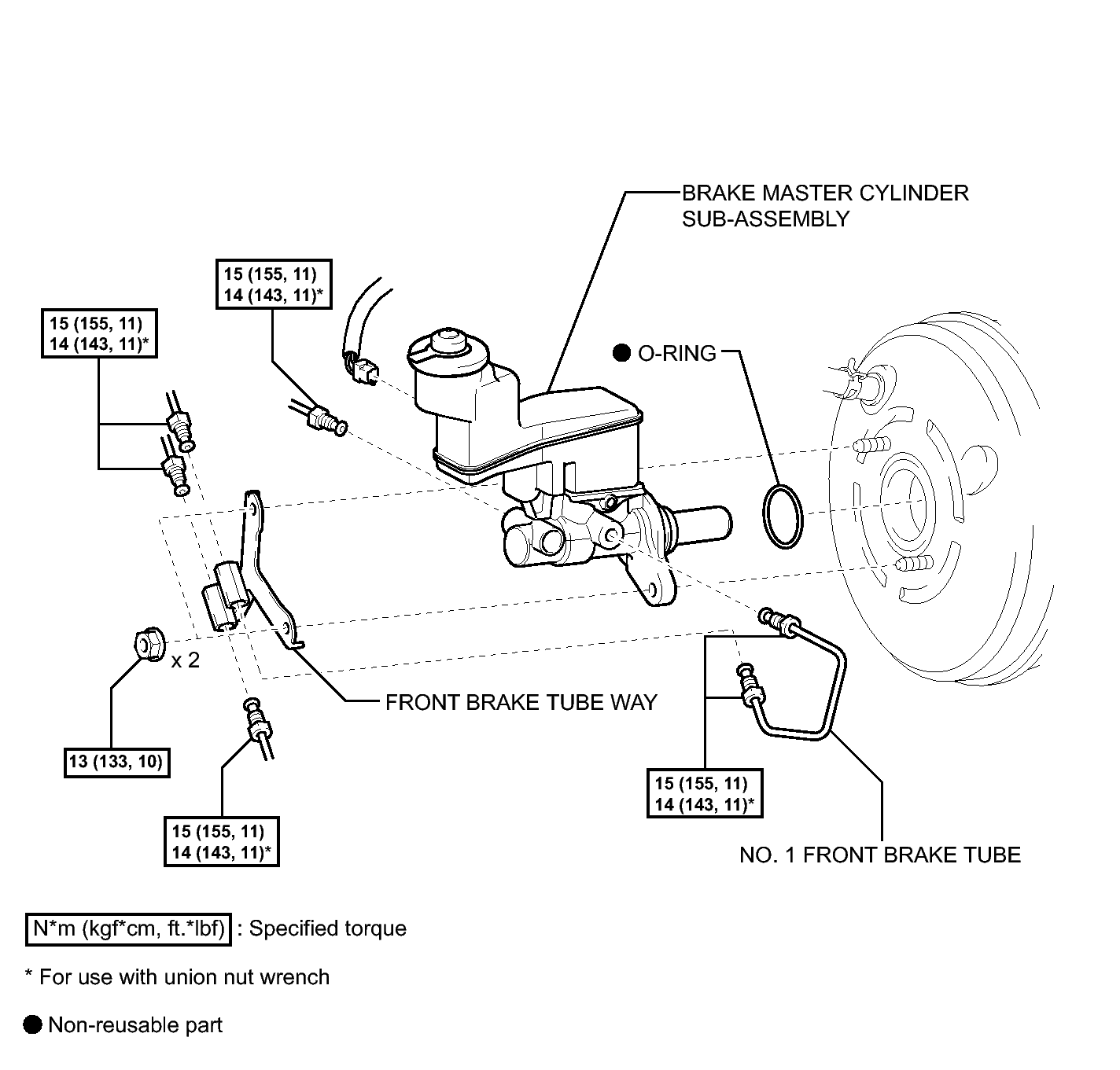

Fig 1: Brake Booster Replacement Components With Torque Specifications (2 Of 3)
GTY204596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

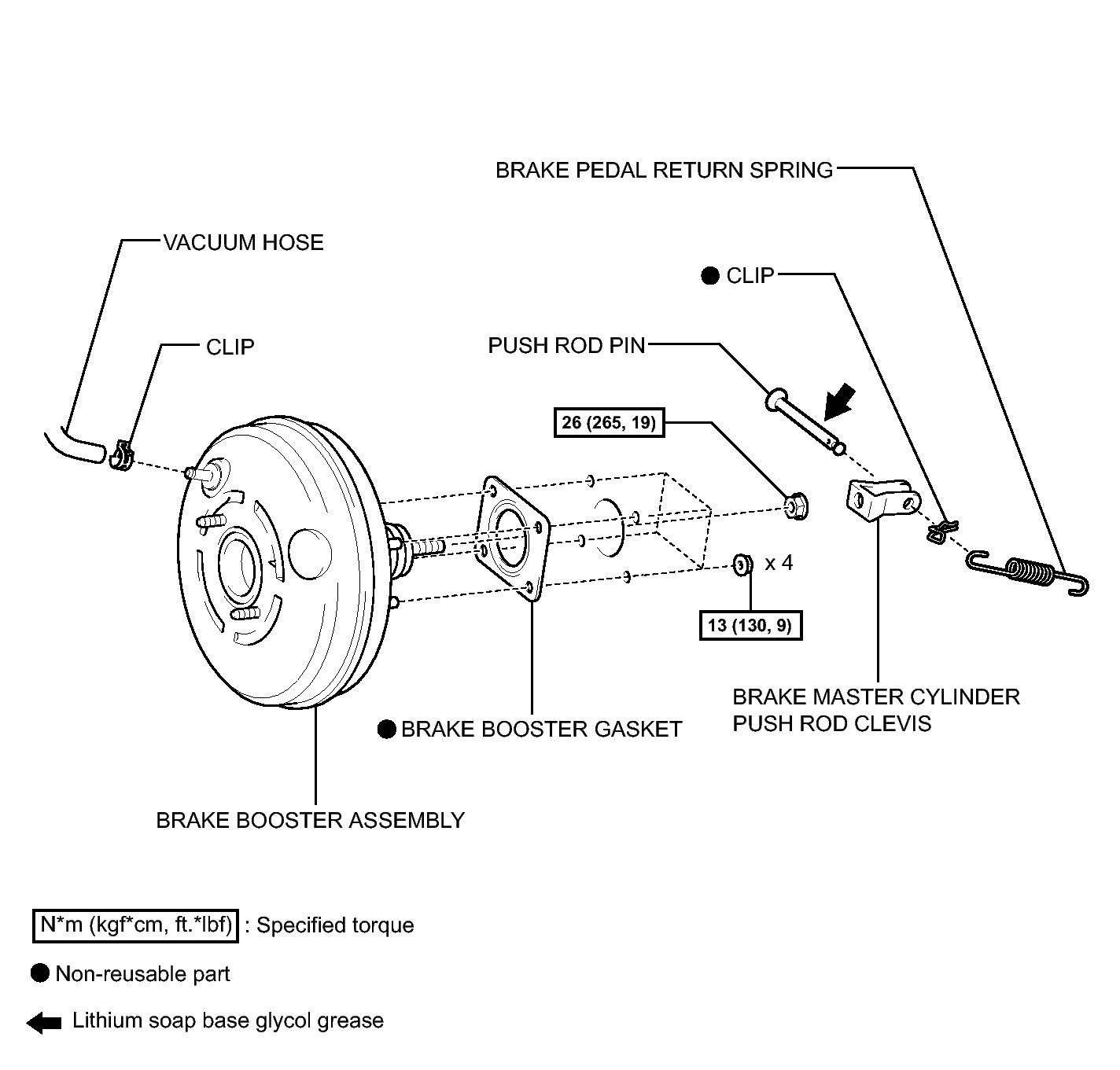

Fig 1: Identifying Brake Booster Replacement Components With Torque Specifications (3 Of 3)
GTY202535Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
