DTC P0617 Starter Relay Circuit High: Wiring Diagram

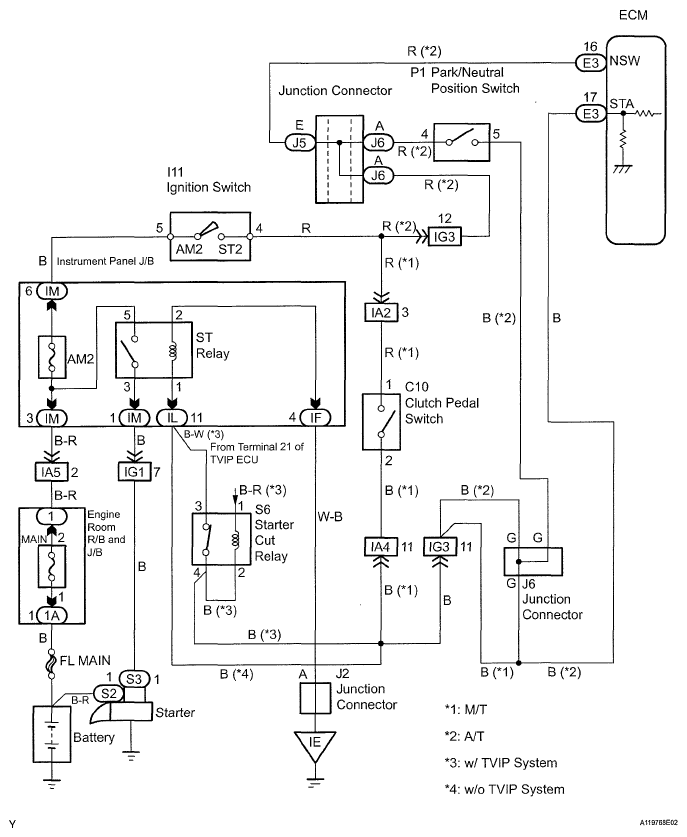

Fig 1: Starter Relay Circuit Diagram

G05574980

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
