Parking Brake Lever: Components

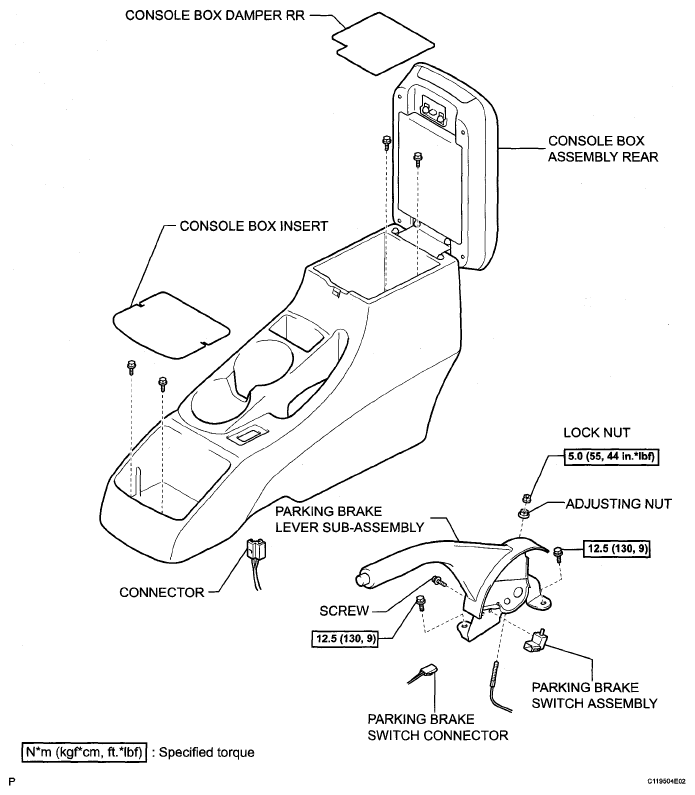

Fig 1: Parking Brake Lever Replacement Components With Torque Specifications (1 Of 3)
G05235473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Parking Brake Lever Components (2 Of 3)
G05235474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Parking Brake Lever Replacement Components With Torque Specifications (3 Of 3)
G05235475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
