Valve Body Assembly: Removal

REMOVE ENGINE UNDER COVER LH
DRAIN AUTOMATIC TRANSAXLE FLUID
1. Remove the drain plug, gasket and drain ATF.
2. Install a new gasket and drain plug.
  Torque: 18 N*m (180 kgf*cm, 13 ft.*lbf)
REMOVE AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY
1. Remove the 18 bolts, oil pan and gasket.
  NOTE: Some fluid will remain in the oil pan. Remove all pan bolts, and carefully remove the oil pan assembly.

  Fig 1: Identifying Automatic Transaxle Oil Pan Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 magnets from oil pan.

  Fig 2: Identifying Magnets
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Examine particles in pan.
  1. Remove the magnets and use them to collect any steel chips. Look carefully at the chips and particles in the pan and the magnet to anticipate what type of wear you will find in the transaxle.
    Steel (magnetic): bearing, gear and plate wear Brass (non-magnetic): bearing wear

    Fig 3: Identifying Steel Chips Using Magnet
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE VALVE BODY OIL STRAINER ASSEMBLY
1. Remove the 3 bolts and oil strainer.
  NOTE: Be careful as some fluid will come out with the oil strainer.

  Fig 4: Identifying Valve Body Oil Strainer Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMISSION VALVE BODY ASSEMBLY
1. Disconnect the 4 solenoid connectors.

  Fig 5: Identifying Solenoid Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and manual detent spring.

  Fig 6: Identifying Manual Detent Spring Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 17 bolts.

  Fig 7: Identifying Transmission Valve Body Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using needle-nose pliers, while disconnecting the manual valve connecting rod from the manual valve lever, remove the valve body with the manual valve together.

  Fig 8: Identifying Manual Valve Connecting Rod
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

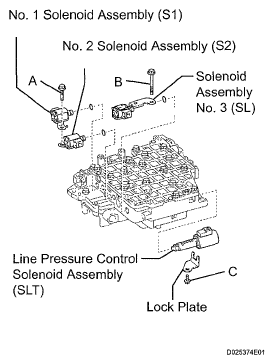

5. Remove the 2 bolts (A and B bolts) and 3 solenoid valves.
6. Remove the 3 O-rings from each of the solenoid valves.
7. Remove the bolt (C bolt), lock plate and line pressure control valve.
