Unlock Warning Switch Circuit: Procedure

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
  1. READ VALUE ON TECHSTREAM (UNLOCK WARNING SWITCH)
    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch on (IG) and turn the Techstream main switch on.
    3. Select the items below in the "DATA LIST" and read the display on the Techstream.
      BODY:

      Item Measurement Item/Display (Range) Normal Condition Diagnostic Note
      KEY UNLK WRN SW Unlock warning switch/ON or OFF ON: Ignition key inserted
      OFF: Ignition key is not inserted
      -

      OK

      When the ignition switch is operated, the display changes as shown above.

    NG → See step   2

    OK → PROCEED TO  PROBLEM SYMPTOMS TABLE  NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

  2. INSPECT MULTIPLEX NETWORK BODY ECU (KSW TERMINAL)
    1. Turn the ignition switch off.

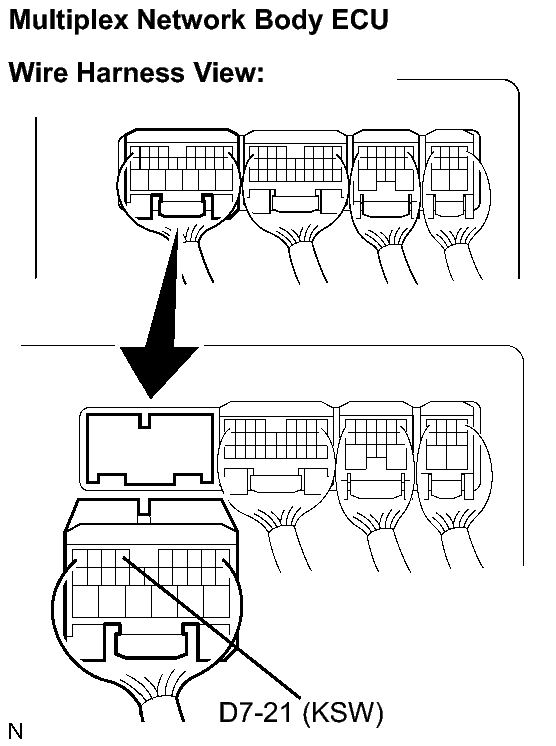

      Fig 1: Identifying Multiplex Network Body ECU (D7) Connector
      GTY210516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the multiplex network body ECU (D7) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Resistance

      Tester Connection Condition Specified Condition
      D7-21 (KSW) - Body ground Ignition key is inserted Below 1 Ω
      D7-21 (KSW) - Body ground Ignition key is not inserted 10 kΩ or higher

    NG → See step   3

    OK → PROCEED TO  PROBLEM SYMPTOMS TABLE  NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

  3. INSPECT UNLOCK WARNING SWITCH
    1. Disconnect the unlock warning switch connector.

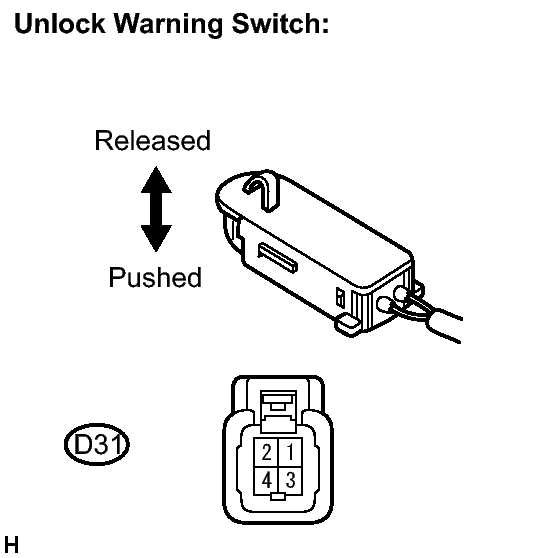

      Fig 2: Identifying Unlock Warning Switch
      GTY173462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Resistance

      Tester Connection Condition Specified Condition
      D31-1 - D31-2 Switch pushed
      (Ignition key is inserted)
      Below 1 Ω
      D31-1 - D31-2 Switch released
      (Ignition key is not inserted)
      10 kΩ or higher

    NG → REPLACE UNLOCK WARNING SWITCH

    OK → REPAIR OR REPLACE HARNESS OR CONNECTOR (BETWEEN BODY ECU, BODY GROUND - UNLOCK WARNING SWITCH)
