Parts Location: Illustration

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

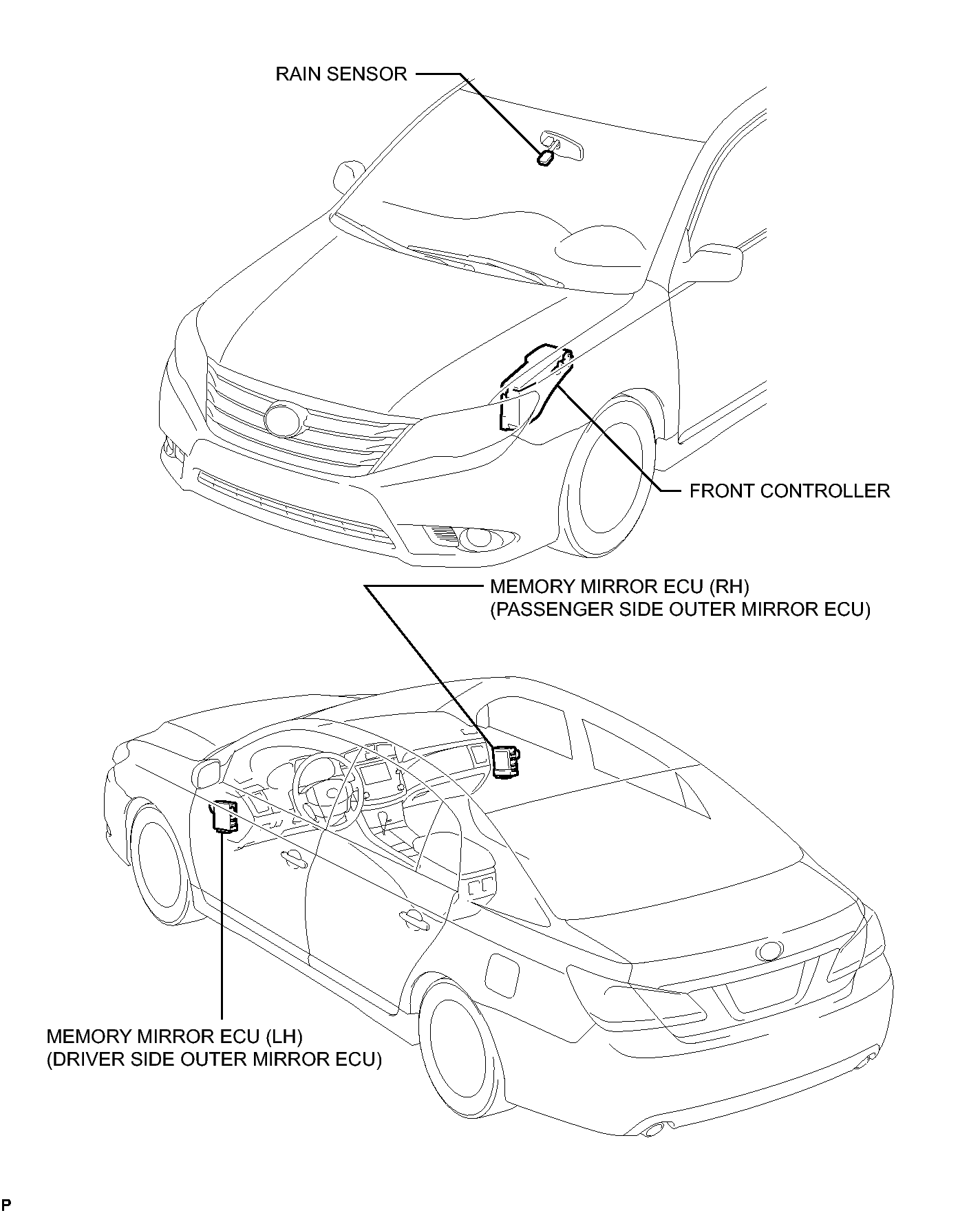

Fig 1: Identifying Multiplex Communication System Components Location (1 Of 2)
GTY295398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

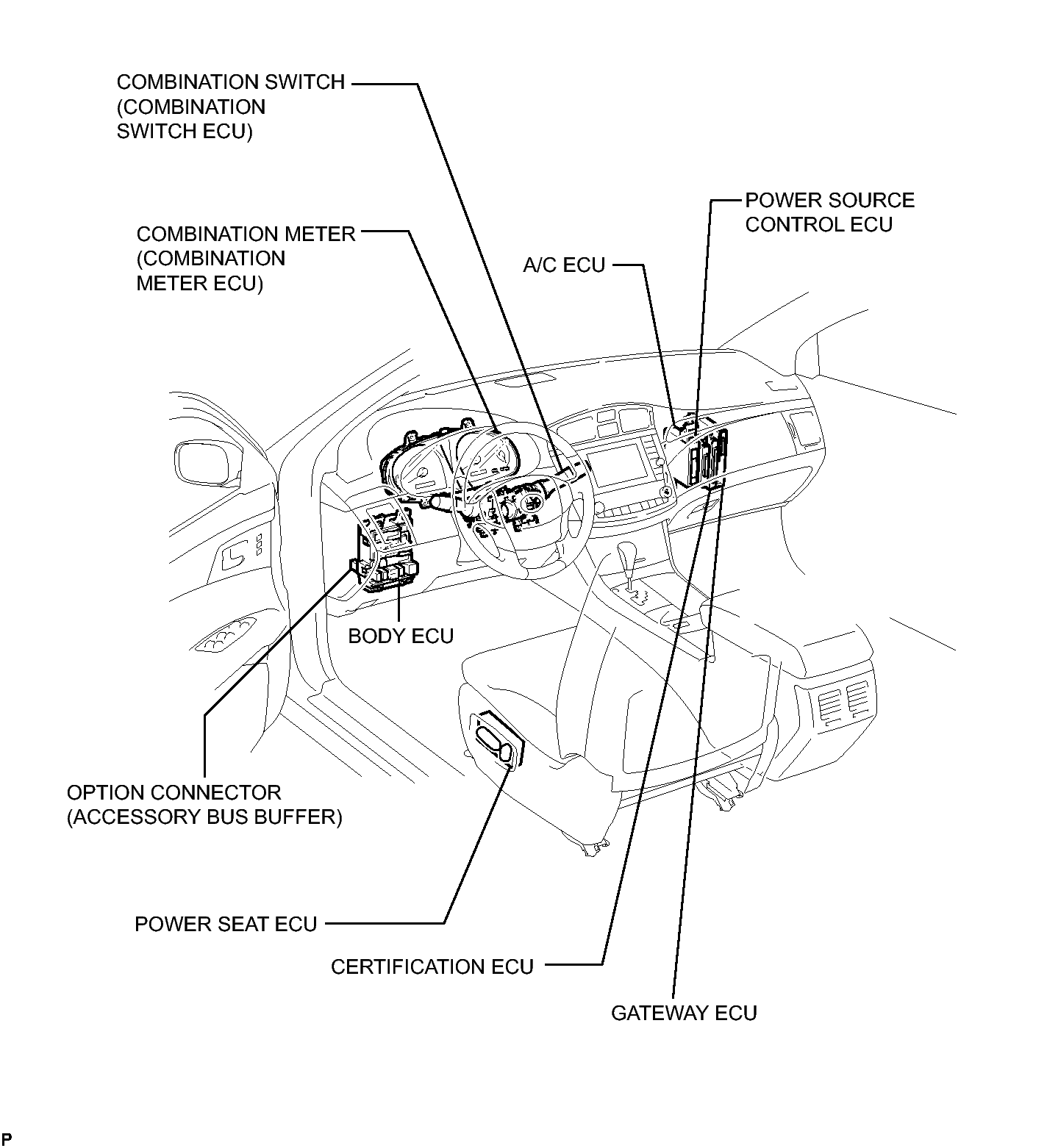

Fig 1: Identifying Multiplex Communication System Components Location (2 Of 2)
GTY298935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
