Oil Pump: Reassembly: Reassembly

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL OIL PUMP COVER
1. Coat the drive and driven rotors with engine oil and place them into the timing chain cover with the marks facing outward (oil pump cover side). Check that the rotors revolve smoothly.

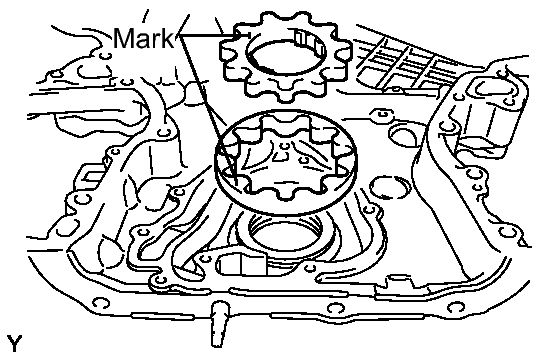

  Fig 1: Location of Mark On Drive And Driven Rotors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the oil pump cover with the 8 bolts.

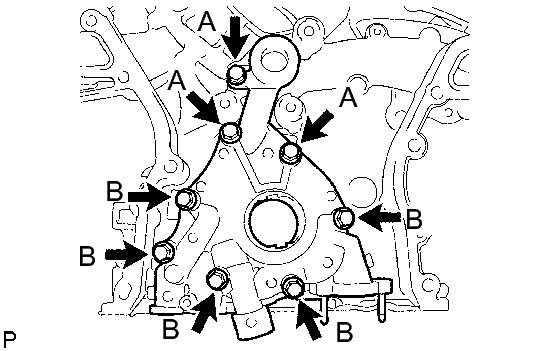

  Fig 2: Locating Oil Pump Cover With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 9.1 N*m (93 kgf*cm, 81 in.*lbf)

  HINT:
  - Bolt length:
    - 22 mm (0.87 in.) for bolt A
    - 40 mm (1.58 in.) for bolt B
INSTALL OIL PUMP RELIEF VALVE
1. Coat the oil pump relief valve with engine oil.

  Fig 3: Locating Oil Pump Relief Valve Plug
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Insert the relief valve and relief valve spring into the oil pump cover hole.
3. Using a 27 mm socket wrench, install the plug.
  Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)
