Center Junction Block
Center Junction Block
Behind the Combination Meter
(See
Figure
)

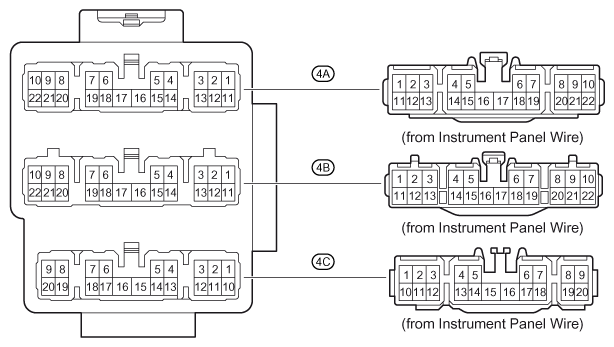

Fig 1: Center J/B Connector Locations
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
