Engine Coolant Temperature Sensor: Components

Fig 1: Identifying Engine Coolant Temperature Sensor Replacement Components With Torque Specifications (1 Of 2)
G05628266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

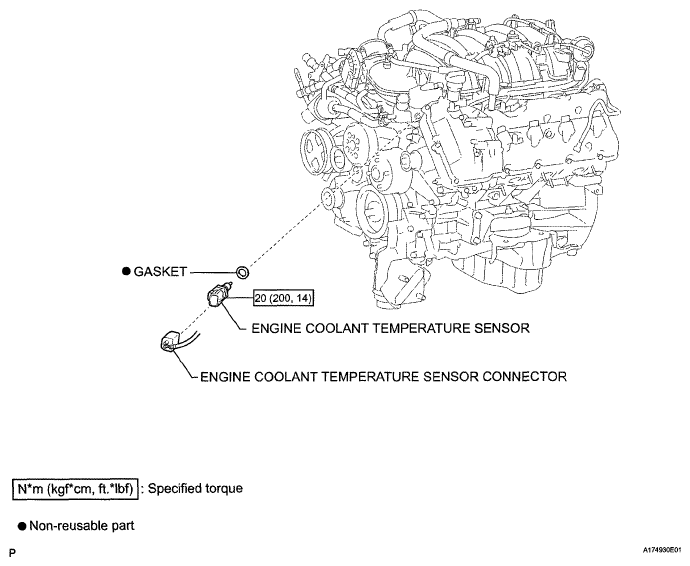

Fig 2: Identifying Engine Coolant Temperature Sensor Replacement Components With Torque Specifications (2 Of 2)
G05628267Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
