Cranking Holding Function Circuit: Wiring Diagram

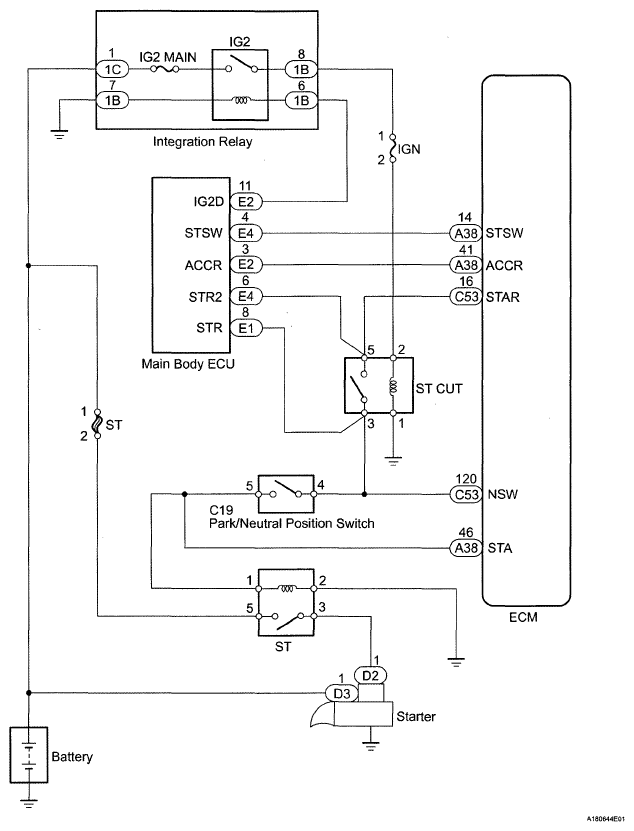

Fig 1: Cranking Holding Function - Wiring Diagram

G05628180

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
