Light Control Rheostat: Inspection

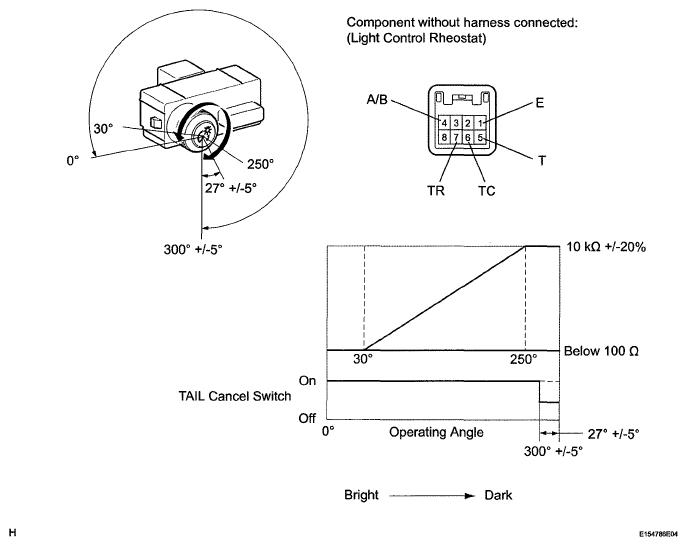

- INSPECT LIGHT CONTROL RHEOSTAT
- Inspect the light control rheostat.
- Measure the resistance according to the value(s) in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard Resistance
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Switch Condition Specified Condition 6 (TC) - 1 (E) TAIL cancel switch off → on 10 kΩ or higher → Below 1 Ω 5 (T) - 1 (E) Always 10 kΩ or higher 7 (TR) - 1 (E) Light control rheostat fully turned right → fully turned left 10 kΩ or higher → Below 100 Ω
- Measure the resistance according to the value(s) in the table below.
- Inspect the trip switch.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Switch Condition Specified Condition 4 (A/B) - 1 (E) TRIP switch on (Pushed) Below 200 Ω TRIP switch off (Not Pushed) 1 MΩ or higher If the result is not as specified, replace the rheostat.
- Measure the resistance according to the value(s) in the table below.
- Inspect the light control rheostat.
