Taillight and Illumination System: Notes

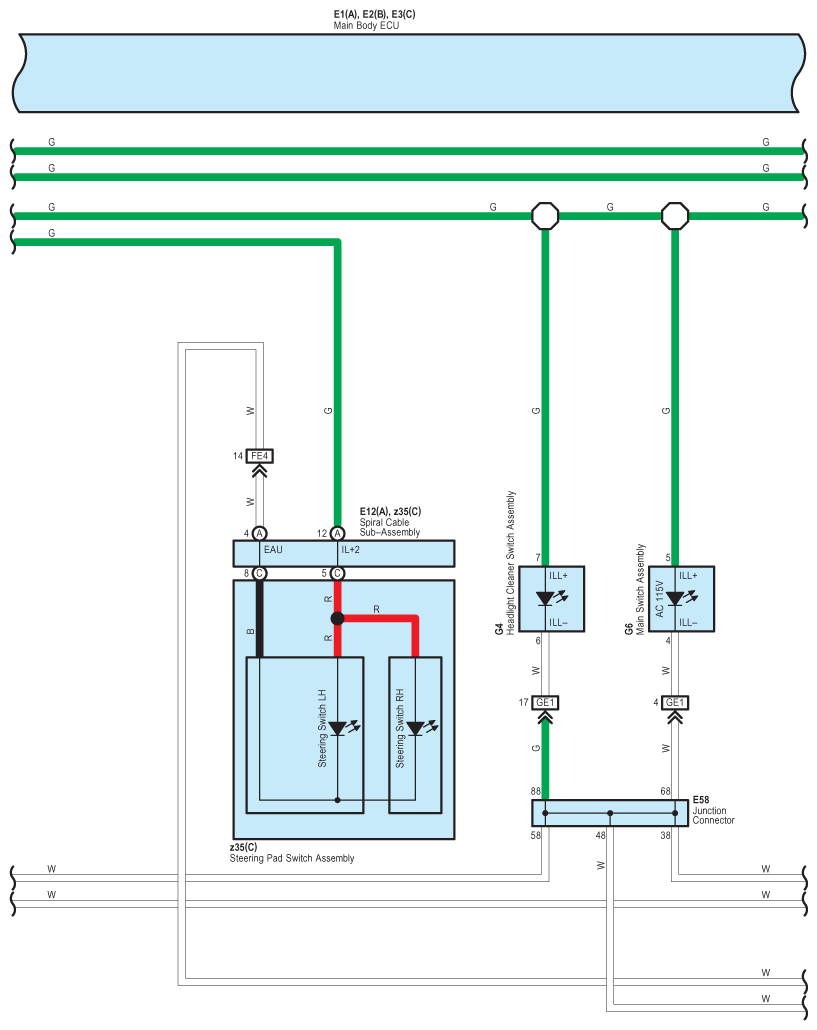

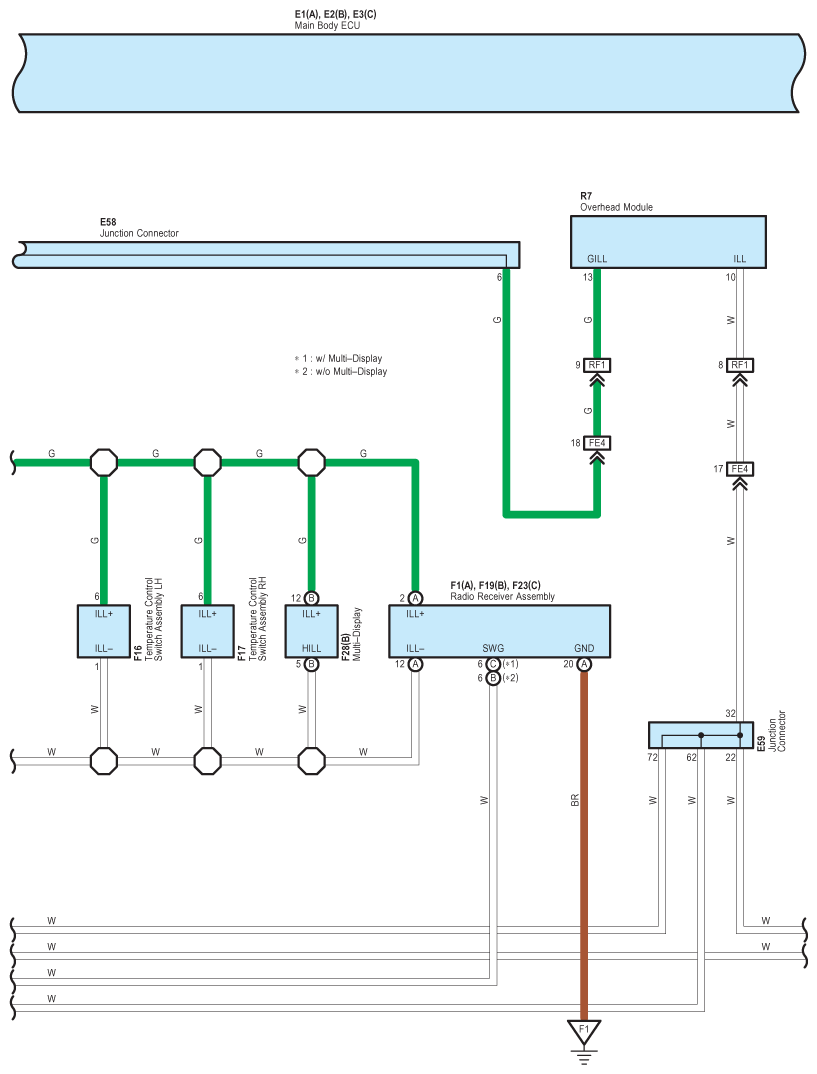

Fig 1: Taillight And Illumination - Circuit Diagram (1 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

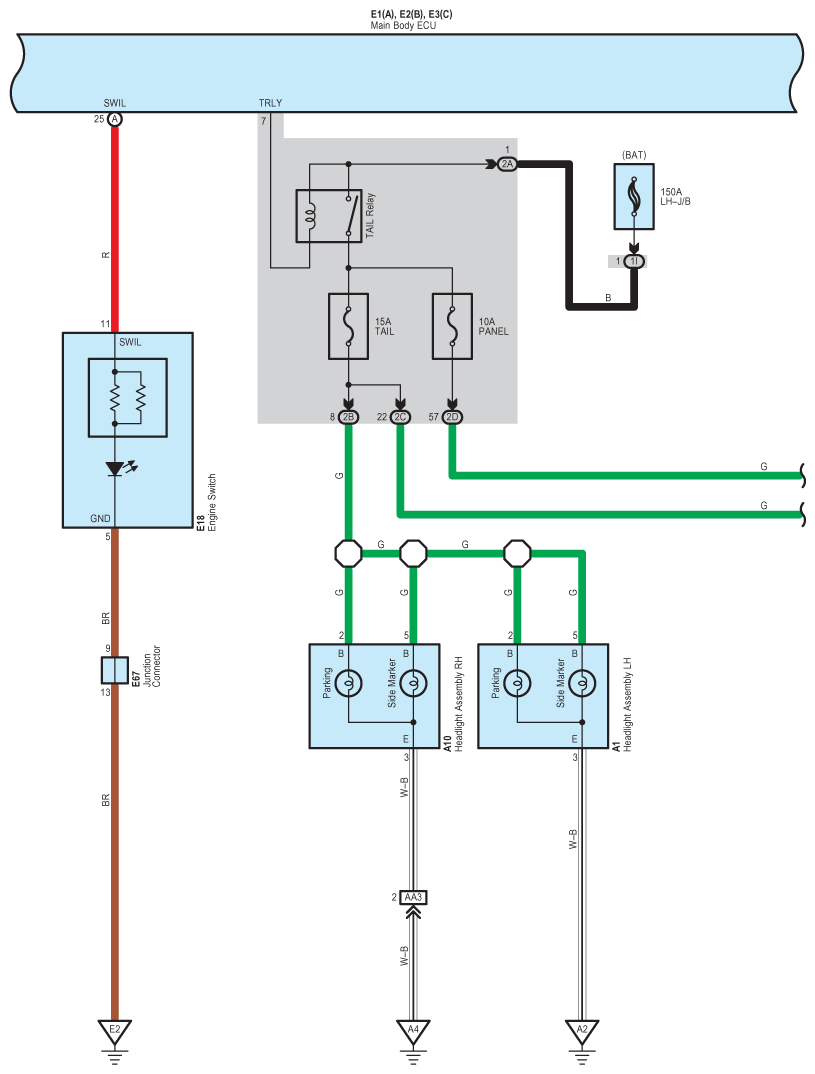

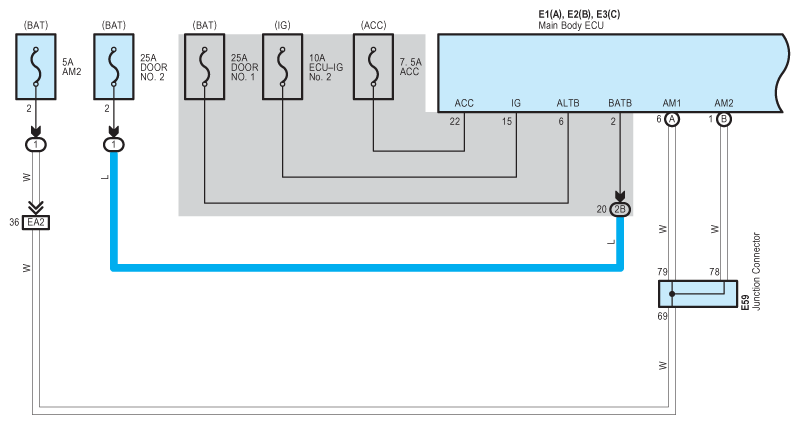

Fig 2: Taillight And Illumination - Circuit Diagram (2 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

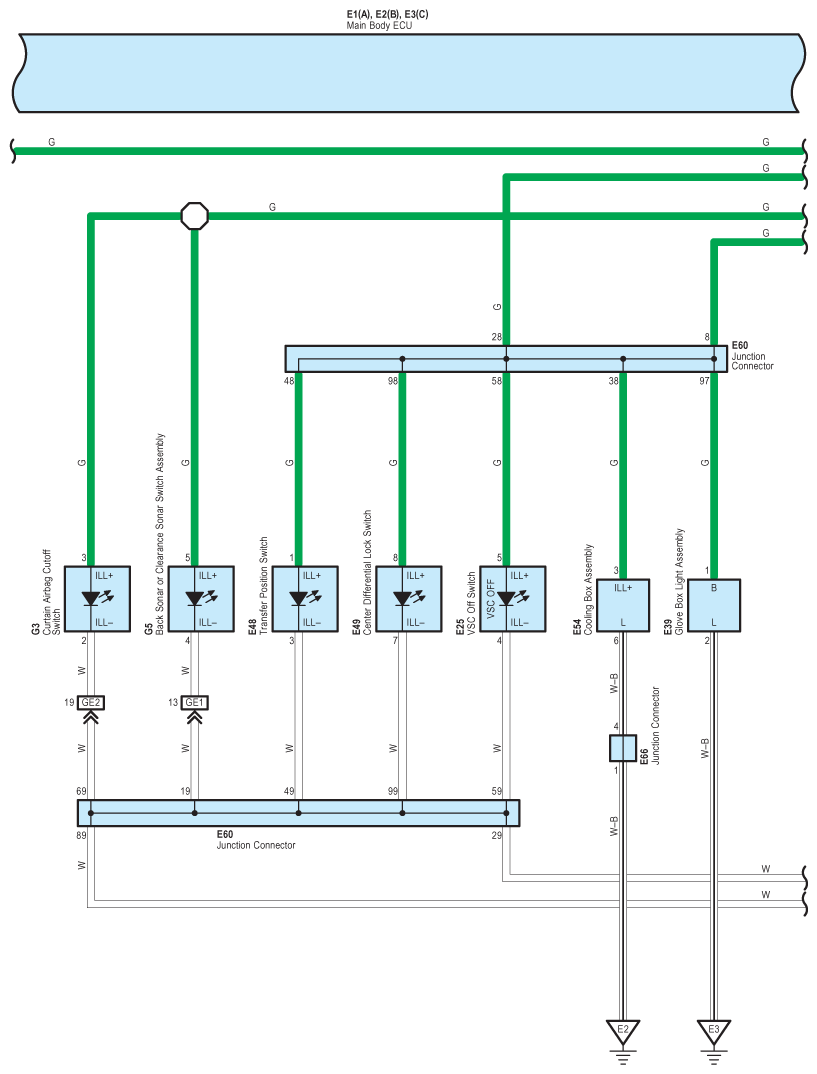

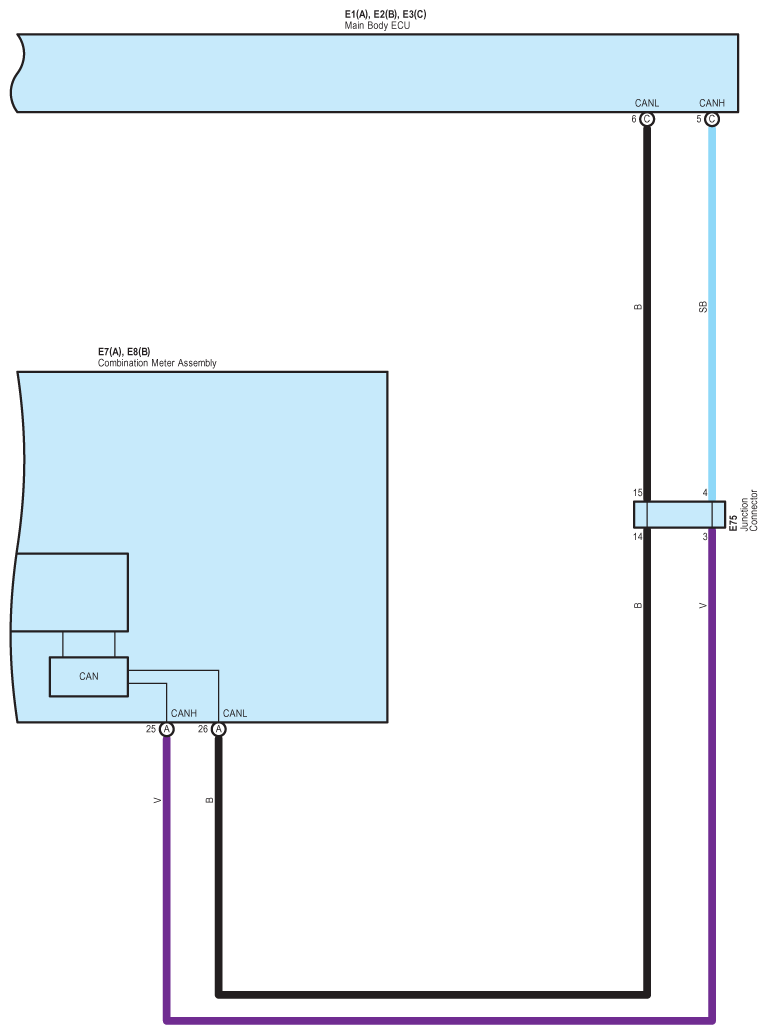

Fig 3: Taillight And Illumination - Circuit Diagram (3 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

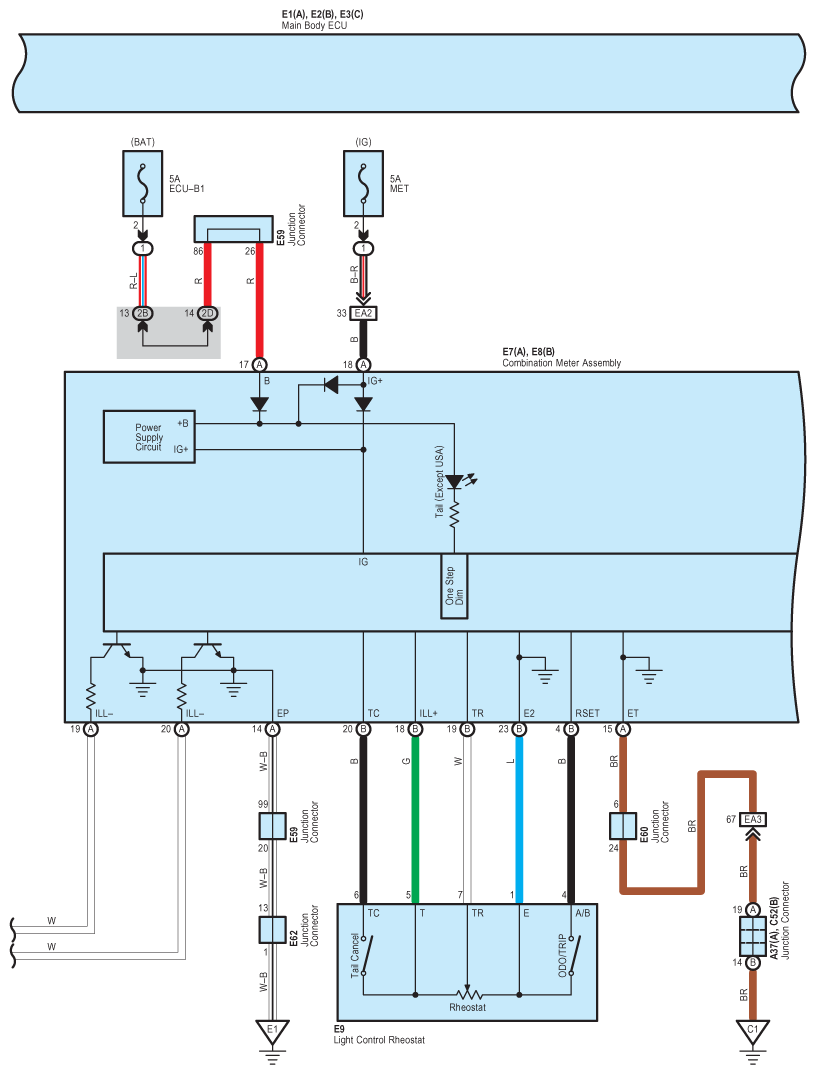

Fig 4: Taillight And Illumination - Circuit Diagram (4 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

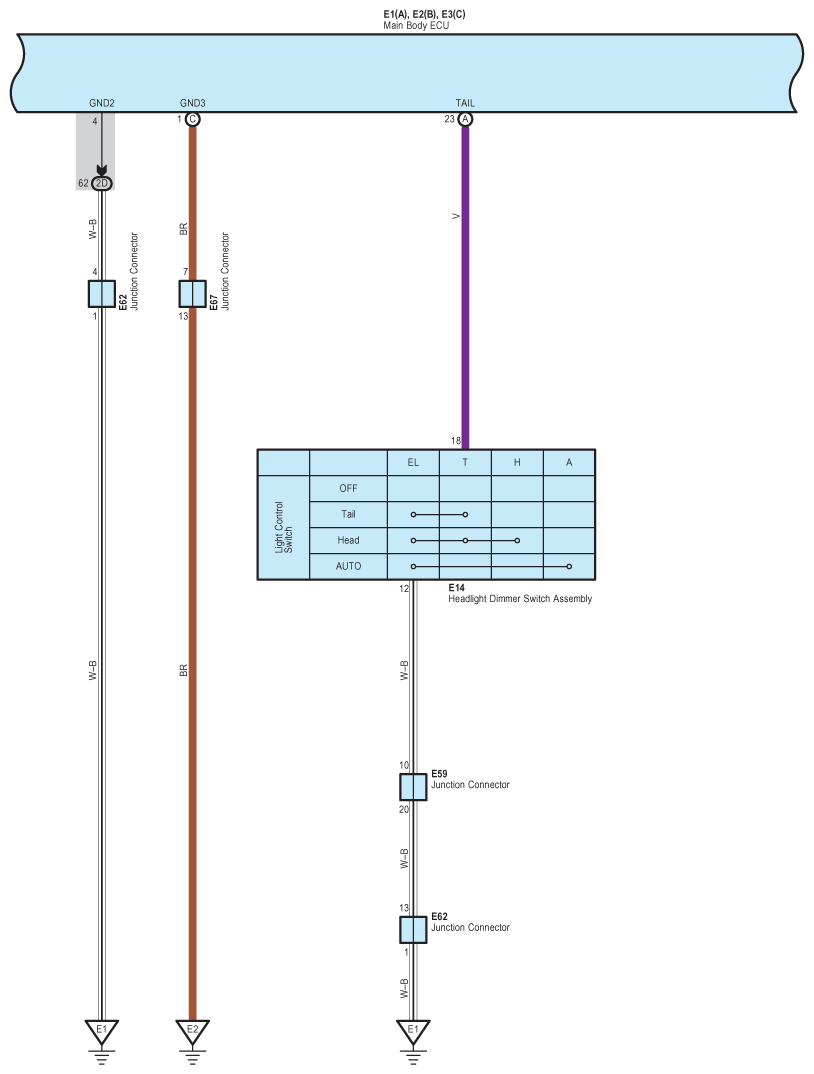

Fig 5: Taillight And Illumination - Circuit Diagram (5 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

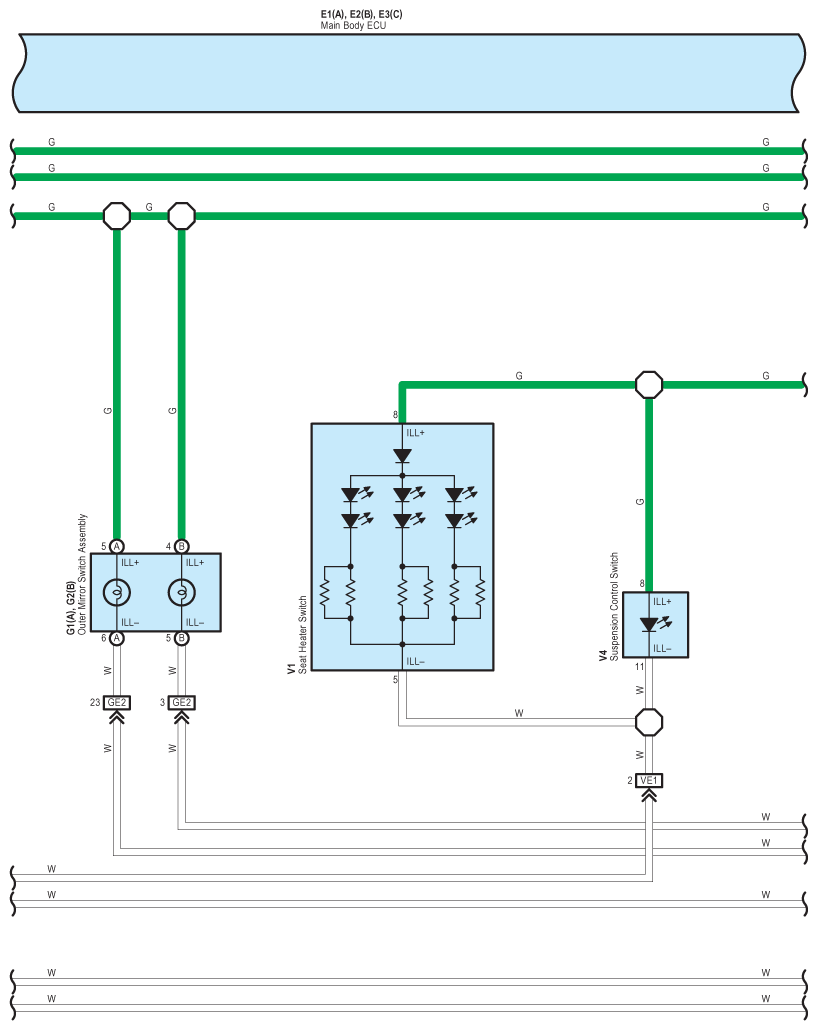

Fig 6: Taillight And Illumination - Circuit Diagram (6 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

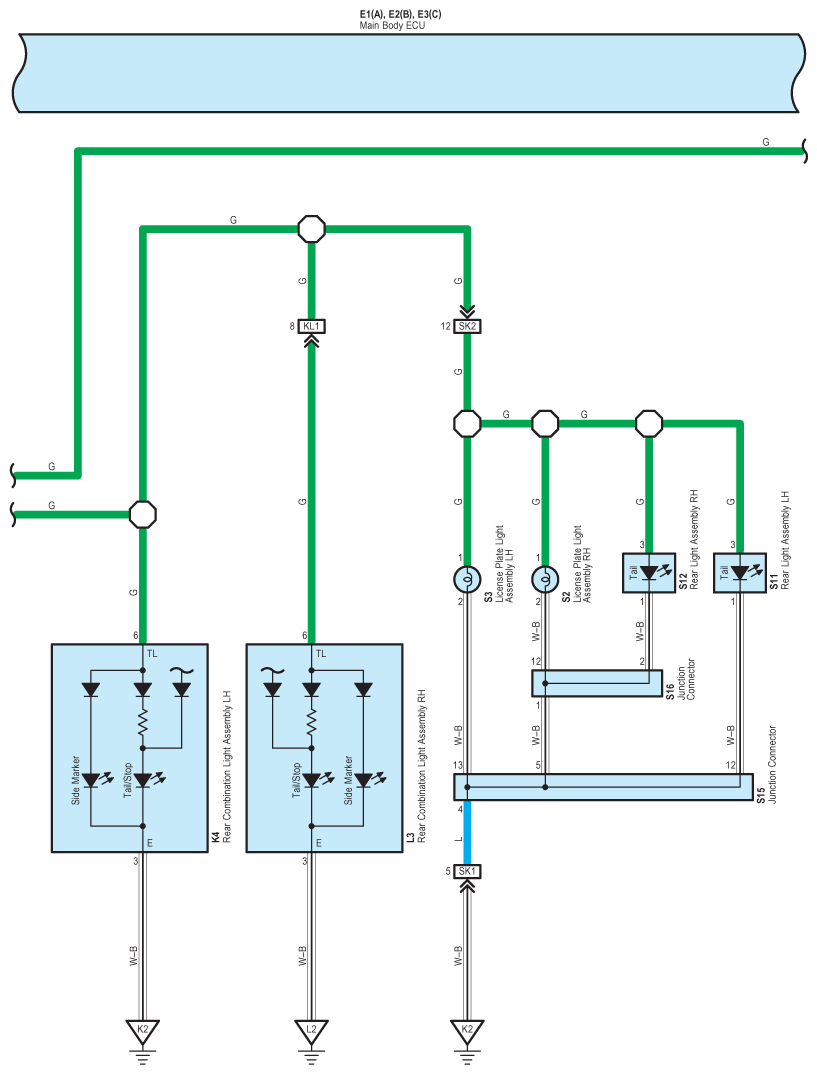

Fig 7: Taillight And Illumination - Circuit Diagram (7 Of 11)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

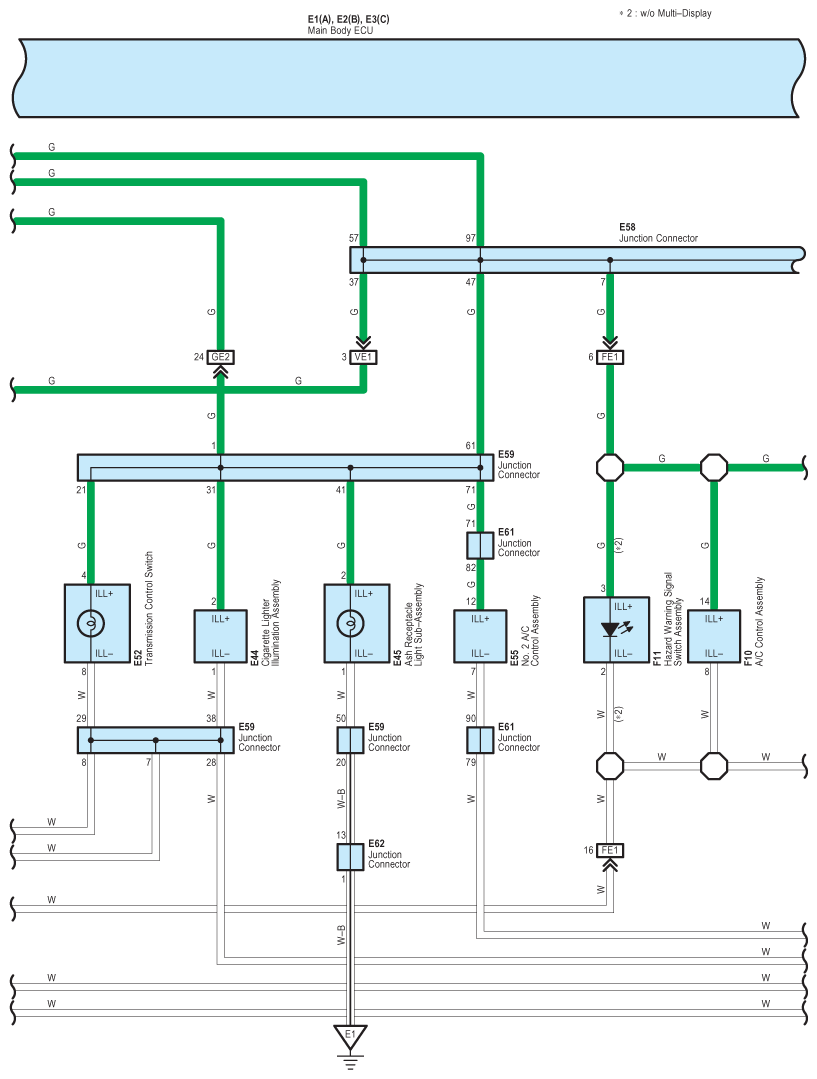

Fig 8: Taillight And Illumination - Circuit Diagram (8 Of 11)

Fig 9: Taillight And Illumination - Circuit Diagram (9 Of 11)

Fig 10: Taillight And Illumination - Circuit Diagram (10 Of 11)

Fig 11: Taillight And Illumination - Circuit Diagram (11 Of 11)
