Seat Heater System (Rear): Notes

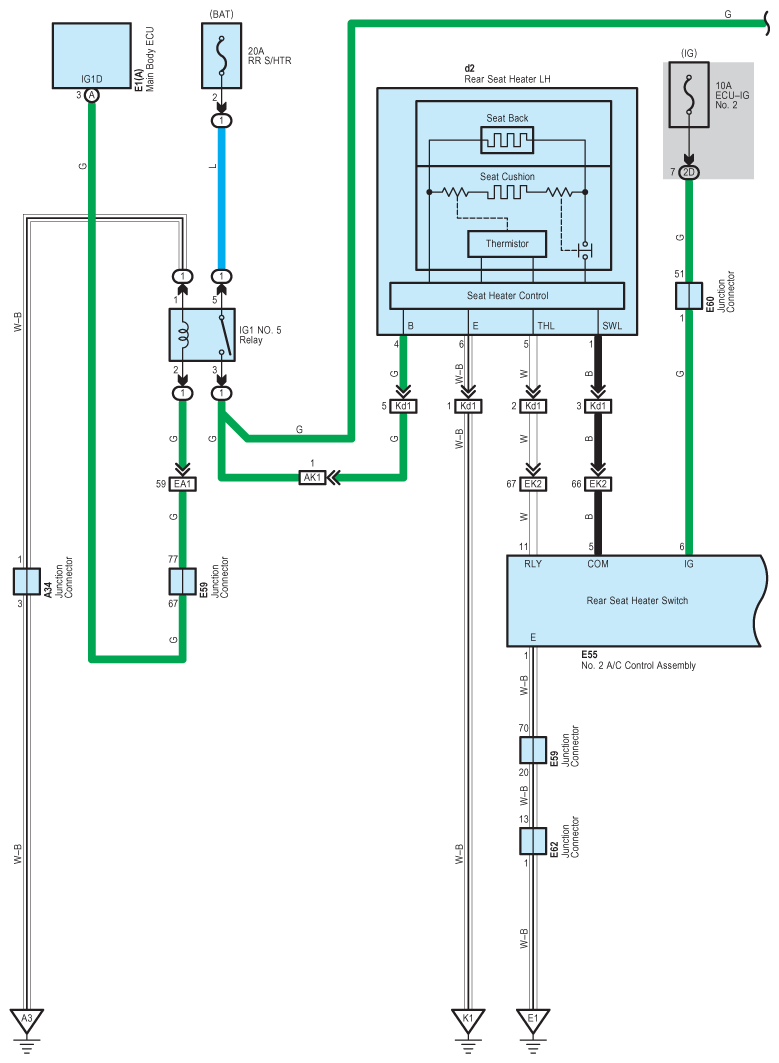

Fig 1: Seat Heater (Rear) - Circuit Diagram (1 Of 2)
G07600295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

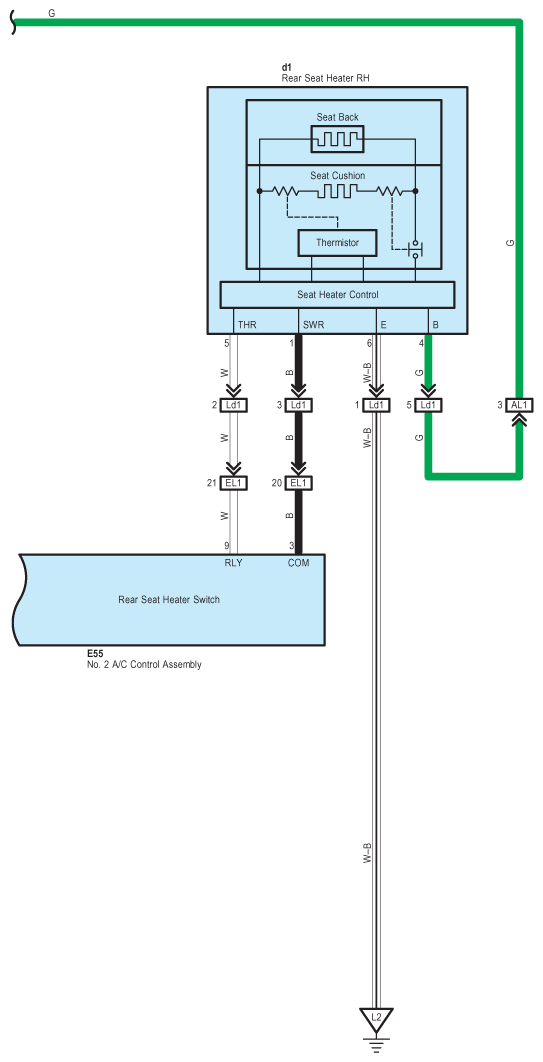

Fig 2: Seat Heater (Rear) - Circuit Diagram (2 Of 2)
G07600296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
