Seat Heater System (Front): Notes

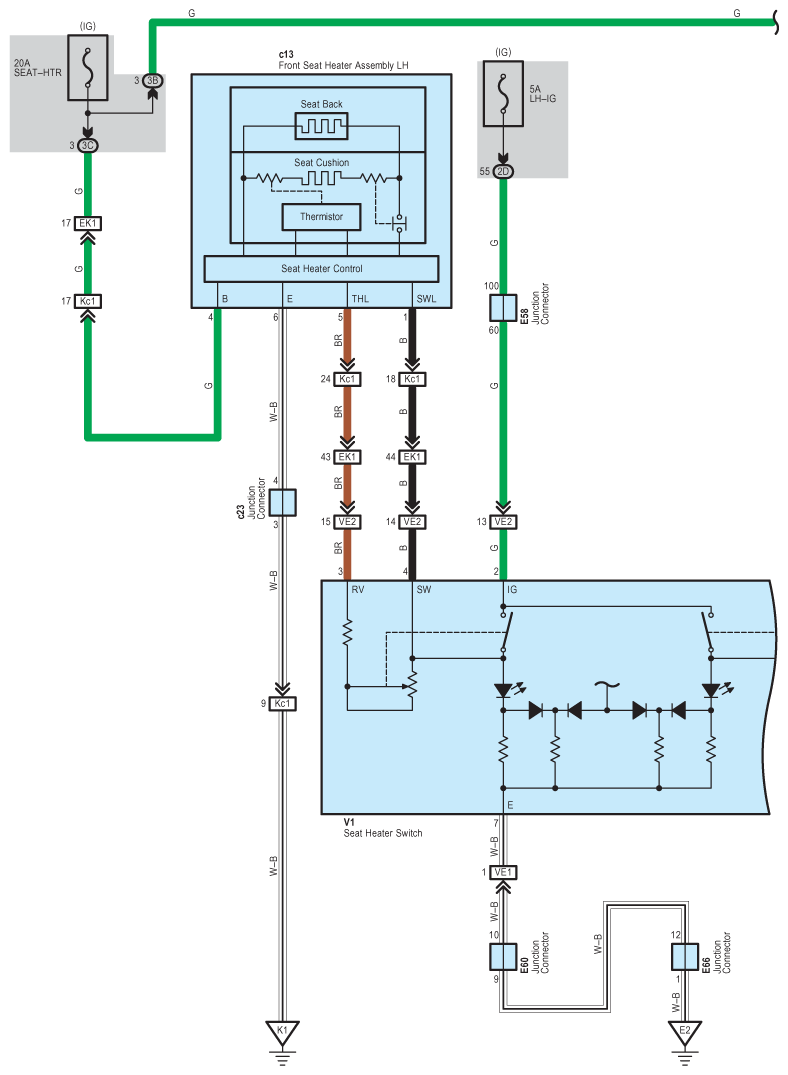

Fig 1: Seat Heater (Front) - Circuit Diagram (1 Of 2)
G07600293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

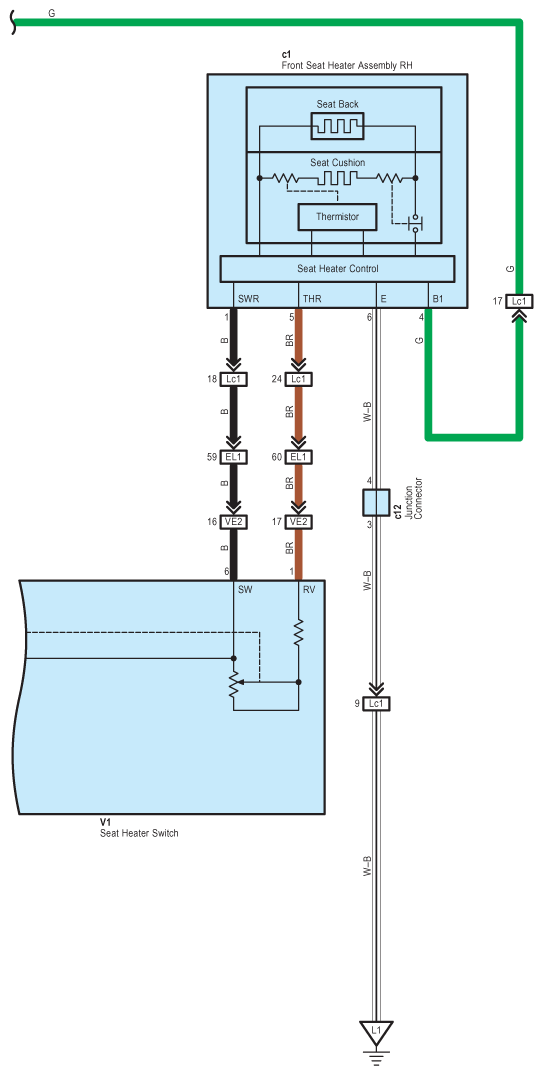

Fig 2: Seat Heater (Front) - Circuit Diagram (2 Of 2)
G07600294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
