Power Seat System for Driver's Seat: Notes

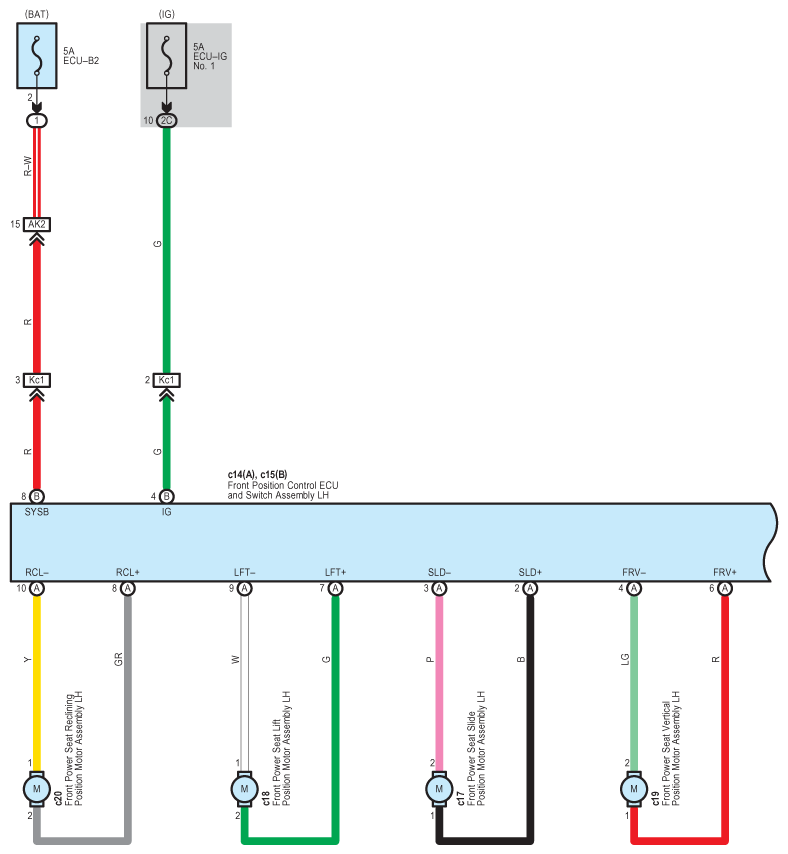

Fig 1: Power Seat For Driver's Seat - Circuit Diagram (1 Of 4)
G07600268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

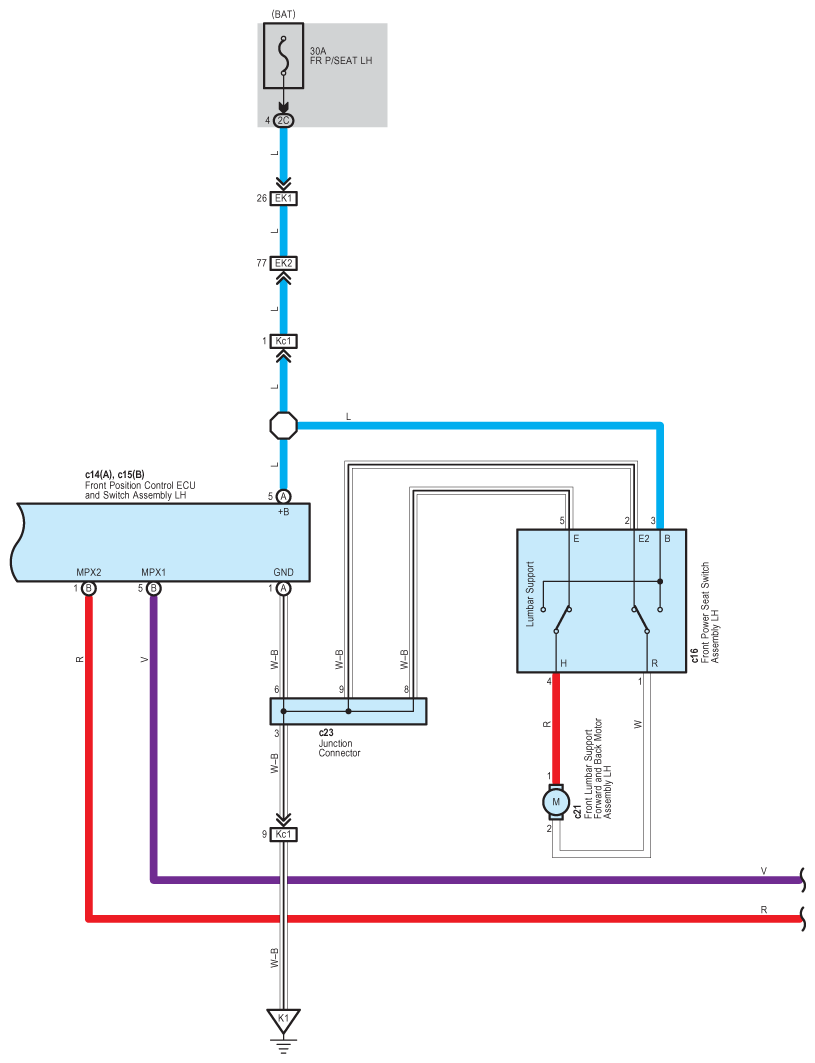

Fig 2: Power Seat For Driver's Seat - Circuit Diagram (2 Of 4)
G07600269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

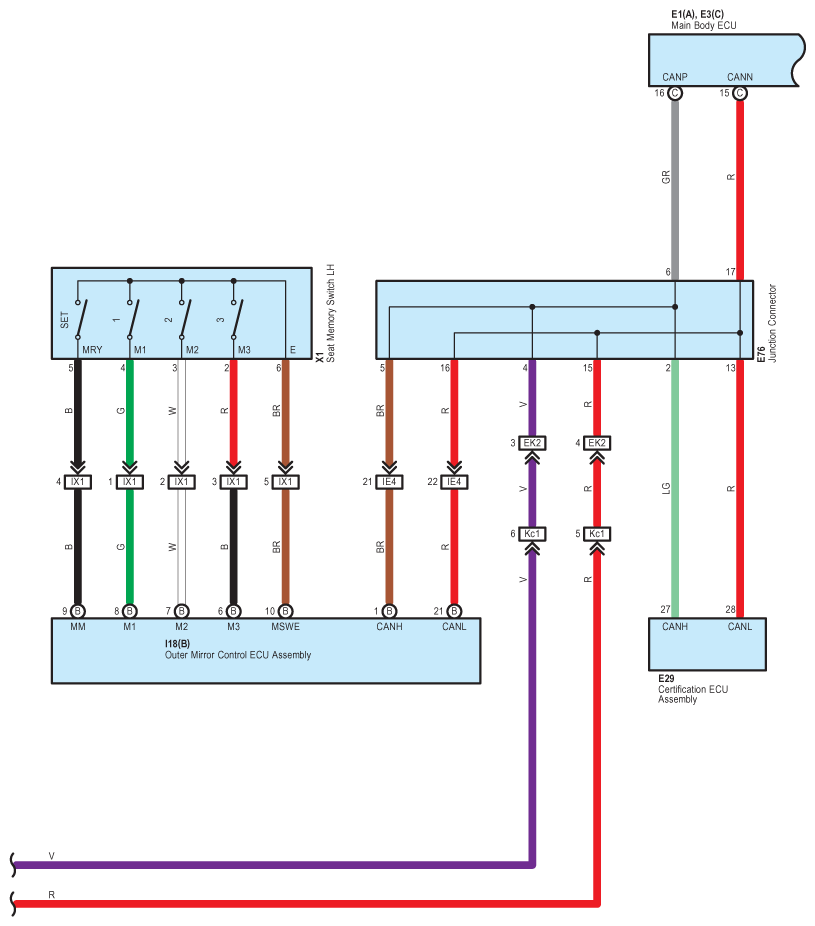

Fig 3: Power Seat For Driver's Seat - Circuit Diagram (3 Of 4)
G07600270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

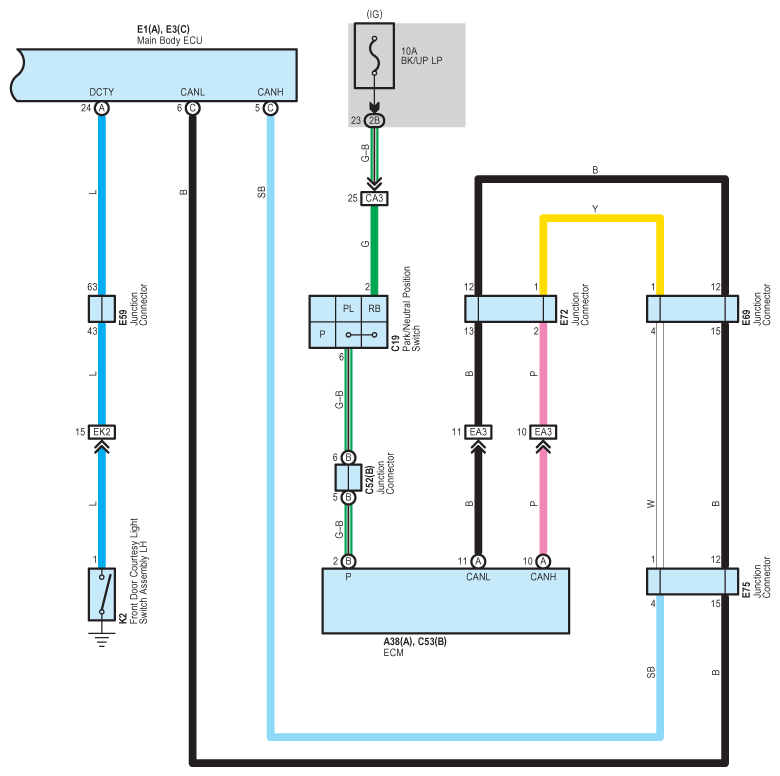

Fig 4: Power Seat For Driver's Seat - Circuit Diagram (4 Of 4)
G07600271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
