Rear Door Lock: Components

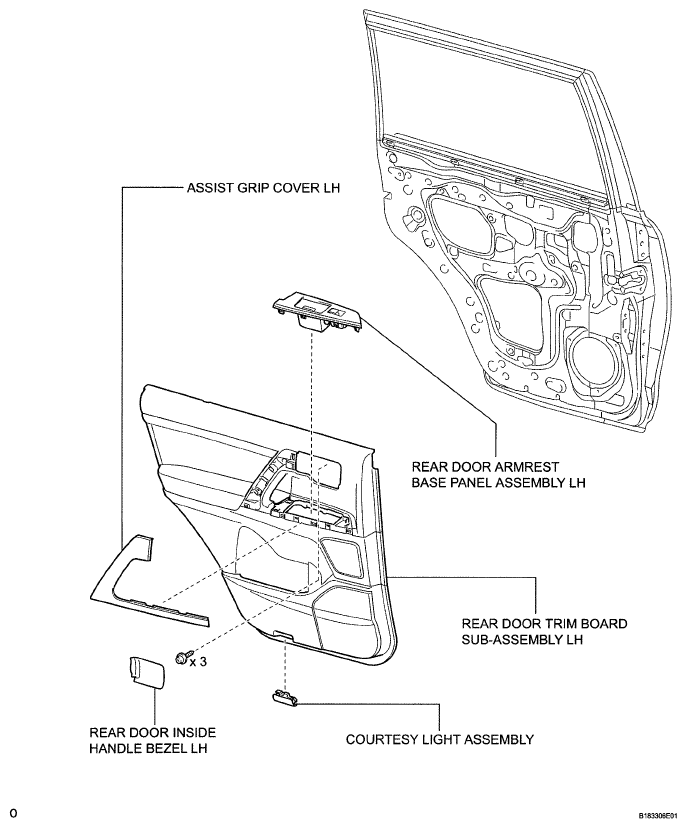

Fig 1: Identifying Rear Door Lock Replacement Components With Torque Specifications (1 Of 2)
G05639777Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

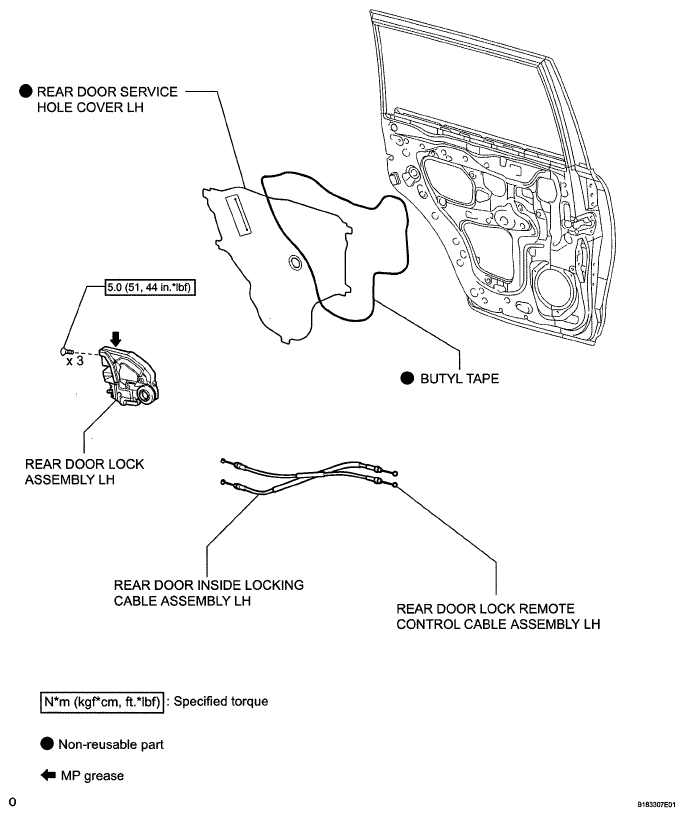

Fig 2: Identifying Rear Door Lock Replacement Components With Torque Specifications (2 Of 2)
G05639778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
