Back Door Lock: Inspection

Fig 1: Locating Back Door Lock Assembly Bolts & Lock

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

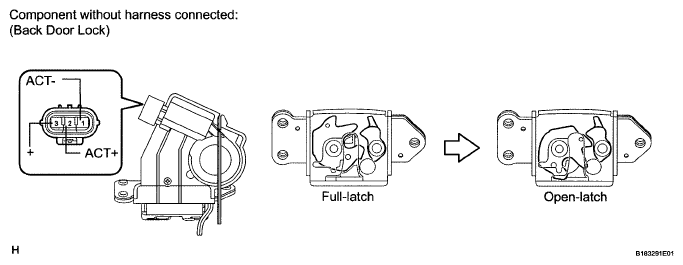

Fig 2: Setting Back Door Lock To Full-Latch Position

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Set the back door lock to the full-latch position.
2. Apply battery voltage to the door motor connector and check the operation of the door lock motor.

   OK

   MEASUREMENT SPECIFIED CONDITION CHART



   Measurement Condition	Specified Condition
   Battery positive (+) → 2 (ACT+) Battery negative (-) → 1 (ACT-)	Moves to open-latch position

   If the result is not as specified, replace the back door lock assembly.

3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

If the result is not as specified, replace the back door lock assembly.
