Ignition Coil And Spark Plug: Components

Fig 1: Identifying Ignition Coil And Spark Plug Replacement Components With Torque Specifications (1 Of 4)
G05640148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Ignition Coil And Spark Plug Replacement Components With Torque Specifications (2 Of 4)
G05640149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Ignition Coil And Spark Plug Replacement Components With Torque Specifications (3 Of 4)
G05640150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

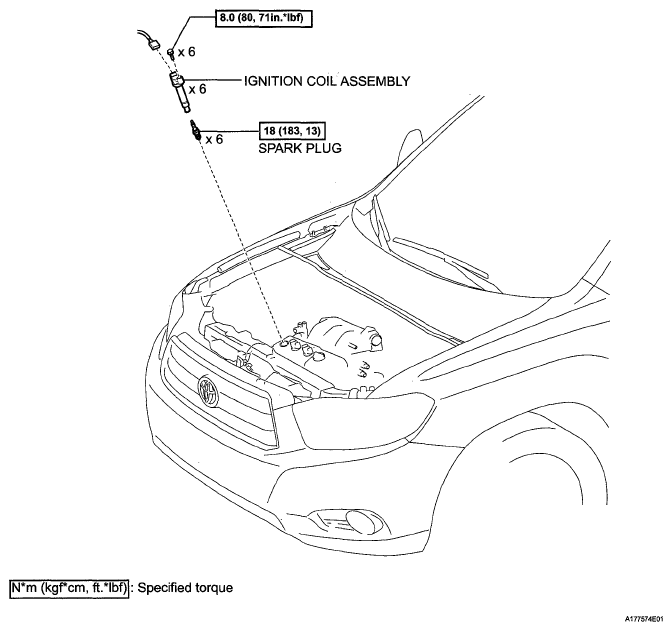

Fig 4: Identifying Ignition Coil And Spark Plug Replacement Components With Torque Specifications (4 Of 4)
G05640151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
