Camshaft Oil Control Valve: Components

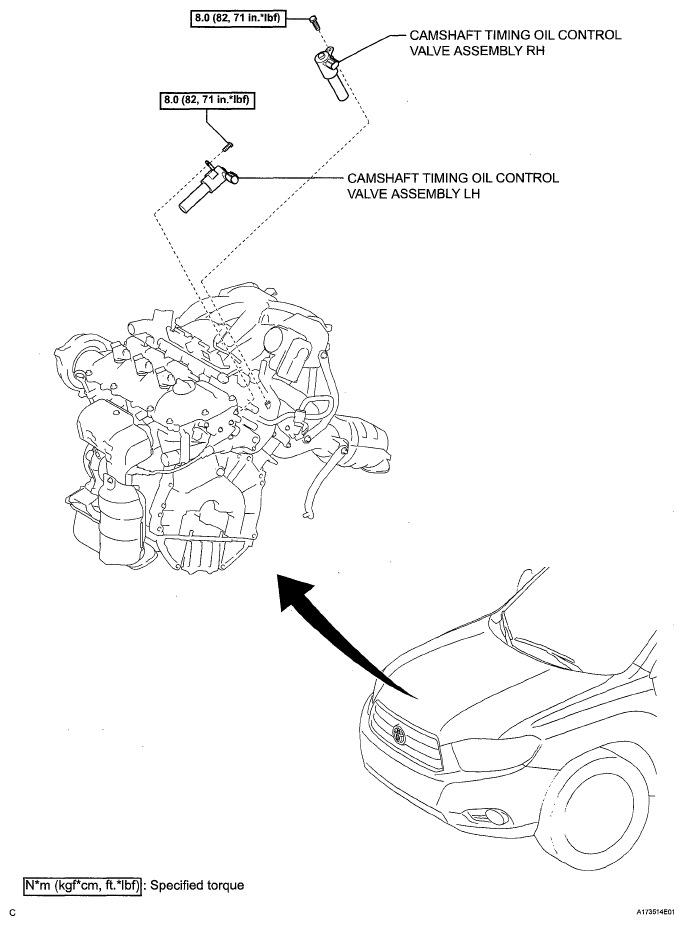

Fig 1: Identifying Camshaft Oil Control Valve Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

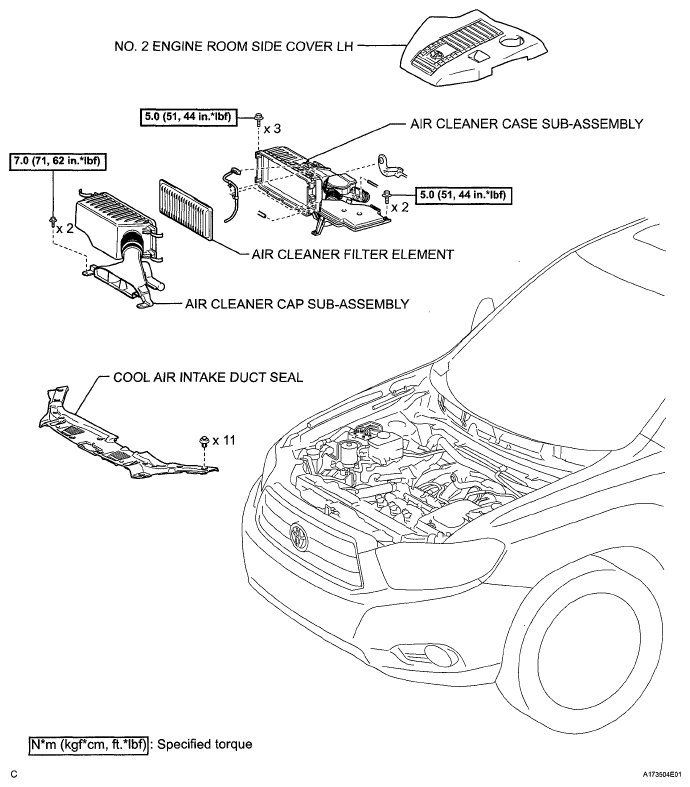

Fig 2: Throttle Body Replacement Components Replacement With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Camshaft Oil Control Valve Replacement Components With Torque Specifications (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
