VACUUM SWITCHING VALVE (Engine Mounting): Components

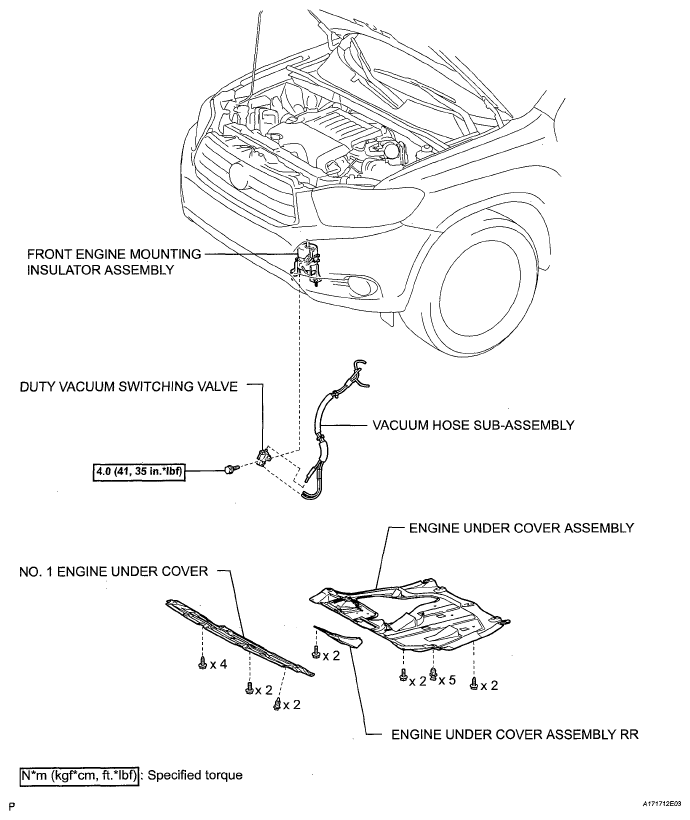

Fig 1: Vacuum Switching Valve (Engine Mounting) Replacement Components With Torque Specifications

G05413995

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
