Transfer Case -VF2A
>>
Transfer System
>>
System Diagram
System Diagram

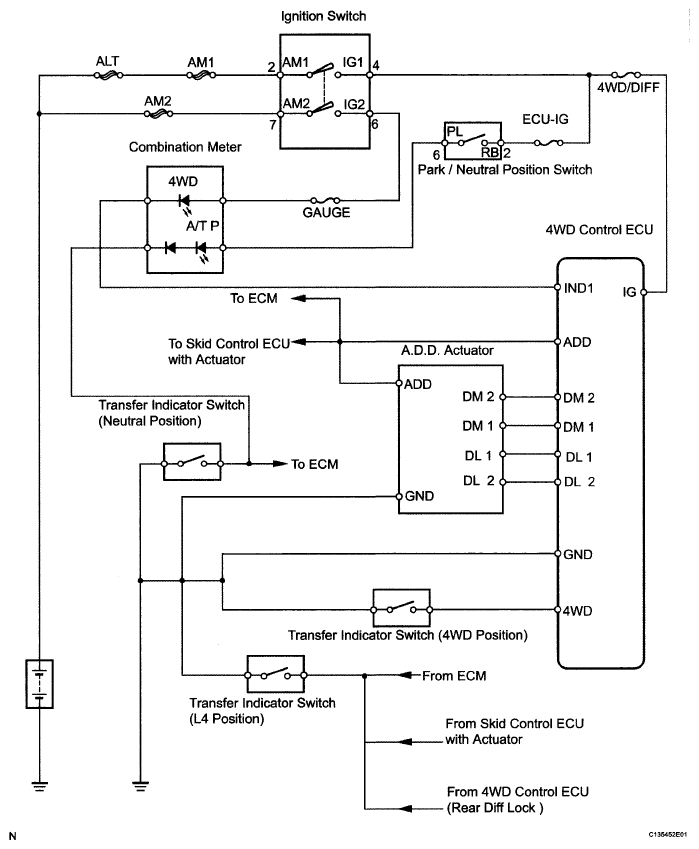

Fig 1: Identifying Transfer System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
