DTC P0230 Fuel Pump Primary Circuit: Wiring Diagram

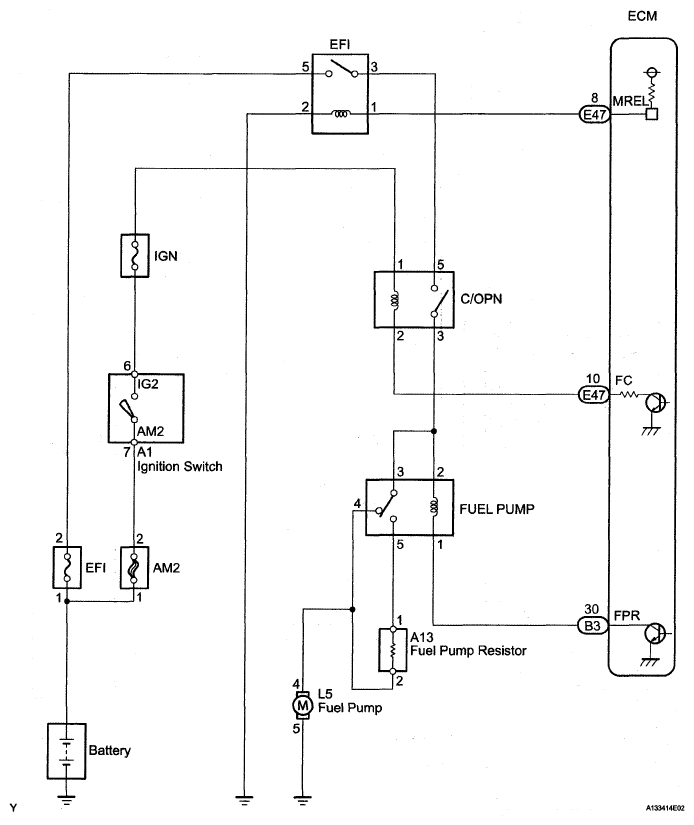

Fig 1: Identifying Fuel Pump Primary Circuit - Wiring Diagram

G05108699

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
