Rear Axle Shaft: Components

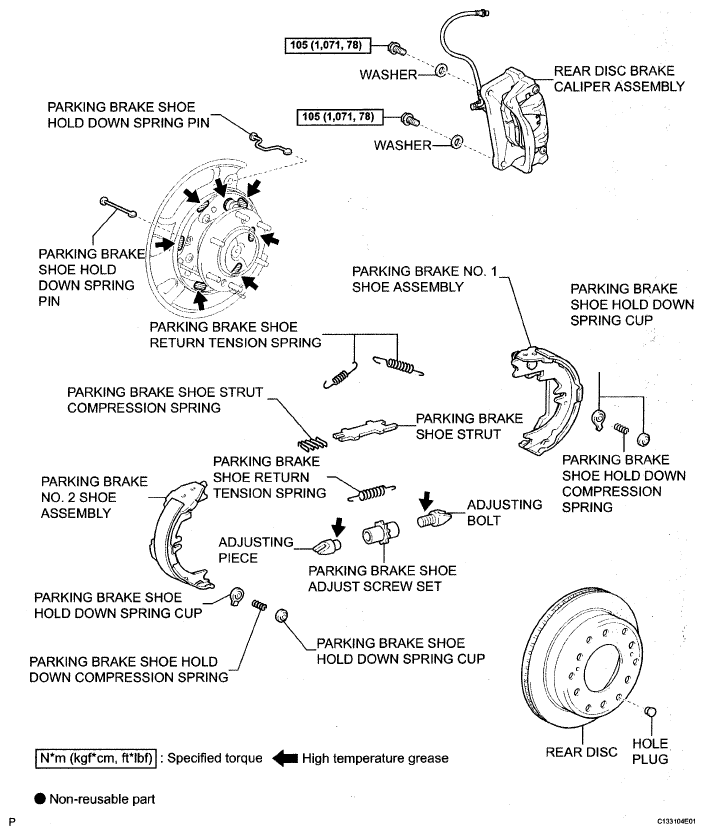

Fig 1: Rear Axle Shaft Replacement Components With Torque Specifications (1 Of 3)
G05112060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

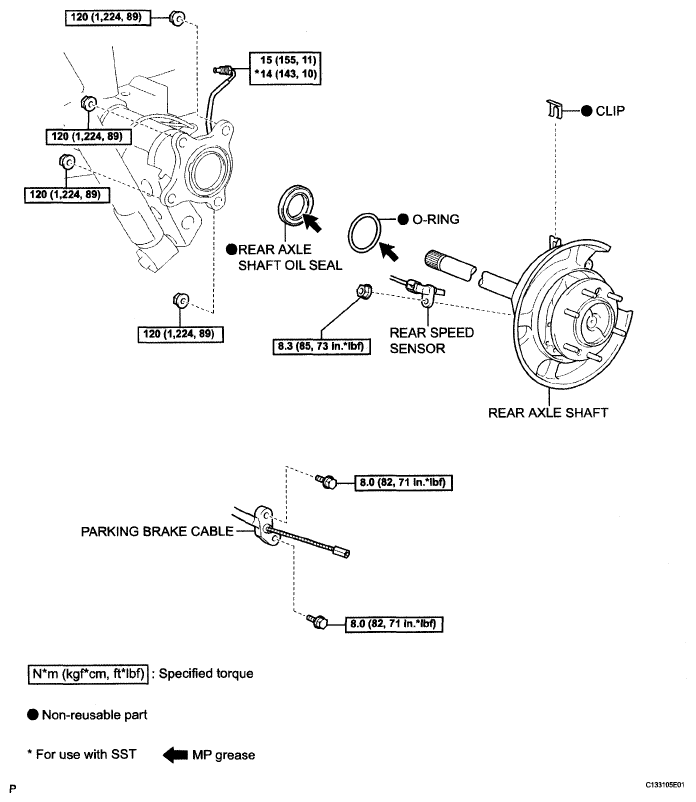

Fig 2: Rear Axle Shaft Replacement Components With Torque Specifications (2 Of 3)
G05112061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

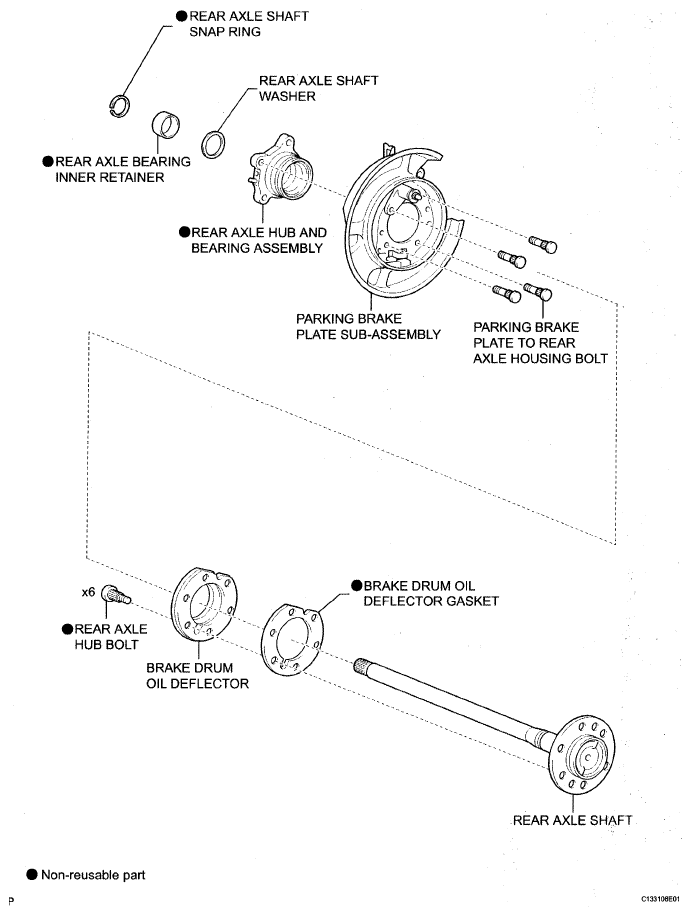

Fig 3: Identifying Rear Axle Shaft Components (3 Of 3)
G05112062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
