Front Seat Inner Belt Assembly: Components

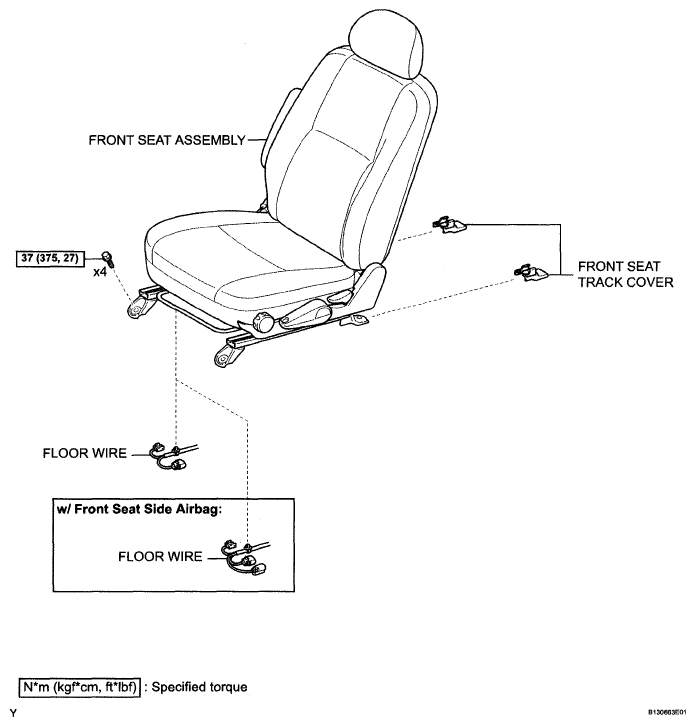

Fig 1: Identifying Front Seat Inner Belt Replacement Components With Torque Specification (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

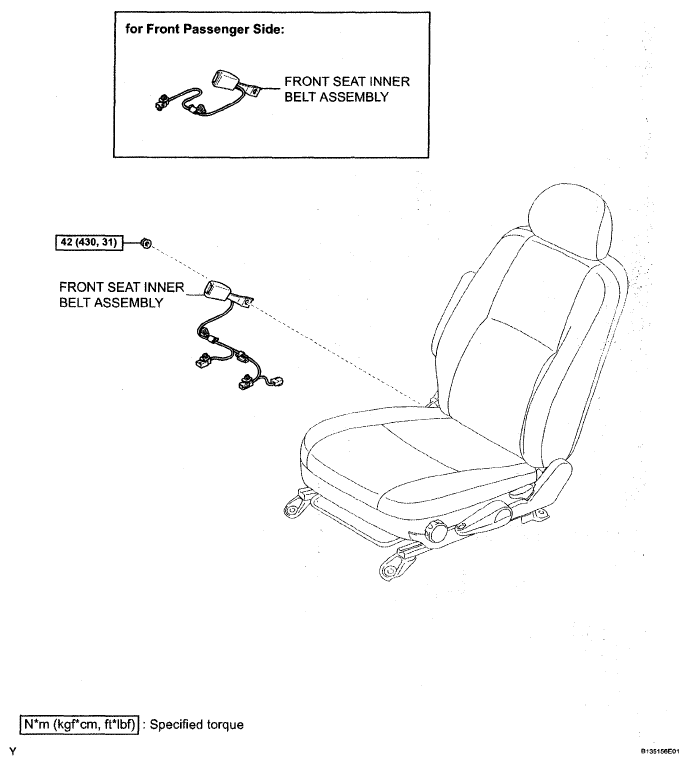

Fig 2: Identifying Front Seat Inner Belt Replacement Components With Torque Specification (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
