Power Outlet for 115V: Notes

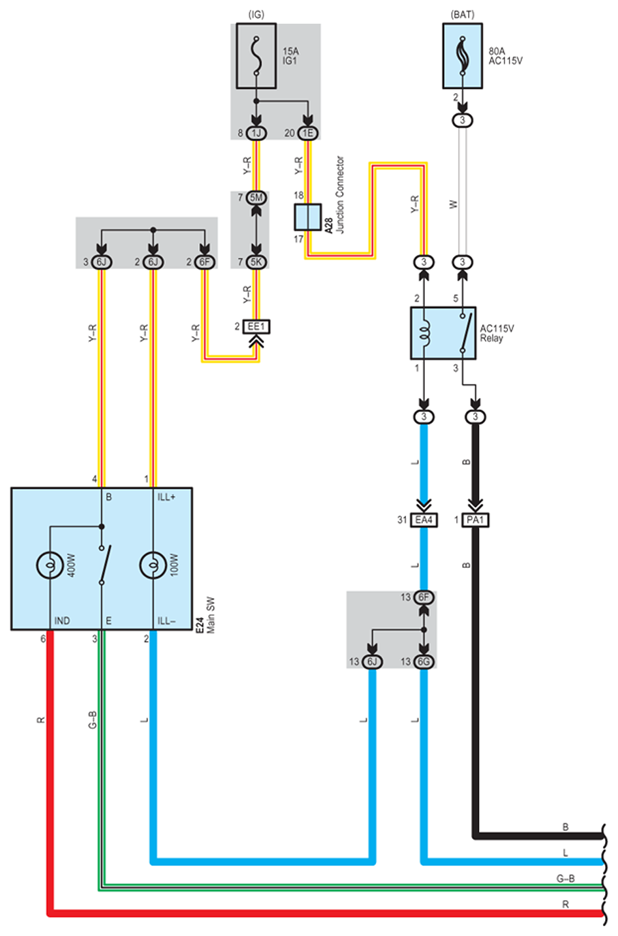

Fig 1: Power Outlet For 115V - Circuit Diagram (1 Of 3)
G07595161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

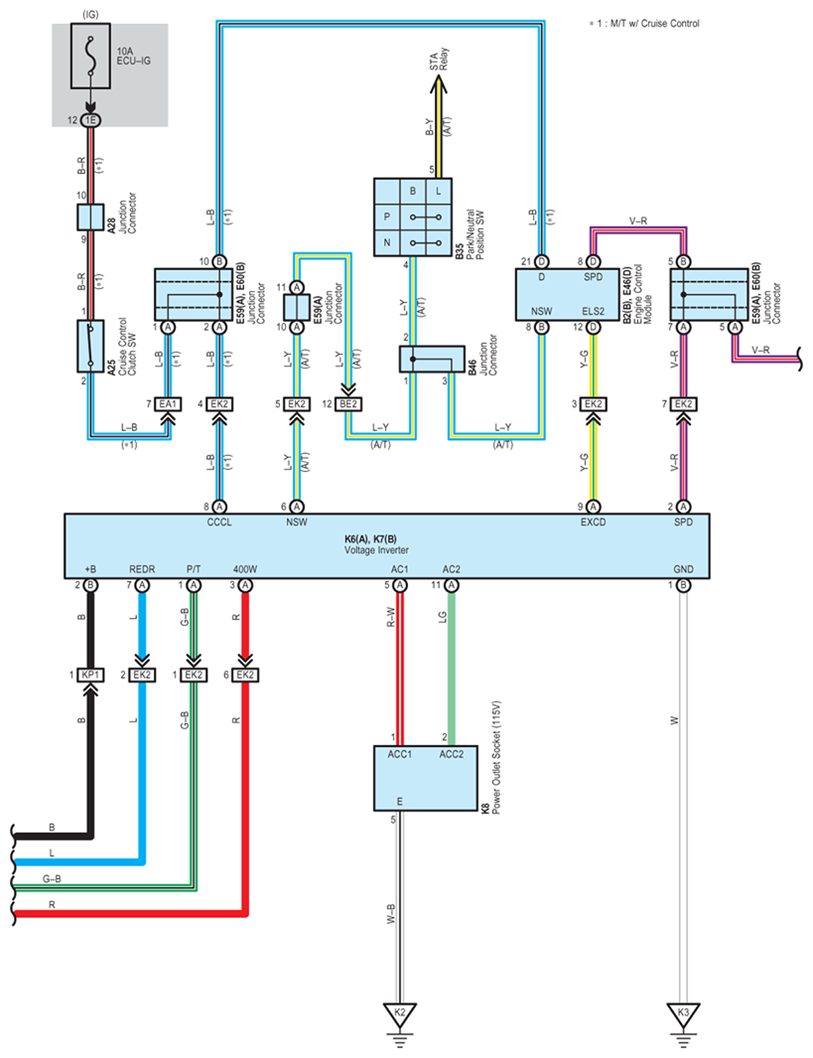

Fig 2: Power Outlet For 115V - Circuit Diagram (2 Of 3)
G07595162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

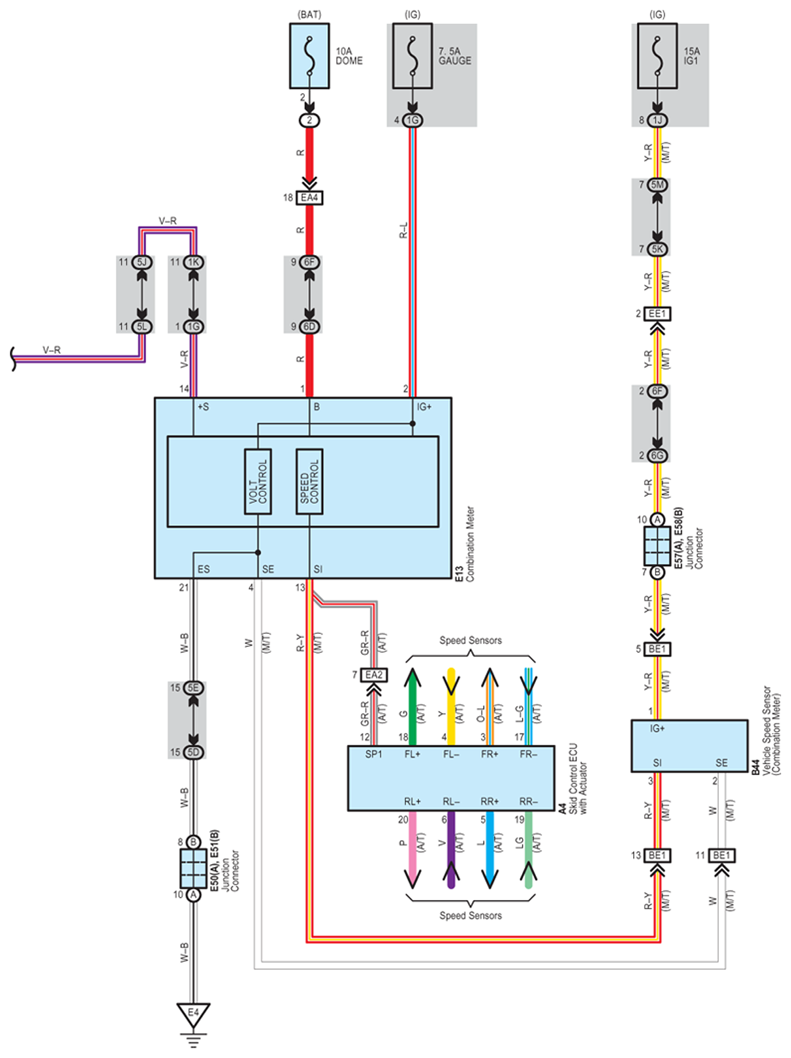

Fig 3: Power Outlet For 115V - Circuit Diagram (3 Of 3)
G07595163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
