Multiplex Communication System - CAN: Notes

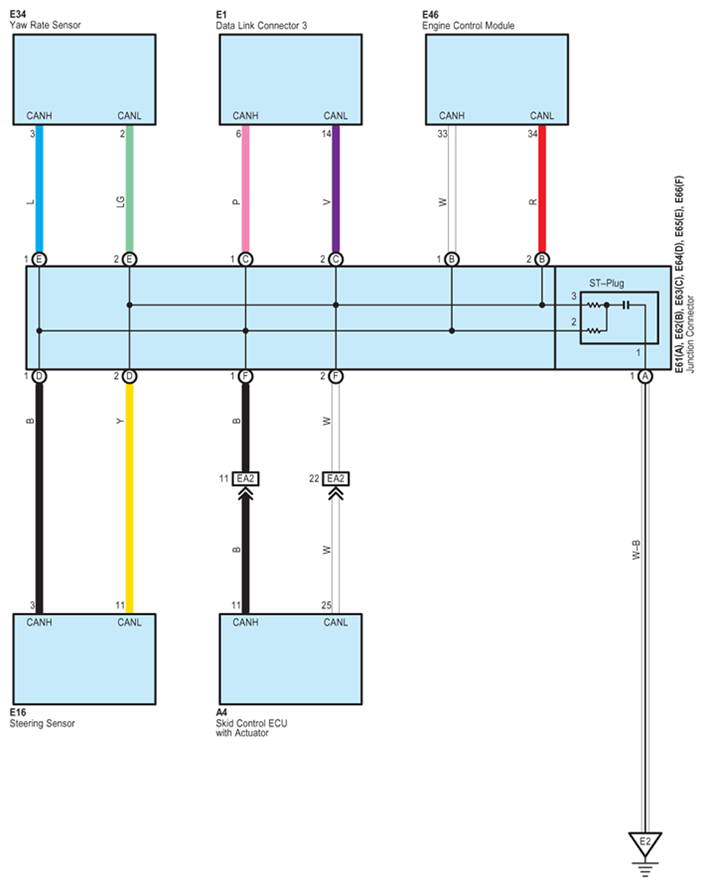

Fig 1: Multiplex Communication System (CAN) - Circuit Diagram

G07595077

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
