Electric Tension Reducer System: Notes

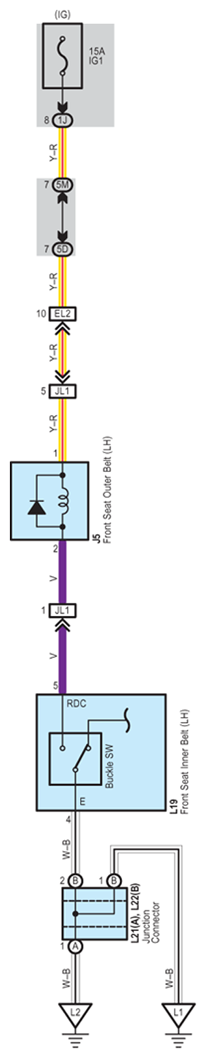

Fig 1: Electric Tension Reducer - Circuit Diagram

G07595166

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
