Soft Top: Disassembly

WARNING: This page is about a different car, the 2008 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT ROOF SIDE RAIL GARNISH
1. Remove the clip from the front side rail garnish.
2. Using a screwdriver, pry out the 4 claws by pushing the claws in the directions shown in the illustration.
  HINT:

  Tape the screwdriver tip before use.

  Fig 1: Identifying Front Roof Side Rail Garnish
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ROOF SIDE RAIL GARNISH NO. 2
1. Using a screwdriver, pry out the 2 claws by pushing the claws in the directions shown in the illustration.
  HINT:

  Tape the screwdriver tip before use.

  Fig 2: Identifying Roof Side Rail Garnish No. 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ROOF HEADER GARNISH
1. Using a tone wrench (T25), remove the 6 screws from the LH side as shown in the illustration. Then remove the 6 screws from the other side.

  Fig 3: Identifying Roof Header Garnish Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 3 claws and header panel patch from the header garnish.

  Fig 4: Identifying Claws And Header Panel Patch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the roof header garnish.
  HINT:

  Pull the tarpaulin latch from the circled area in Fig 4.
REMOVE TARPAULIN HEADLINING
1. Using a clip remover, remove the 5 clips from the tarpaulin rail.

  Fig 5: Identifying Tarpaulin Rail Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a torx wrench (T25), remove the screw.

  Fig 6: Identifying Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a clip remover, remove the clip.
4. Using a torx wrench (T25), remove the 4 screws from the LH side. Then remove the 4 screws from the other side.

  Fig 7: Identifying Tarpaulin Headlining Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Peel the tarpaulin headlining from the adhesive tape of the No. 1 tarpaulin bow.
6. Using a screwdriver, pry out the tarpaulin bows (No. 2, No. 3 and No. 4).
  HINT:

  Tape the screwdriver tip before use.

  Fig 8: Prying Out Tarpaulin Bows (No. 2, No. 3 And No. 4)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BACK WINDOW GLASS WIRE COVER

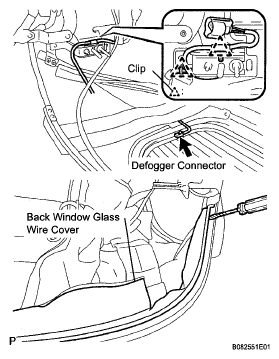

1. Using a clip remover, remove the 2 clips. Then remove the defogger connector from the back window glass side.
2. Using a screwdriver, pry out the back window glass wire cover.
  HINT:

  Tape the screwdriver tip before use.

  Fig 9: Identifying Back Window Glass Wire Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CONVERTIBLE ROOF MOTOR ASSEMBLY LH
1. Using a clip remover, remove the convertible roof motor's connector clip.
2. Using a 6 mm hexagon wrench, remove the 3 bolts and convertible roof motor.

  Fig 10: Identifying Convertible Roof Motor Assembly LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TARPAULIN COVER
1. Using a torx wrench (T25), remove the 6 screws.

  Fig 11: Removing Tarpaulin Cover Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Fold the tarpaulin rail as shown in the illustration.
  NOTE: When placing a removed tarpaulin on the ground, prevent damage to its rail by placing cushions beneath the tarpaulin.

  Fig 12: Folding Tarpaulin Rail
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

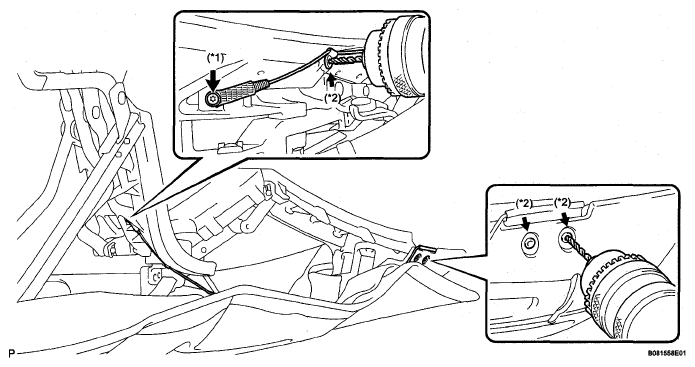

3. Using a torx wrench (T25), remove the screw under the tarpaulin rail (*1).
4. Using a drill of less than approximately ø3.35 mm (0.1319 in.), drill out the heads of the 3 rivets as shown in the illustration below (*2).

  Fig 13: Drilling Out Heads Of Rivets
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Hold the nylon strip in place with pliers or a similar tool.
  CAUTION: Do not use your hand to hold the nylon strip in place.
6. Using a drill of less than approximately ø3.35 mm (0.1319 in.), drill out the head of the rivet as shown in the illustration.

  Fig 14: Drilling Out Head Of Rivet
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Peel the tarpaulin cover from the adhesive tape of tarpaulin bows (No. 1, No. 2, No. 3 and No. 4) as shown in the illustration.

  Fig 15: Peeling Tarpaulin Cover From Adhesive Tape Of Tarpaulin Bows (No. 1, No. 2, No. 3 And No. 4)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Using a torx wrench (T25), remove the screw.

  Fig 16: Identifying Tarpaulin Cover Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. Using a clip remover, remove the staples from the tarpaulin cover and No. 5 bow.
  HINT:

  Tape the screwdriver tip before use.
10. Using a screwdriver, remove the staple and the sound pad from the tarpaulin bows (No. 2, No. 3 and No. 4).
  HINT:

  Tape the screwdriver tip before use.
REVERSE TARPAULIN RAIL ASSEMBLY
1. Reverse the tarpaulin rail on the top of the tarpaulin cover.
  NOTE: When placing a removed tarpaulin on the ground, prevent damage to its rail by placing cushions beneath the tarpaulin.

  CAUTION: Do not reverse the tarpaulin with less than 3 people.
REMOVE SIDE STAY PAD

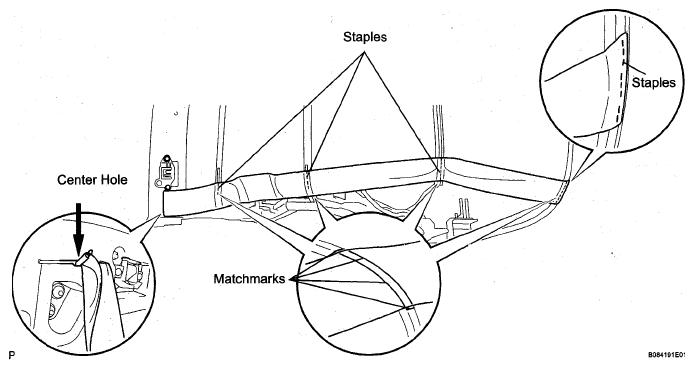

1. From the center hole, remove the side stay pad.
2. Align the matchmarks on the tarpaulin bows (No. 2, No. 3 and No. 4) and No. 5 bow.
3. Using a screwdriver, remove the staples from the side stay pad, tarpaulin bows (No. 2, No. 3 and No. 4) and No. 5 bow.

  Fig 17: Identifying Side Stay Pad Staples
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Tape the screwdriver tip before use.
REMOVE TARPAULIN REAR RAIL BOW DRAIN TROUGH
1. Using a screwdriver, remove the staples and drain trough from the No. 5 bow.
  HINT:

  Tape the screwdriver tip before use.
Fig 18: Identifying Tarpaulin Rear Rail Bow Drain Trough
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TARPAULIN BOW

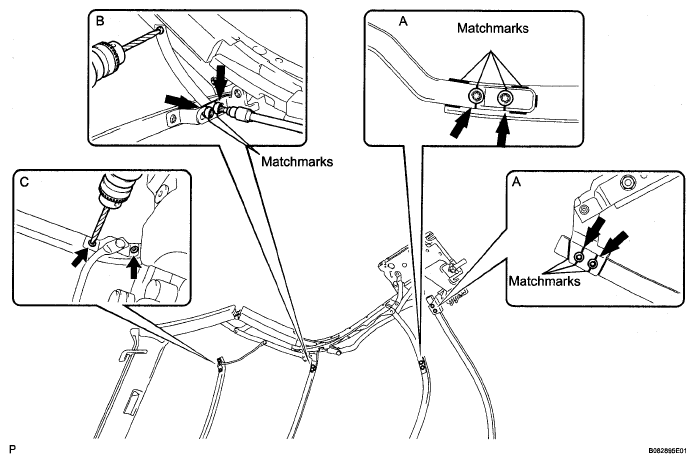

1. Align the matchmarks on the bolts and tarpaulin bows.
2. Using a torx wrench (T40), remove the 12 bolts (LH and RH) from the tarpaulin bows (No. 3 and No. 4) and No. 5 bow as shown in A and B in Fig 19 (RH bolts are not shown in the illustration).
  HINT:

  The torx wrench will not be able to reach the bolts unless the tarpaulin bow is tilted as shown in B below.
3. Using a drill, drill out the heads of the rivet from the hinge link as shown in B below.
4. Using a drill of less than ø5.1 mm (0.200 in.), drill out the heads of the 2 rivets from the No. 2 bow as shown in C below.

  Fig 19: Drilling Out Heads Of Rivets From No. 2 Bow
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Using a torx wrench (T40), remove the 2 bolts and 2 bushings from the No. 1 bow and remove the 2 bushings and 2 spacers between the No. 1 bow and tarpaulin rail.

  Fig 20: Identifying Tarpaulin Bow Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TARPAULIN LATCH
1. Using a torx wrench (T40), remove the 2 bolts from the No. 1 bow.

  Fig 21: Identifying Tarpaulin Latch Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO.1 BOW LOCATING PIN
1. Using a 13 mm socket wrench and 8 mm open end wrench, remove the nut and bow locating pin from the No. 1 bow.
Fig 22: Identifying No. 1 Bow Locating Pin Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TARPAULIN STORAGE COVER ASSEMBLY

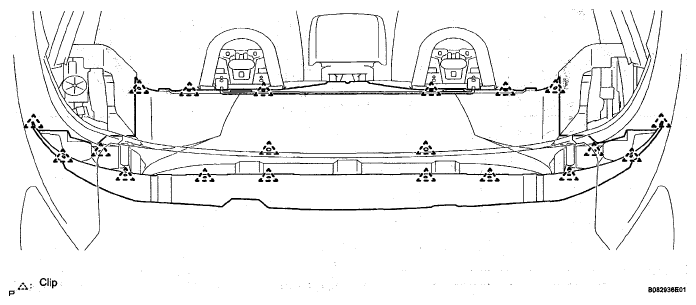

1. Using a clip remover, remove the 20 clips and storage cover.

  Fig 23: Identifying Tarpaulin Storage Cover Assembly Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TARPAULIN RAIL PIVOT BRACKET
1. Using a torx wrench (T25), remove the 2 screws and tarpaulin rail damper from the tarpaulin rear rail,

  Fig 24: Identifying Tarpaulin Rail Damper Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Align the matchmark of the lock plate.

  Fig 25: Aligning Lock Plate Matchmarks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Pull up and pry off the 3 clips (*1).
4. Strike the area of the 3 shafts where the 3 clips were installed (*2).
5. Pull up and pry off the clip (*3).
6. Strike the area of the shaft where the clip were installed (*4).
  HINT:

  Using a hammer and thin pole that is less than the diameter of the shaft (Approximately ø10 mm (0.39 in.)), strike the shaft and remove it from the other side.
7. Using a torx wrench (T40), remove the bolt, spacer, lock plate and nut (*5).
REMOVE RECLINING CONTROL LINK AND TARPAULIN REAR RAIL BOW BRACKET
1. Pull up and pry off the clip (*1).
2. Strike the area of the shaft where the clip were installed (*2).
3. Remove the 2 nuts and rear rail bow bracket (*3).

  Fig 26: Identifying Reclining Control Link And Tarpaulin Rear Rail Bow Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SEPARATE TARPAULIN RAIL ASSEMBLY
HINT:

The disassembly of the 2 circled areas are shown below.

Fig 27: Identifying Circled Areas
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Separate the rear tarpaulin rail and the center tarpaulin rail.
  1. Using a torx wrench (T40), remove the 2 bolts from the rear tarpaulin rail (*1).
  2. Pull up and pry off the clip (*2).
  3. Remove the shaft between the rear tarpaulin rail assembly and center tarpaulin rail (*3).

    Fig 28: Identifying Rear Tarpaulin Rail And Center Tarpaulin Rail
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Separate the center rail and front tarpaulin rail.
  1. Pull up and pry off the 3 clips.
  2. Remove the 3 shafts between the center tarpaulin rail and front tarpaulin rail.

    Fig 29: Identifying Center Rail And Front Tarpaulin Rail Clips
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RUBBER BUMPER
1. Using a clip remover, remove the rubber and clip.

  Fig 30: Identifying Rubber And Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
