Steering Pad Switch: Inspection

WARNING: This page is about a different car, the 2008 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT STEERING PAD SWITCH
    1. Disconnect the steering pad switch connector.

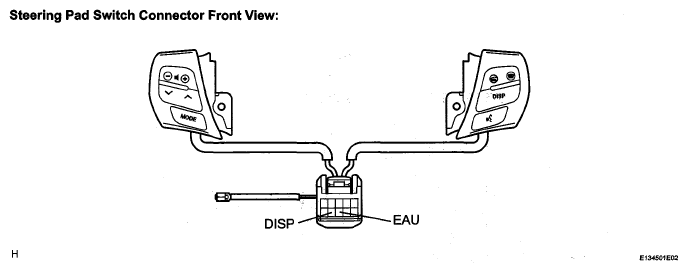

      Fig 1: Identifying Steering Pad Switch Connector
      G05132315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      STANDARD RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      DISP - EAU DISP switch is not pushed in. 10 kΩ or higher
      DISP - EAU DISP switch is pushed in. Below 1 Ω

      HINT:

      If the value is not as specified, replace the steering pad switch.
