Instrument Panel Safety Pad: Components

WARNING: This page is about a different car, the 2008 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

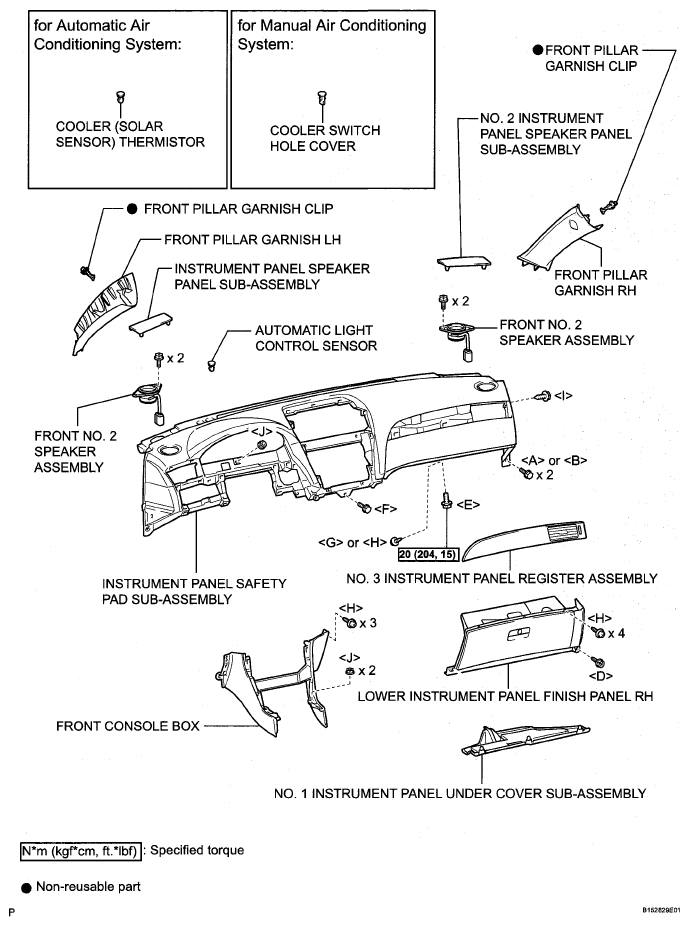

Fig 1: Identifying Instrument Panel Safety Pad Replacement Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

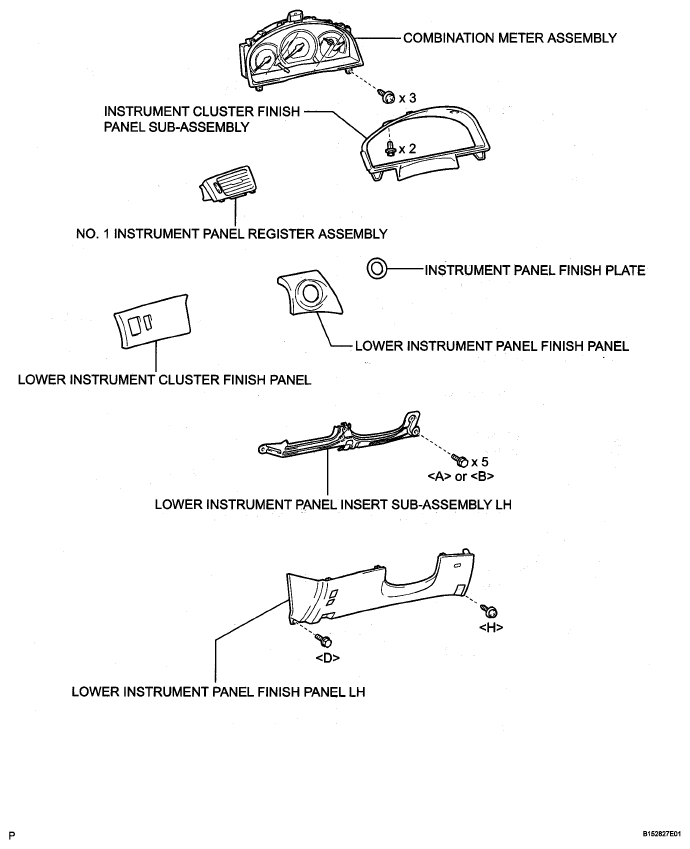

Fig 2: Identifying Instrument Panel Safety Pad Replacement Components (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

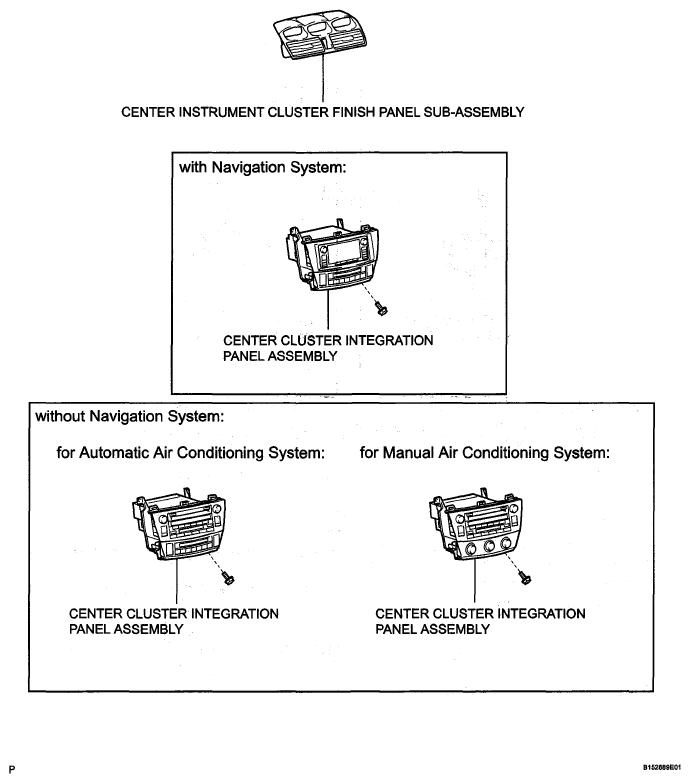

Fig 3: Identifying Instrument Panel Safety Pad Replacement Components (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

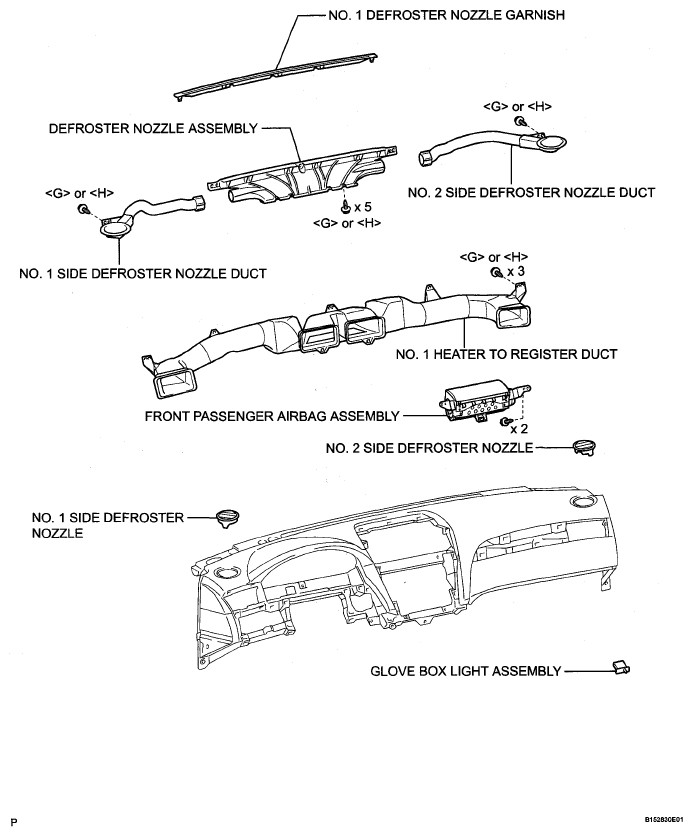

Fig 4: Identifying Instrument Panel Safety Pad Replacement Components (4 Of 6)

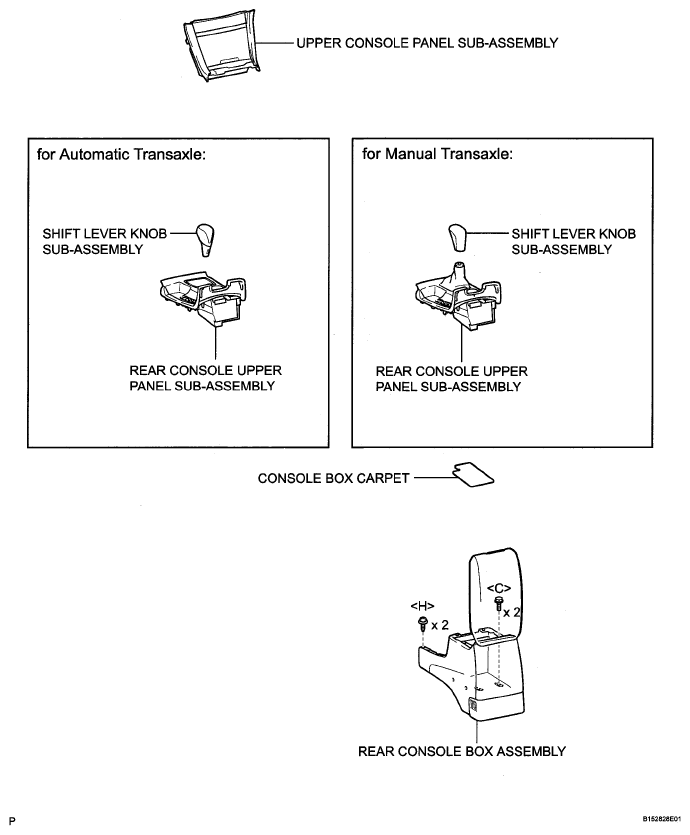

Fig 5: Identifying Instrument Panel Safety Pad Replacement Components With Torque Specifications (5 Of 6)

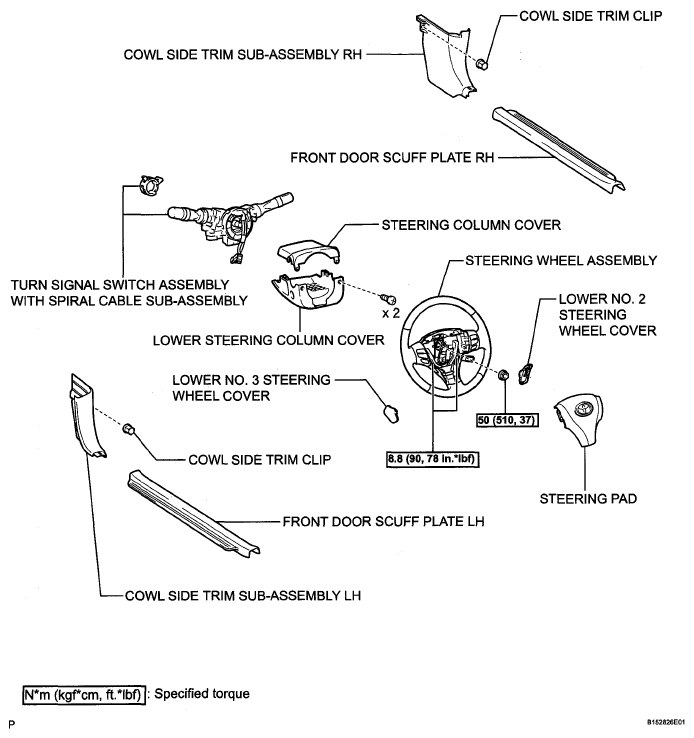

Fig 6: Identifying Instrument Panel Safety Pad Replacement Components (6 Of 6)
