Refrigerant Line: Components

WARNING: This page is about a different car, the 2008 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

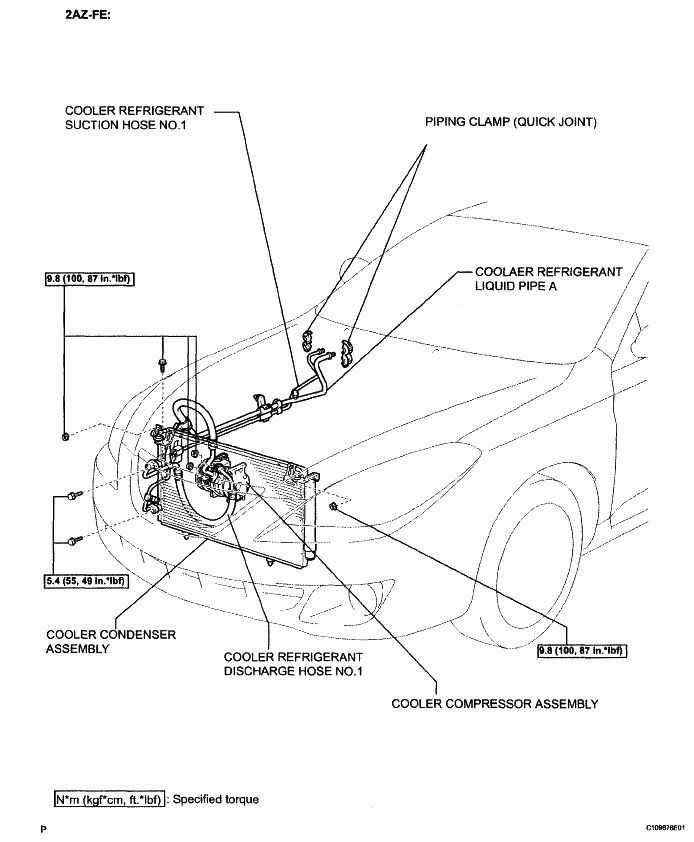

Fig 1: Refrigerant Line Replacement Components With Torque Specifications (2AZ-FE)
G05131237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

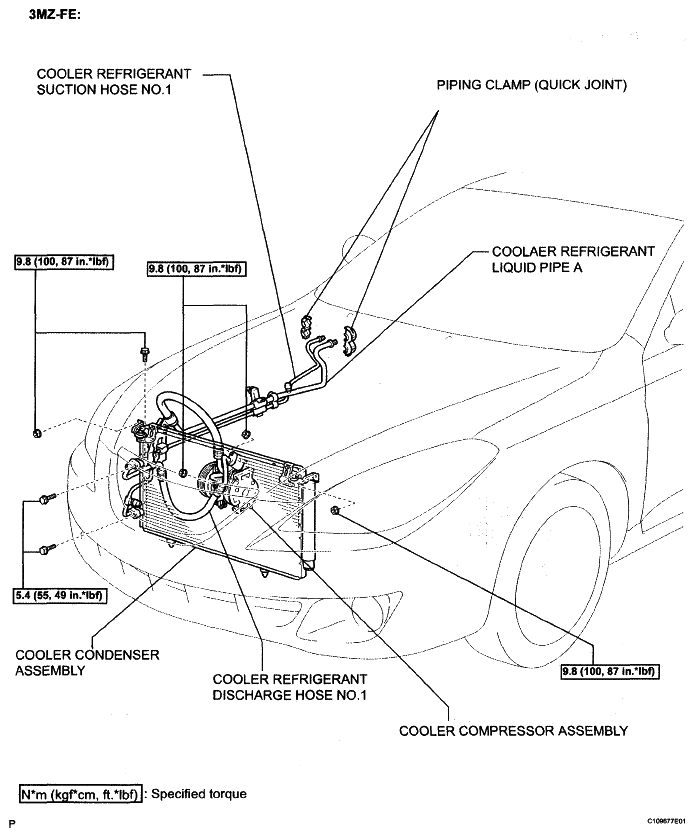

Fig 2: Refrigerant Line Replacement Components With Torque Specifications (3MZ-FE)
G05131238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
