Blower Unit: Installation

WARNING: This page is about a different car, the 2008 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL BLOWER ASSEMBLY
1. Install the blower assembly with the 2 screws and 2 nuts.
  Torque: Nut

  1.5 N*m (15 kgf*cm, 12 in.*lbf)

  Fig 1: Identifying Blower Assembly Screws And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Manual A/C model:
  Install the clamp and connect the 4 connectors.
3. Auto A/C model:
  Install the clamp and connect the 3 connectors.

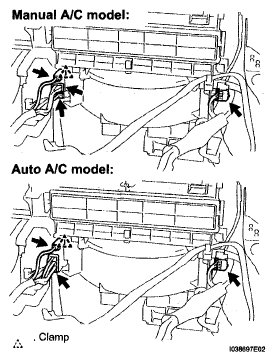

  Fig 2: Locating Connectors And Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. w/ stereo component amplifier assembly: Install the 2 wire harness clamps.

  Fig 3: Locating Wire Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the 5 wire harness clamps.

  Fig 4: Identifying Wire Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Install the blower connector holder with the screw and clamp.

  Fig 5: Identifying Blower Connector Holder With Screw And Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Connect the connectors.
INSTALL INSTRUMENT PANEL SAFETY PAD
HINT:

See INSTALLATION
