Blower Unit: Components

WARNING: This page is about a different car, the 2008 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

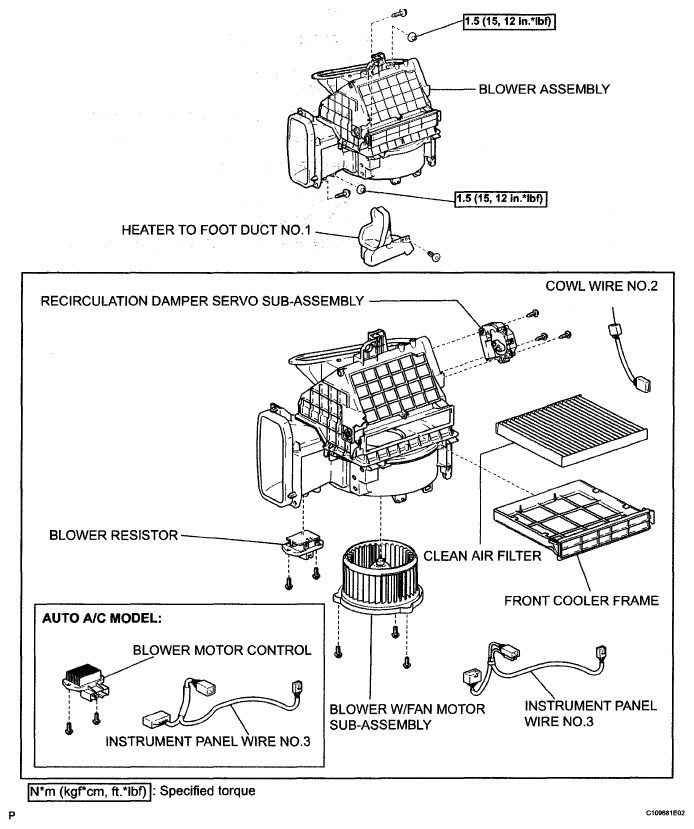

Fig 1: Blower Unit Components With Torque Specifications
G05131314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
