Air Conditioning Unit: Components

WARNING: This page is about a different car, the 2008 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

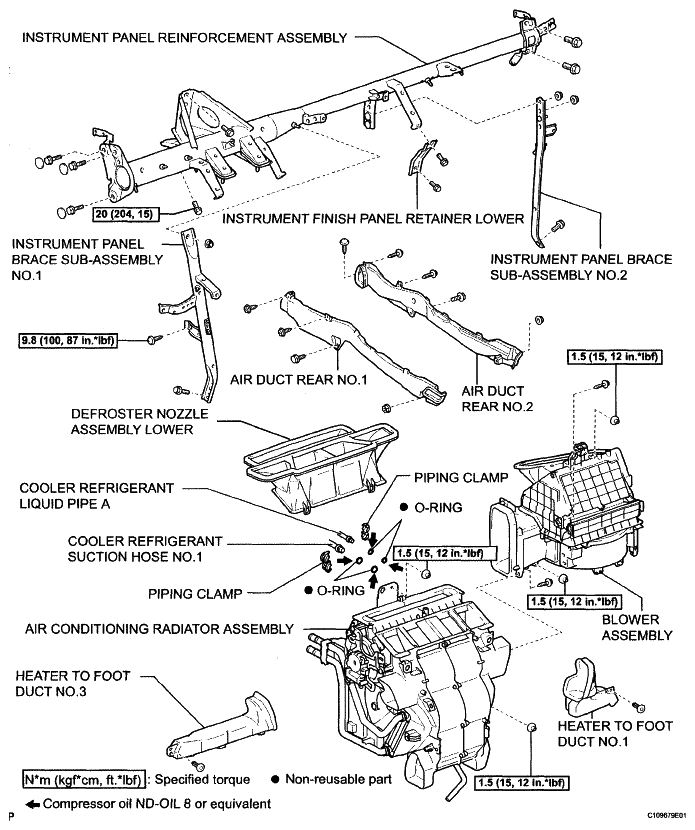

Fig 1: Air Conditioning Unit Replacement Components With Torque Specifications (1 Of 2)
G05131239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

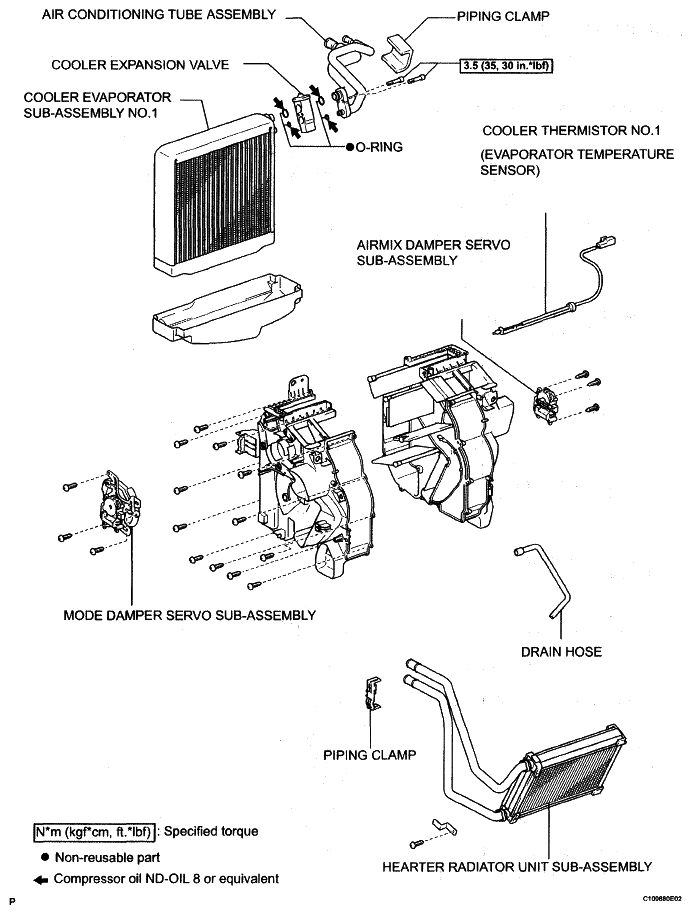

Fig 2: Air Conditioning Unit Replacement Components With Torque Specification (2 Of 2)
G05131240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
